CISCO881-SEC-K9 Cisco Router

Add to Wishlist
Model: CISCO881-SEC-K9 Cisco Router
Detail:
Cisco 881 Ethernet Sec Router w/ Adv IP Services
Product Code CISCO881-SEC-K9
Bundle Security Function
Rack Units 1 RU
WAN Ports 1 x 10Base-T/100Base-TX – RJ-45
LAN Ports 4 x 10Base-T/100Base-TX – RJ-45
Management Ports 1 x console – RJ-45
USB 1 x 4 PIN USB Type A
DRAM 256 MB (installed) / 768 MB (max)
Flash Memory 128 MB
Dimensions 32.5 cm x 24.9 cm x 4.4 cm
Package Weight 4.84 Kg

AED3,999.00

Add to Wishlist

The 10/100-Mbps fast Ethernet models of the Cisco 881 Integrated Services Routers combine Internet access, security and wireless services onto a single, secure device. This router offers broadband speeds and simplified management to small businesses, and enterprise small branch and teleworkers. CISCO881-SEC-K9 is the CISCO881-K9 bundle security function, supporting Security Cisco IOS Firewall, IPS, IPsec (3DES and AES), SSL VPN and IP BaseEntry-Level Cisco IOS Software Function.

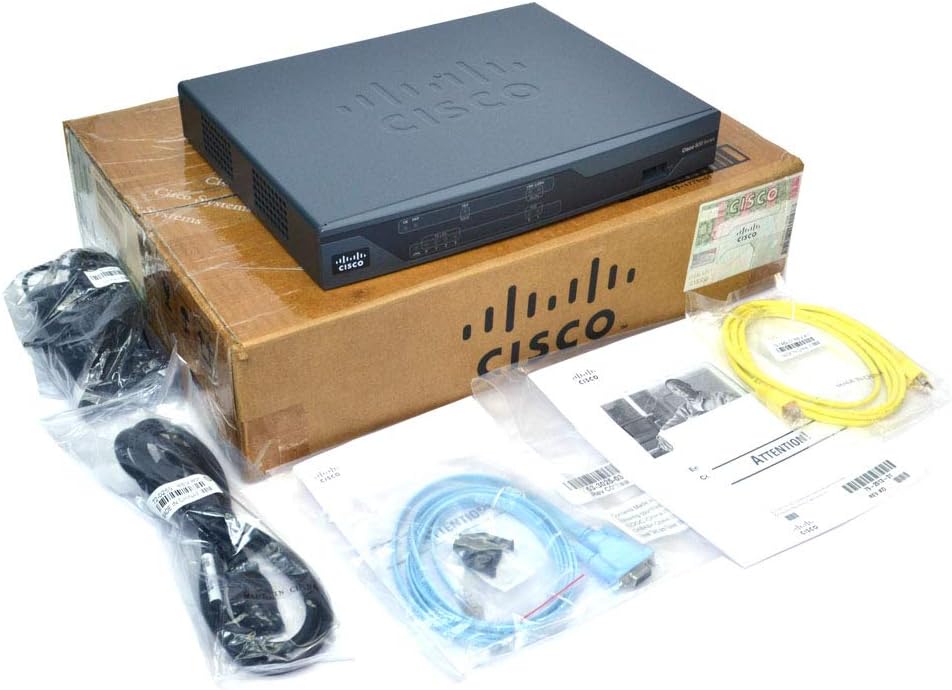

Figure 1 shows the appearance of CISCO881-SEC-k9.

CISCO881-SC-K9 Appearance

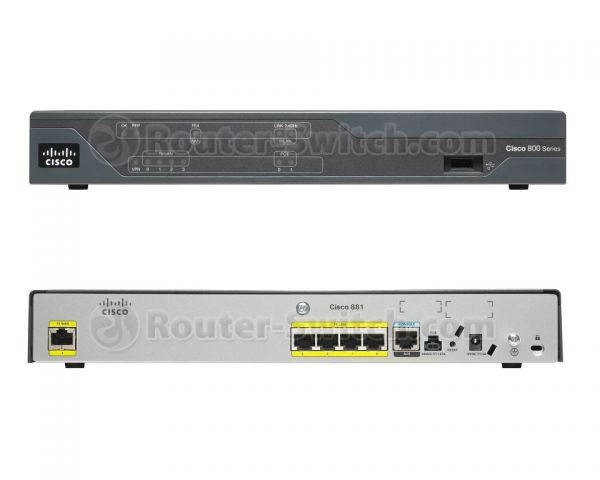

Figure 2 shows the front panel of CISCO881-SEC-K9.

CISCO881-SEC-K9 Front Panel

Note:

ā‘  LED Area
ā‘” USB Port for External Device

If you need 3G wireless WAN option provided, Cisco 881G series would have a 3G card left beside the USB port, meeting your need.

Figure 3 shows the back panel of CISCO881-SEC-K9.

CISCO881-SEC-K9 Back Panel

Note:

ā‘  WAN: 1 x 10Base-T/100Base-TX – RJ-45 ā‘¤ Reset Button
ā‘” LAN: 4 x 10Base-T/100Base-TX – RJ-45 ā‘„ Power Connector
ā‘¢ Management: 1 x console – RJ45 ā‘¦ Security Cable Lock
ā‘£ USB: 1 x 4 PIN USB Type A ā‘§ Power over Ethernet(Factory Option)

Ā· Four-port 10/100 Fast Ethernet managed switch with VLAN support; two ports support Power over Ethernet (PoE) for powering IP phones or external access points
Ā· Secure 802.11g/n access-point option based on draft 802.11n standard with support for autonomous or Cisco Unified WLAN architectures
Ā· CON/AUX port for console or external modem
Ā· One USB 1.1 port for security eToken credentials, booting from USB, and loading configuration

Figure 4 shows the security bundle.

Security Bundle Functions

The Accessories

Table 2 shows the recommended accessories of CISCO881-SEC-K9

Items Description
CAB-AC= CAB-AC= AC Power Cord (North America), C13, NEMA 5-15P, 2.1m
CAB-ETH-S-RJ45 Cisco Router Cable CAB-ETH-S-RJ45

Compare to Similar Item

Table 3 shows the comparison between CISCO881-K9 and CISCO881-SEC-K9.

Models CISCO881-SEC-K9 CISCO881-K9
Product Type Router – 4-port switch (integrated) Router – 4-port switch (integrated)
Bundle Security Bundle N/A
DRAM 256 MB (installed) / 768 MB (max) 256 MB (installed) / 768 MB (max)
Flash Memory 128 MB 128 MB
Category:

CISCO881-SEC-K9 Specification

Manufacturer

Cisco Systems, Inc

Manufacturer Part Number

CISCO881-SEC-K9

Product Type

Router – 4-port switch (integrated)

Form Factor

Desktop

Connectivity Technology

Wired

Data Link Protocol

Ethernet, Fast Ethernet

Capacity

IPSec VPN tunnels : 20

Network / Transport Protocol

L2TP, IPSec, FTP, DHCP, DNS, L2TPv3, DDNS

Routing Protocol

OSPF, RIP-1, RIP-2, BGP, EIGRP, HSRP, VRRP, NHRP, PIM-SM, GRE

Remote Management Protocol

Telnet, SNMP 3, HTTP, HTTPS, SSH

Encryption Algorithm

LEAP, DES, Triple DES, SSL, PEAP, TKIP, PKI, 128-bit AES, 192-bit AES, 256-bit AES

Authentication Method

RADIUS, TACACS+

Features

NAT support, VPN support, load balancing, VLAN support, auto-uplink (auto MDI/MDI-X), IGMP snooping, traffic shaping, Stateful Packet Inspection (SPI), content filtering, DiffServ support, MAC address filtering, IPv6 support, High Availability, Intrusion Prevention System (IPS), URL filtering, Stateful Failover, Class-Based Weighted Fair Queuing (CBWFQ), Weighted Fair Queuing (WFQ), Spanning Tree Protocol (STP) support, Access Control List (ACL) support, Quality of Service (QoS), Link Fragmentation and Interleaving (LFI), Dynamic Multipoint VPN (DMVPN), WAN failover, DHCP server, Virtual Route Forwarding-Lite (VRF-Lite), DNS proxy, Bidirectional Forwarding Detection (BFD)

Compliant Standards

IEEE 802.1D, IEEE 802.1Q, IEEE 802.1x

DRAM Memory

256 MB (installed) / 768 MB (max)

Flash Memory

128 MB

LED Status Lights Indicators

Port status, power

Connectivity Slots

Router Interfaces

LAN : 4 x 10Base-T/100Base-TX – RJ-45
Management : 1 x console – RJ-45
WAN : 1 x 10Base-T/100Base-TX – RJ-45
USB : 1 x 4 PIN USB Type A

Power Supply

Power Device

Power adapter – external – 60 Watt

Voltage Required

AC 120/230 V ( 50/60 Hz )

Dimensions / Weight / Miscellaneous

Width

32.5 cm

Depth

24.9 cm

Height

4.4 cm

Weight

2.5 kg

Compliant Standards

CISPR 24, EN 61000-3-2, EN55022, ICES-003, EN 61000-3-3, EN55024, CISPR 22, EN50082-1, EN55022 Class B, ICES-003 Class B, EN 61000-6-1, AS/NZ 3548 Class B, EN 60555-2, FCC CFR47 Part 15, EN300-386, FCC CFR47 Part 15 B, VCCI V-3

System Software

IOS Software Included

Cisco IOS Advanced IP Service
