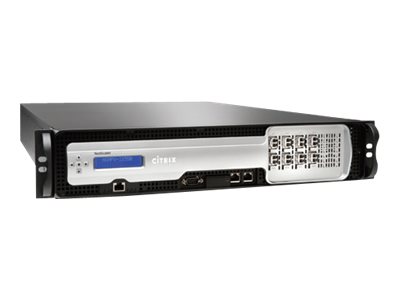

Citrix ADC MPX 8905 – Platinum Edition – load balancing device

Add to Wishlist

Tech overview

Citrix ADC MPX 8905 – Platinum Edition – load balancing device – 10 GigE – front to back airflow – 1U – Citrix Enterprise License Program (ELA) (Level 1) – rack-mountable

AED285,599.00

Add to Wishlist

NetScaler is the advanced web and application delivery controller that maximizes the performance and availability of all applications and data, and also provide secure remote access to any application from any device type.

SKU: 3016981-E1 Category: Tag:
Specifications
General
Device Type Load balancing device
Height (Rack Units) 1U
Built-in Devices Status LCD, keypad
Width 19 in
Depth 24 in
Height 1.8 in
Weight 24.91 lbs
Processor / Memory / Storage
RAM 32 GB
Hard Drive SSD 240 GB x 1
Networking
Form Factor Rack-mountable
Airflow Direction Front to back airflow
Connectivity Technology Wired
Data Link Protocol Ethernet, Fast Ethernet, Gigabit Ethernet, 10 Gigabit Ethernet
Switching Protocol Ethernet
Network / Transport Protocol TCP/IP, UDP/IP, ICMP/IP, FTP, DNS
Routing Protocol OSPF, IS-IS, RIP-1, RIP-2, BGP, VRRP, static IP routing, ECMP
Remote Management Protocol SNMP 1, SNMP 2, Telnet, SNMP 3, HTTP, HTTPS, SSH, CLI
Performance
Throughput 5 Gbps
SSL throughput 5 Gbps
Compression throughput 2.5 Gbps
Capacity
Concurrent SSL VPN users 10000
HTTP requests per second 990000
SSL transactions per second (2048 certificate) 8000
ECDHE transactions per second 4000
Features
Firewall protection, NAT support, layer 7 switching, LDAP support, OCSP support, VLAN support, DoS attack prevention, content filtering, packet filtering, port mirroring, manageable, IPv6 support, High Availability, VRRP support, ACL support, RDP support, RADIUS support, SSH support, layer 4 load balancing, SSL acceleration, DNS proxy, ECMP, IPv4 support, GSLB, LACP, NetFlow, DNS authoritative, MIB, IPFIX
Encryption Algorithm Triple DES, RC4, SSL
Authentication Method SSH, RADIUS, TACACS+, LDAP, Active Directory, NTLM
Compliant Standards IEEE 802.1Q, IEEE 802.3ad (LACP), EIA-310-D, CSA, UL, VCCI, C-Tick, DOC, RoHS, WEEE, FCC Part 15 A, DIN 41494, IEC 60297-3-100, TUV C
Expansion / Connectivity
Interfaces 6 x 1000Base-T – RJ-45 Ā¦ 4 x 10GBase-X – SFP+ Ā¦ 1 x 1000Base-T (management) – RJ-45 Ā¦ 1 x management (Lights-Out) – RJ-45 Ā¦ 1 x RS-232 – DB-9 Ā¦ 2 x USB – Type A
Miscellaneous
Compliant Standards EIA-310-D, CSA, UL, VCCI, C-Tick, DOC, RoHS, WEEE, FCC Part 15 A, DIN 41494, IEC 60297-3-100, TUV C
Pricing Type Citrix Enterprise License Program (ELA) (Level 1)
Power
Power Device Internal power supply
Installed Qty 1
Max Supported Qty 2
Power Redundancy Optional
Voltage Required AC 120/230 V (50/60 Hz)
Power Consumption Operational 336 Watt
Power Provided 300 Watt
Environmental Parameters
Min Operating Temperature 32 Ā°F
Max Operating Temperature 113 Ā°F
Humidity Range Operating 5 – 95% (non-condensing)
