The Citrix NetScaler MPX 8920 is targeted at customers that require SSL/TPS capabilities especially with ECDHE, and a low- to mid-range throughput requirement.
Routers

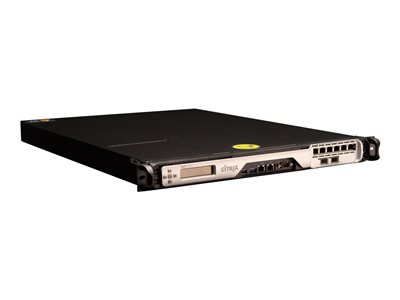

Citrix ADC MPX 8920 – Platinum Edition – load balancing device – TAA Compliant
Tech overview
Citrix ADC MPX 8920 – Platinum Edition – load balancing device – 10 GigE – 1U – Citrix Enterprise License Program (ELA) (Level 1) – rack-mountable – TAA Compliant
380,799.00 د.إ
Specifications | |
---|---|
General | |
Device Type | Load balancing device |
Height (Rack Units) | 1U |
Built-in Devices | Status LCD, keypad |
Width | 19 in |
Depth | 24 in |
Weight | 24.91 lbs |
Processor / Memory / Storage | |
RAM | 32 GB |
Hard Drive | SSD 240 GB x 1 |
Networking | |
Form Factor | Rack-mountable |
Connectivity Technology | Wired |
Data Link Protocol | Ethernet, Fast Ethernet, Gigabit Ethernet, 10 Gigabit Ethernet |
Switching Protocol | Ethernet |
Network / Transport Protocol | TCP/IP, PPTP, UDP/IP, ICMP/IP, FTP, DNS |
Routing Protocol | OSPF, IS-IS, RIP-1, RIP-2, BGP, VRRP, static IP routing, GRE, ECMP |
Remote Management Protocol | SNMP 1, SNMP 2, Telnet, SNMP 3, HTTP, HTTPS, SSH, CLI |
Performance | |
Layer 7 throughput | 20 Gbps |
SSL throughput | 20 Gbps |
Compression throughput | 4 Gbps |
Capacity | |
Concurrent SSL VPN users | 10000 |
Layer 7 requests per second | 1700000 |
SSL transactions per second (2048 certificate) | 22000 |
ECDHE transactions per second | 10000 |
Features | NAT support, VPN support, load balancing, layer 7 switching, LDAP support, OCSP support, VLAN support, DoS attack prevention, packet filtering, port mirroring, manageable, IPv6 support, High Availability, Virtual Route Redundancy Protocol (VRRP) support, Access Control List (ACL) support, RADIUS support, SSH support, layer 4 load balancing, DNS proxy, Equal-Cost Multipath (ECMP), IPv4 support, Global Server Load Balancing (GSLB), Link Aggregation Control Protocol (LACP), NetFlow, DNS authoritative, Management Information Base (MIB), IPFIX, Management Information Base (MIB) II |
Encryption Algorithm | SSL |
Authentication Method | Secure Shell (SSH), RADIUS, TACACS+, LDAP, Active Directory, NTLM |
Compliant Standards | IEEE 802.1Q, IEEE 802.3ad (LACP) |
Expansion / Connectivity | |
Interfaces | 6 x 1000Base-T – RJ-45, 4 x 10GBase-X – SFP+, 1 x 1000Base-T (management) – RJ-45, 1 x management (Lights-Out) – RJ-45, 1 x console – DB-9, 2 x USB – Type A |
Miscellaneous | |
Compliant Standards | CSA, VCCI, NOM, CCC, FCC, RoHS, KCC, WEEE, REACH, EAC, CITC, RCM, BIS, ICASA |
Pricing Type | Citrix Enterprise License Program (ELA) (Level 1) |
TAA Compliant | Yes |
Power | |
Power Device | Internal power supply |
Installed Qty | 1 |
Max Supported Qty | 2 |
Power Redundancy | Optional |
Voltage Required | AC 120/230 V (50/60 Hz) |
Power Consumption Operational | 336 Watt |
Environmental Parameters | |
Min Operating Temperature | 32 °F |
Max Operating Temperature | 113 °F |
Humidity Range Operating | 5 – 95% (non-condensing) |
