Citrix NetScaler MPX 15030 – Platinum Edition – load balancing device

Add to Wishlist

Tech overview

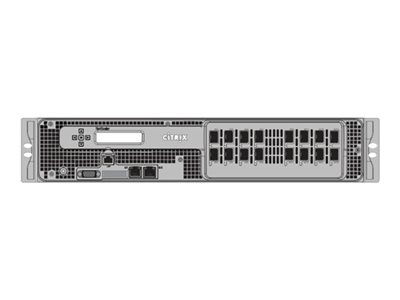

Citrix NetScaler MPX 15030 – Platinum Edition – load balancing device – 25 Gigabit LAN – front to back airflow – 2U – Citrix Enterprise License Program (ELA) (Level 6) – rack-mountable

AED310,599.00

Add to Wishlist

Citrix NetScaler MPX appliances are high performance, hardware-based solutions that provide industry-leading web application delivery and load balancing, as well as enabling a full service delivery fabric that spans enterprise datacenters and cloud infrastructures to make applications and cloud services run five times better. All NetScaler MPX appliances support Citrix nCore technology, which enables customers to tap the power of multi-core CPU systems to realize multi-gigabit performance and massive scalability for all application delivery workloads. Flexible pay-as-you-grow licensing helps customers protect their investment, avoid costly hardware upgrades and reduce overall TCO. NetScaler MPX appliances support small enterprises, massive global web sites and everything in between.

SKU: 3023765-E6 Category: Tag:
Specifications Details
General
Device Type Load balancing device
Height (Rack Units) 2U
Built-in Devices Status LCD, keypad, RAID controller
Depth 28 in
Weight 59.97 lbs
Processor / Memory / Storage
RAM 128 GB
Hard Drive SSD 480 GB x 2
Networking
Form Factor Rack-mountable
Airflow Direction Front to back airflow
Connectivity Technology Wired
Data Link Protocol 25 Gigabit Ethernet
Network / Transport Protocol TCP/IP, PPTP, UDP/IP, ICMP/IP, FTP, DNS, RTSP
Routing Protocol OSPF, IS-IS, RIP-1, RIP-2, BGP, VRRP, static IP routing, ECMP
Remote Management Protocol SNMP 1, SNMP 2, Telnet, SNMP 3, HTTP, HTTPS, SSH, CLI
Performance
Layer 7 throughput 30 Gbps
Request rate (layer 7) 2800000 requests per second
Compression throughput 7.2 Gbps
SSL throughput (2k key) 42000 transactions per second
ECDHE 20000 transactions per second
SSL throughput 30 Gbps
Capacity
Concurrent SSL VPN users 20000
Features Firewall protection, NAT support, VPN support, layer 7 switching, LDAP support, OCSP support, VLAN support, DoS attack prevention, content filtering, packet filtering, manageable, IPv6 support, High Availability, Virtual Route Redundancy Protocol (VRRP) support, Access Control List (ACL) support, Remote Desktop Protocol (RDP) support, RADIUS support, SSH support, layer 4 load balancing, SSL acceleration, DNS proxy, Equal-Cost Multipath (ECMP), IPv4 support, Global Server Load Balancing (GSLB), Link Aggregation Control Protocol (LACP), NetFlow, DNS authoritative, Management Information Base (MIB), IPFIX, Management Information Base (MIB) II, Carrier Grade NAT (CGN/CGNAT)
Encryption Algorithm SSL
Authentication Method Secure Shell (SSH), RADIUS, TACACS+, LDAP, Active Directory, NTLM
Compliant Standards IEEE 802.1Q, IEEE 802.3ad (LACP)
Expansion / Connectivity
Interfaces 16 x 25Gb Ethernet – SFP28, 1 x console – DB-9, 2 x 1000Base-T (management) – RJ-45, 1 x management (Lights-Out) – RJ-45
Miscellaneous
Compliant Standards EIA-310-D, EN55022, NOM, EN55024, AS/NZS 60950-1, MOC, RoHS, NTRA, UL 60950-1 Second Edition, WEEE, FCC Part 15 A, ANATEL, REACH, IEC 60950-1 Second Edition, EAC, CITC, ICASA, CSA 60950-1 Second Edition
Pricing Type Citrix Enterprise License Program (ELA) (Level 6)
Power
Power Device Internal power supply – hot-plug
Installed Qty 2
Max Supported Qty 2
Power Redundancy Yes
Voltage Required AC 120/230 V (50/60 Hz)
Power Consumption Operational 310 Watt
Power Provided 1000 Watt
Environmental Parameters
Min Operating Temperature 32 Ā°F
Max Operating Temperature 113 Ā°F
Humidity Range Operating 5 – 95% (non-condensing)
