Citrix NetScaler SD-WAN 5100-3000-SE – Cold Spare – load balancing device
Tech overview

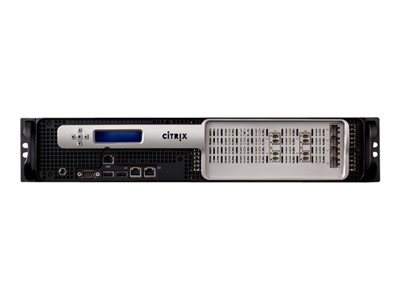

Citrix NetScaler SD-WAN 5100-3000-SE – Cold Spare – load balancing device – 10 GigE – 2U – rack-mountable
AED190,399.00
NetScaler is the leading web application delivery solution, and maximizes the performance and availability of all applications and data.
| Specifications | Details |
|---|
| General |
| Device Type | Load balancing device |
| Height (Rack Units) | 2U |
| Depth | 25.4 in |
| Height | 3.5 in |
| Weight | 48.94 lbs |
| Processor / Memory / Storage |
| Processors Installed | 2 x X5680 |
| Max Supported Qty | 2 |
| RAM | 96 GB |
| Hard Drive | SSD 600 GB x 6 |
| Hard Drive (2nd) | HDD – 1 TB x 1 |
| Networking |
| Form Factor | Rack-mountable |
| Connectivity Technology | Wired |
| Data Link Protocol | 10 Gigabit Ethernet |
| Performance |
| Virtual WAN bandwidth | 3 Gbps |
| Features | Firewall protection, NAT support, VLAN support, Quality of Service (QoS), DHCP relay, NetFlow, DHCP client, GRE tunneling, system log, Open Shortest Path First (OSPF), IP Security (IPSec) support |
| Encryption Algorithm | 128-bit AES, 256-bit AES |
| Compliant Standards | IEEE 802.1Q |
| Expansion / Connectivity |
| Interfaces | 1 x 100Base-TX (management) – RJ-45, 1 x management (RS-232), 2 x 1000Base-TX (management) – RJ-45, 8 x 10Gb Ethernet, USB |
| Miscellaneous |
| Compliant Standards | CSA, UL, VCCI, NOM, CCC, DOC, RoHS, UL 60950-1, KCC, WEEE, FCC Part 15 A, REACH, EAC, CITC, RCM |
| Power |
| Power Device | Internal power supply |
| Installed Qty | 2 |
| Max Supported Qty | 2 |
| Power Redundancy | Yes |
| Voltage Required | AC 120/230 V (50/60 Hz) |
| Power Provided | 650 Watt |
| Environmental Parameters |
| Min Operating Temperature | 32 °F |
| Max Operating Temperature | 104 °F |
| Humidity Range Operating | 5 – 95% (non-condensing) |
