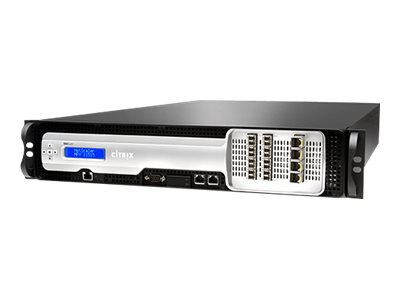

Citrix NetScaler SDX 15030-50G – load balancing device
Tech overview
Citrix NetScaler SDX 15030-50G – Load balancing device – 10 GigE, 50 Gigabit LAN – front to back airflow – 2U – rack-mountable
634,599.00 د.إ
Specifications | Details |
---|
General |
Device Type | Load balancing device |
Height (Rack Units) | 2U |
Built-in Devices | Status LCD, keypad, RAID controller |
Depth | 28.3 in |
Weight | 39.02 lbs |
Processor / Memory / Storage |
Processors Installed | Intel Xeon E5-2620V4 |
RAM | 128 GB |
Hard Drive | SSD 240 GB x 4 |
Hard Drive (2nd) | SSD – 480 GB x 4 |
Networking |
Form Factor | Rack-mountable |
Airflow Direction | Front to back airflow |
Connectivity Technology | Wired |
Data Link Protocol | 10 Gigabit Ethernet, 50 Gigabit Ethernet |
Network / Transport Protocol | TCP/IP, PPTP, UDP/IP, ICMP/IP, FTP, DNS, RTSP |
Routing Protocol | OSPF, IS-IS, RIP-1, RIP-2, BGP, VRRP, static IP routing, ECMP |
Remote Management Protocol | SNMP 1, SNMP 2, Telnet, SNMP 3, HTTP, HTTPS, SSH, CLI |
Performance | Layer 7 throughput: 30 Gbps ¦ SSL throughput: 30 Gbps ¦ Compression throughput: 7.2 Gbps ¦ ECDHE: 20000 transactions per second ¦ SSL throughput (2k key): 42000 transactions per second ¦ Request rate (layer 7): 2800000 requests per second |
Capacity | Concurrent SSL VPN users: 20000 ¦ Maximum number of instances: 20 |
Features | Firewall protection, NAT support, VPN support, layer 7 switching, LDAP support, OCSP support, VLAN support, DoS attack prevention, content filtering, packet filtering, manageable, IPv6 support, High Availability, Virtual Route Redundancy Protocol (VRRP) support, Access Control List (ACL) support, Remote Desktop Protocol (RDP) support, RADIUS support, SSH support, layer 4 load balancing, SSL acceleration, DNS proxy, Equal-Cost Multipath (ECMP), IPv4 support, Global Server Load Balancing (GSLB), Link Aggregation Control Protocol (LACP), NetFlow, DNS authoritative, Management Information Base (MIB), IPFIX, Management Information Base (MIB) II, Carrier Grade NAT (CGN/CGNAT) |
Encryption Algorithm | SSL |
Authentication Method | Secure Shell (SSH), RADIUS, TACACS+, LDAP, Active Directory, NTLM |
Compliant Standards | IEEE 802.1Q, IEEE 802.3ad (LACP) |
Expansion / Connectivity |
Interfaces | 8 x 10Gb Ethernet – SFP+ ¦ 4 x 50Gb Ethernet – QSFP28 ¦ 1 x console – DB-9 ¦ 2 x 1000Base-T (management) – RJ-45 ¦ 1 x management (Lights-Out) – RJ-45 |
Miscellaneous |
Compliant Standards | EIA-310-D, CSA, VCCI, DOC, RoHS, WEEE, FCC Part 15 A, DIN 41494, IEC 60297, CNS |
Power |
Power Device | Internal power supply – hot-plug |
Installed Qty | 2 |
Max Supported Qty | 2 |
Power Redundancy | Yes |
Voltage Required | AC 120/230 V (50/60 Hz) |
Power Consumption Operational | 300 Watt |
Environmental Parameters |
Min Operating Temperature | 32 °F |
Max Operating Temperature | 104 °F |
Humidity Range Operating | 20 – 80% (non-condensing) |
