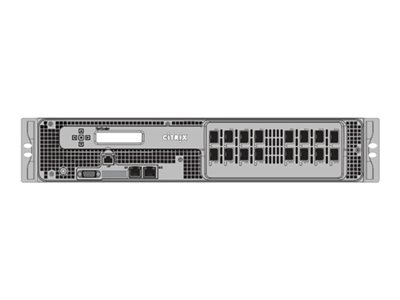

Citrix NetScaler SDX 15030 – load balancing device

Add to Wishlist

Tech overview

Citrix NetScaler SDX 15030 – Load balancing device – 25 Gigabit LAN – front to back airflow – 2U – Citrix Enterprise License Program (ELA) (Level 5) – rack-mountable

AED363,799.00

Add to Wishlist

Citrix ADC is the most comprehensive application delivery and load balancing solution for monolithic and microservices-based applications. Which means you can deliver a better user experience, on any device—anywhere.

Citrix NetScaler SDX is a true network service delivery platform for enterprise data centers and cloud infrastructures. An advanced virtual architecture supports multiple NetScaler instances on a single hardware appliance, while a console unifies provisioning, monitoring and management to meet the demands of the most complex shared environments, all with the unrivalled performance of the Citrix NetScaler architecture. Complete resource isolation ensures guaranteed service levels, high availability, software version control, data separation and independent policy management. Offering a solid foundation for enterprise service consolidation, NetScaler SDX is also optimized for delivering next-generation cloud computing services.

SKU: 3029561-E5 Category: Tag:
Specifications Details
General
Device Type Load balancing device
Height (Rack Units) 2U
Built-in Devices Status LCD, keypad, RAID controller
Depth 28 in
Weight 59.97 lbs
Processor / Memory / Storage
RAM 128 GB
Hard Drive SSD 480 GB x 2
Networking
Form Factor Rack-mountable
Airflow Direction Front to back airflow
Connectivity Technology Wired
Data Link Protocol 25 Gigabit Ethernet
Network / Transport Protocol TCP/IP, PPTP, UDP/IP, ICMP/IP, FTP, DNS, RTSP
Routing Protocol OSPF, IS-IS, RIP-1, RIP-2, BGP, VRRP, static IP routing, ECMP
Remote Management Protocol SNMP 1, SNMP 2, Telnet, SNMP 3, HTTP, HTTPS, SSH, CLI
Performance
Layer 7 throughput 30 Gbps
Request rate (layer 7) 2800000 requests per second
Compression throughput 7.2 Gbps
SSL throughput (2k key) 42000 transactions per second
ECDHE 20000 transactions per second
SSL throughput 30 Gbps
Capacity
Concurrent SSL VPN users 20000
Features
Firewall protection, NAT support, VPN support, layer 7 switching, LDAP support, OCSP support, VLAN support, DoS attack prevention, content filtering, packet filtering, manageable, IPv6 support, High Availability, Virtual Route Redundancy Protocol (VRRP) support, Access Control List (ACL) support, Remote Desktop Protocol (RDP) support, RADIUS support, SSH support, layer 4 load balancing, SSL acceleration, DNS proxy, Equal-Cost Multipath (ECMP), IPv4 support, Global Server Load Balancing (GSLB), Link Aggregation Control Protocol (LACP), NetFlow, DNS authoritative, Management Information Base (MIB), IPFIX, Management Information Base (MIB) II, Carrier Grade NAT (CGN/CGNAT)
Encryption Algorithm SSL
Authentication Method Secure Shell (SSH), RADIUS, TACACS+, LDAP, Active Directory, NTLM
Compliant Standards IEEE 802.1Q, IEEE 802.3ad (LACP)
Expansion / Connectivity
Interfaces 16 x 25Gb Ethernet – SFP28, 1 x console – DB-9, 2 x 1000Base-T (management) – RJ-45, 1 x management (Lights-Out) – RJ-45
Miscellaneous
Compliant Standards EIA-310-D, EN55022, NOM, EN55024, AS/NZS 60950-1, MOC, RoHS, NTRA, UL 60950-1 Second Edition, WEEE, FCC Part 15 A, ANATEL, REACH, IEC 60950-1 Second Edition, EAC, CITC, ICASA, CSA 60950-1 Second Edition
Pricing Type Citrix Enterprise License Program (ELA) (Level 5)
Power
Power Device Internal power supply – hot-plug
Installed Qty 2
Max Supported Qty 2
Power Redundancy Yes
Voltage Required AC 120/230 V (50/60 Hz)
Power Consumption Operational 310 Watt
Power Provided 1000 Watt
Environmental Parameters
Min Operating Temperature 32 °F
Max Operating Temperature 113 °F
Humidity Range Operating 5 – 95% (non-condensing)
