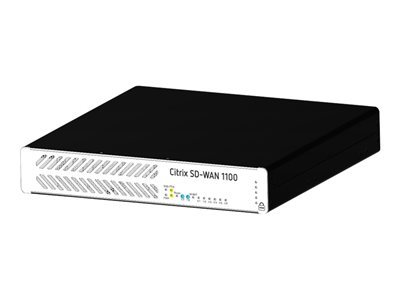

Citrix SD-WAN 1100-Z – Standard/Premium Edition – load balancing device
Tech overview
Citrix SD-WAN 1100-Z – Standard/Premium Edition – load balancing device – GigE – 1U – Citrix Enterprise License Program (ELA) (Level 3) – rack-mountable
AED6,899.00
Citrix SD-WAN is a solution that simplifies digital transformation for enterprises. It offers superior application experience for SaaS, cloud, and virtual apps & desktops; comprehensive security; and cloud choice with automation to ensure an always-on workspace.
| Specifications | Details |
|---|
| General |
| Device Type | Load balancing device |
| Height (Rack Units) | 1U |
| Depth | 9.8 in |
| Height | 1.8 in |
| Weight | 4.5 lbs |
| Processor / Memory / Storage |
| RAM | 24 GB |
| Hard Drive | SSD 480 GB x 1 |
| Networking |
| Form Factor | Rack-mountable |
| Connectivity Technology | Wired |
| Data Link Protocol | Ethernet, Fast Ethernet, Gigabit Ethernet |
| Network / Transport Protocol | TCP/IP, IPSec, PPPoE, DHCP, DNS |
| Routing Protocol | OSPF, BGP, static IP routing, GRE |
| Remote Management Protocol | SNMP 3, CLI |
| Capacity | Maximum virtual paths (dynamic): 32 ¦ Maximum virtual paths (fixed): 64 ¦ Maximum HDX CCUs: 300 ¦ Maximum accelerated TCP sessions: 10000 |
| Status Indicators | Port status, port transmission speed, power, PoE, link/activity, bypass |
| Features | Firewall protection, routing, NAT support, MPLS support, VLAN support, Syslog support, Quality of Service (QoS), DHCP server, DHCP relay, NetFlow, DHCP client, GRE tunneling, Open Shortest Path First (OSPF), IP Security (IPSec) support |
| Encryption Algorithm | 128-bit AES, 256-bit AES |
| Authentication Method | RADIUS, PAP, CHAP, TACACS+ |
| Compliant Standards | IEEE 802.1Q |
| Expansion / Connectivity | Interfaces: 2 x 1000Base-T (PoE) – RJ-45 ¦ 2 x Ethernet 1000 – RJ-45/SFP (mini-GBIC) ¦ 1 x 1000Base-TX (management) – RJ-45 ¦ 1 x console – RJ-45 ¦ 2 x USB 3.0 – Type A ¦ 4 x 1000Base-T – RJ-45 |
| Miscellaneous | Included Accessories: Rubber feet |
| Compliant Standards | EIA-310-D, UL, VCCI, NOM, FCC Part 15 B, CCC, MOC, RoHS, KCC, WEEE, DIN 41494, EAC, CITC, RCM, IEC 60297 |
| Pricing Type | Citrix Enterprise License Program (ELA) (Level 3) |
| Power |
| Power Over Ethernet (PoE) Supported | PoE |
| Power Device | External power adapter |
| Installed Qty | 1 |
| Max Supported Qty | 2 |
| Power Redundancy | Optional |
| Voltage Required | AC 120/230 V (50/60 Hz) |
| Power Consumption Operational | 96.8 Watt |
| Dimensions & Weight (Shipping) |
| Shipping Width | 13.7 in |
| Shipping Depth | 12.7 in |
| Shipping Height | 7.5 in |
| Shipping Weight | 7.5 lbs |
| Environmental Parameters |
| Min Operating Temperature | 32 °F |
| Max Operating Temperature | 104 °F |
| Humidity Range Operating | 5 – 95% (non-condensing) |
