Citrix SDX 15030 SFP28 Application Delivery Controller

Add to Wishlist
  • Memory: 128GB
  • Rack Unit: 2U
  • Application Acceleration
  • Front-End Optimization
  • RoHS,WEEE,REACH Regulatory Compliance
  • Interface: SFP28
  • Application Availability
  • Application Security
  • Simple Manageability

79,999.00 د.إ

Add to Wishlist

Citrix NetScaler SDX 15030-50G – Load balancing device – 10 GigE, 50 Gigabit LAN – front to back airflow – 2U – Citrix Enterprise License Program (ELA) (Level 1) – rack-mountable

Citrix ADC is the most comprehensive application delivery and load balancing solution for monolithic and microservices-based applications. Which means you can deliver a better user experience, on any device—anywhere.

Citrix NetScaler is a universal web application delivery controller that can make web applications up to five times faster! NetScaler optimizes the availability of applications with the help of advanced L4-7 load balancing and traffic management, increases performance, offers high security thanks to the integrated application firewall and significantly reduces operating costs by increasing web server efficiency.

SKU: Citrix SDX 15030 SFP28 Category: Tag:
General Information
Category Load balancer
Description Citrix NetScaler SDX 15030 – Load balancing device – 25GbE – front to back airflow – 2U – Citrix Enterprise License Program (ELA) (Level 2) – rack-mountable
Manufacturer Citrix Systems
UNSPSC 43222622
Main Specifications
Dimensions & Weight / Depth 71.1 cm
Dimensions & Weight / Weight 27.2 kg
Header / Brand Citrix
Miscellaneous / Product Color
  • Black
  • Silver
Networking / Connectivity Technology Wired
Networking / Data Link Protocol 25 Gigabit Ethernet
Networking / Form Factor Rack-mountable
Networking / Type Load balancing device
Packaged Quantity 1
Environmental Parameters
Humidity Range Operating 5 – 95% (non-condensing)
Max Operating Temperature 45 °C
Min Operating Temperature 0 °C
Expansion / Connectivity

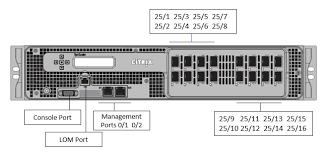

Interfaces
  • 16 x 25Gb Ethernet – SFP28
  • 1 x console – DB-9
  • 2 x 1000Base-T (management) – RJ-45
  • 1 x management (Lights-Out) – RJ-45
General
Built-in Devices Status LCD, keypad, RAID controller
Depth 71.1 cm
Device Type Load balancing device
Height (Rack Units) 2U
Weight 27.2 kg
Miscellaneous
Compliant Standards EIA-310-D, EN55022, NOM, EN55024, AS/NZS 60950-1, MOC, RoHS, NTRA, UL 60950-1 Second Edition, WEEE, FCC Part 15 A, ANATEL, REACH, IEC 60950-1 Second Edition, EAC, CITC, ICASA, CSA 60950-1 Second Edition
Pricing Type Citrix Enterprise License Program (ELA) (Level 2)
Networking
Airflow Direction Front to back airflow
Authentication Method Secure Shell (SSH), RADIUS, TACACS+, LDAP, Active Directory, NTLM
Capacity Concurrent SSL VPN users: 20000
Compliant Standards IEEE 802.1Q, IEEE 802.3ad (LACP)
Connectivity Technology Wired
Data Link Protocol 25 Gigabit Ethernet
Encryption Algorithm SSL
Features Firewall protection, NAT support, VPN support, layer 7 switching, LDAP support, OCSP support, VLAN support, DoS attack prevention, content filtering, packet filtering, manageable, IPv6 support, High Availability, Virtual Route Redundancy Protocol (VRRP) support, Access Control List (ACL) support, Remote Desktop Protocol (RDP) support, RADIUS support, SSH support, layer 4 load balancing, SSL acceleration, DNS proxy, Equal-Cost Multipath (ECMP), IPv4 support, Global Server Load Balancing (GSLB), Link Aggregation Control Protocol (LACP), NetFlow, DNS authoritative, Management Information Base (MIB), IPFIX, Management Information Base (MIB) II, Carrier Grade NAT (CGN/CGNAT)
Form Factor Rack-mountable
Network / Transport Protocol TCP/IP, PPTP, UDP/IP, ICMP/IP, FTP, DNS, RTSP
Performance
  • Layer 7 throughput: 30 Gbps
  • Request rate (layer 7): 2800000 requests per second
  • Compression throughput: 7.2 Gbps
  • SSL throughput (2k key): 42000 transactions per second
  • ECDHE: 20000 transactions per second
  • SSL throughput: 30 Gbps
Remote Management Protocol SNMP 1, SNMP 2, Telnet, SNMP 3, HTTP, HTTPS, SSH, CLI
Routing Protocol OSPF, IS-IS, RIP-1, RIP-2, BGP, VRRP, static IP routing, ECMP
Power
Installed Qty 2
Max Supported Qty 2
Power Consumption Operational 310 Watt
Power Device Internal power supply – hot-plug
Power Provided 1000 Watt
Power Redundancy Yes
Voltage Required AC 120/230 V (50/60 Hz)
Processor / Memory / Storage
Hard Drive SSD 480 GB x 2
RAM 128 GB
