ClearOne Ceiling Microphone Array Analog- X Bundle (1 Array, 3 Channel, Black)

Add to Wishlist
Key Features
  • Tri-Element Microphone, 360° Coverage
  • Optimized for Intelligibility
  • Full Audio Bandwidth and High SNR
  • Works with ClearOne DSP Mixers
  • Compatible with 3rd Party DSP Mixers
  • 100% Shielded from RF Interference
  • Height Adjustable from 0 to 7′
  • Includes 1 Mic Capsule
  • Includes 1 Analog Junction Box
  • Includes 1 Analog Interface Box

5,499.00 د.إ

Add to Wishlist

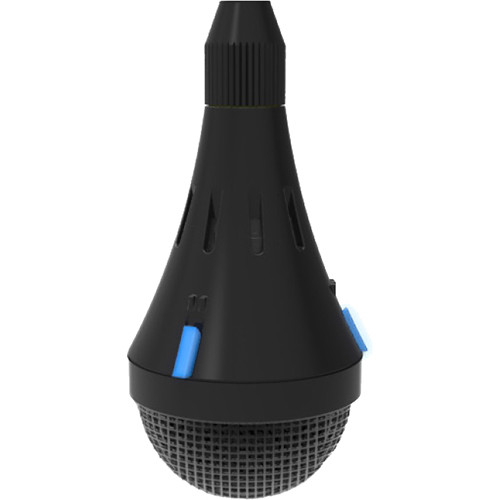

ClearOne Ceiling Microphone Array Overview

The black ClearOne Ceiling Microphone Array Analog X Bundle is a 3-channel array, which includes 1 microphone capsule, 1 analog junction box, and a single analog interface box which combine to create an advanced ceiling microphone array for audio, video, or web conferencing as well as sound reinforcement applications. The bundle is well suited for boardrooms, conference rooms, training rooms, lecture halls, courtrooms, and telemedicine theatres. The advanced tri-element of each microphone capsule provides up to 360° of coverage and is optimized for speech-intelligibility. The 3-channel array works with ClearOne and other 3rd-party DSP mixers. The system offers 100% shielding from RF interference and is easily height-adjustable from 0 to 7′.

  • Full 360-degree coverage
  • LED indicators for On/Mute
  • Optimized for speech-intelligibility with full audio bandwidth and highest SNR
  • 100% shielding against RF interference
  • Numbered microphone elements for easy identification
  • Height easily adjustable from 0 feet to 7 feet
  • Sleek, unobtrusive design
  • Works with ClearOne and other 3rd-party DSP mixers
SKU: 930-6200-103-B A Category:

ClearOne Ceiling Microphone Array Specs

Acoustic Characteristics Element: Condenser (Electret)
Polar Pattern: 3 x 120° Cardioid Patterns, Covering 360°
Signal/Noise Ratio: 74 dBA at 1 kHz
Frequency Response: 70 Hz to 20 kHz
Sensitivity: -37 dB at 1 kHz (0 dB = 1 V / Pa)
Max Sound Pressure Level: 120 dB SPL
RF Immunity: 100% Immunity, Fully Balanced Twisted Pair Throughout
Power and Thermal DC Power: 9 VDC at 0.5 A
Impedance: 200 Ohms
Operating Temperature: 41 to 104°F / 5 to 40°C
Cables Junction Box to Interface Box: RJ45 Cat 5e/6 24 AWG (Max 200′ / 61 m)
Junction Box to Mic Capsule: Proprietary Mic Array Cable (Max 7′ / 2.1 m)
Compliance FCC, IC, CE, RoHs, WEEE, UL2043 (Plenum Rated)
Dimensions Mic Capsule: 1.7 x 1.7 x 86.6″ / 43.2 x 43.2 x 2199.6 mm
Analog-X Interface: 6.8 x 4.1 x 1.7″ / 172.7 x 104.1 x 43.2 mm
Analog-X Junction: 4 x 3.7 x 1.4″ / 101.6 x 94 x 35.6 mm
Weight Mic Capsule: 6 oz / 170.1 g
Analog-X Interface: 13 oz / 368.5 g
Analog-X Junction: 6.5 oz / 184.3 g
