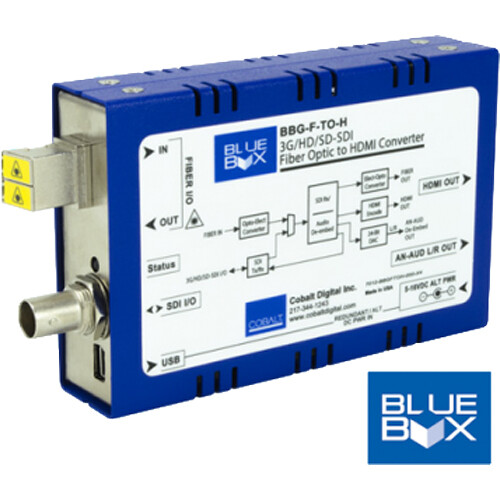

Cobalt BlueBox 3G/HD/SD-SDI Fiber Optic to HDMI Converter with LC Connector

Add to Wishlist
Key Features
  • Portable SDI Fiber to HDMI Converter
  • Fiber Ports Feature LC-Style Connectors
  • SDI In/Out, LC Fiber In/Out, HDMI Out
  • HDMI 1.4a and DVI-D Support
  • Analog Stereo Audio Output
  • Power with Adapter or Mini-USB from Host

AED5,999.00

Add to Wishlist

The Cobalt BlueBox 3G/HD/SD-SDI Fiber Optic to HDMI Converter with LC Connector converts and extends SDI video to HDMI over fiber. Bring in an SDI signal via the LC fiber connector and convert it to the HDMI 1.4a or DVI-D output. This portable converter supports SMPTE 424M, 259M, and 292M standards and video resolutions up to 1080p60.

Single-mode fiber input and output allows you to extend video up to six miles at the highest supported bandwidth of 3 Gb/s and up to 22 miles at 270 Mb/s. Video may also be output locally via the SDI loop output or converted to the HDMI output. Embedded audio may be output to speakers or other analog device via a stereo analog output.

Direct Conversion
Direct conversion to HDMI from SMPTE 259M, 292M, and 424M SDI
DVI-D Support
Flexible crosspoint and multiple inputs/outputs provide fiber-to-HDMI, SDI-to-fiber, and fiber regen conversions, and HDMI output can be set as DVI-D for direct connection to computer monitors
Extend SDI Signals
Single-mode fiber link distance up to six miles at 3 Gb/s, up to 12 miles at 1.5 Gb/s, and up to 22 miles at 270 Mb/s
Power Options
Powers directly from host equipment USB or standard power adapter, and both can be simultaneously used to provide redundant power
Configuration
Configurable using device DIP switches or USB GUI remote control offering dynamic configuration control, status display, and other advanced control functions not commonly found on “throwdown” packages
Compact Design
Compact size and low-weight design easily affixes directly to camera or host device chassis
SKU: BBG-F-TO-H-LC Category: Tag:
Inputs / Outputs
Video Inputs
1x LC Fiber (3G-SDI) Female
1x BNC (3G-SDI) Female
Audio Inputs
No
Video Outputs
1x HDMI (1.4a) Female
1x BNC (HD-SDI) Female (Loop Output)
1x LC Fiber (3G-SDI) Female
Audio Outputs
1x 1/8″ / 3.5 mm TRS Stereo Analog Female
Expansion Slots
No
Format Support
Output Audio Format
LPCM (Linear Pulse-Code Modulation): 48 kHz / 24-Bit
Embedded Audio
HDMI/SDI: 2-Channel
Standards
Video Standard Compliance
SMPTE 259M/292M/424M
HDR Support
No
Power
Power I/O
1x Mini-USB (5 to 16 VDC ) Input
1x Barrel (5 to 16 VDC ) Input
Power Consumption
Device: 2.4 W
Environmental
Operating Temperature
32 to 122°F / 0 to 50°C
General
Dimensions
5.5 x 3 x 1″ / 13.9 x 7.7 x 2.6 cm
