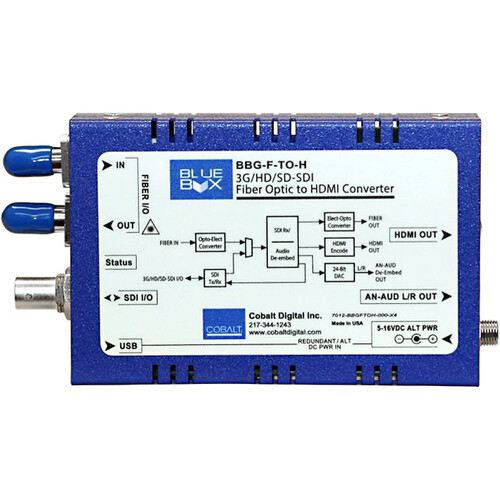

Cobalt BlueBox 3G/HD/SD-SDI Fiber Optic to HDMI Converter with ST Connector

Add to Wishlist
Key Features
  • Portable SDI Fiber to HDMI Converter
  • Fiber Ports Feature ST-Style Connectors
  • SDI In/Out, ST Fiber In/Out, HDMI Out
  • HDMI 1.4a and DVI-D Support
  • Analog Stereo Audio Output
  • Power with Adapter or Mini-USB from Host

AED5,999.00

Add to Wishlist

Convert and extend SDI video to HDMI output over fiber with this BlueBox 3G/HD/SD-SDI Fiber Optic to HDMI Converter with ST Connector from Cobalt. This portable converter inputs an SDI signal via the ST fiber input and converts it to HDMI 1.4a or DVI-D output. It supports SMPTE 424M, 259M, and 292M standards and up to 1080p60 video.

The converter can be used to extend video up to 6 miles at the highest supported bandwidth of 3 Gb/s an up to 22 miles at 270 Mb/s using single-mode fiber input and output. You can also output video locally to an SDI loop output as well as converting the signal to HDMI output. A stereo analog output is also available to output embedded audio to analog destinations such as speakers. The converter can be powered using the included power adapter or from an optional mini-USB source, and they can be used together as redundant power.

Key Features
Direct Conversion
Direct conversion to HDMI from SMPTE 259M, 292M, and 424M SDI
DVI-D Support

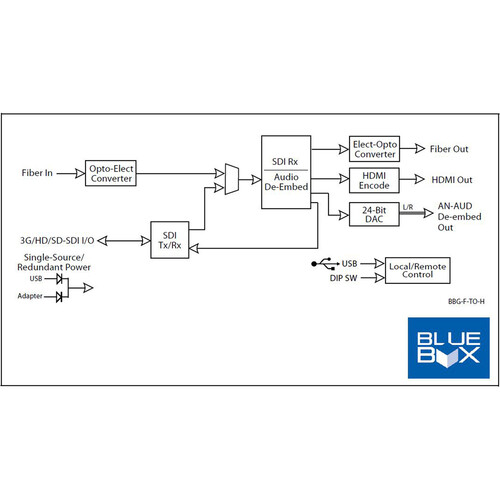

Flexible crosspoint and multiple inputs/outputs provide fiber-to-HDMI, SDI-to-fiber, and fiber regen conversions, and HDMI output can be set as DVI-D for direct connection to computer monitors
Extend SDI Signals
Single-mode fiber link distance up to 6 miles at 3 Gb/s, up to 12 miles at 1.5 Gb/s, and up to 22 miles at 270 Mb/s
Power Options
Powers directly from host equipment USB or standard corded power adapter, and both can be simultaneously used to provide redundant power sourcing
Configuration
Configurable using device DIP switches or USB GUI remote control offering dynamic configuration control, status display, and other advanced control functions not commonly found on “throwdown” packages
Compact Design
Compact size and low-weight design easily affixes directly to camera or host device chassis
SKU: BBG-F-TO-H-ST Category: Tag:
Inputs / Outputs
Video Inputs
1x ST Fiber (3G-SDI) Female
1x BNC (3G-SDI) Female
Audio Inputs
No
Video Outputs
1x HDMI (1.4a) Female
1x BNC (HD-SDI) Female (Loop Output)
1x ST Fiber (3G-SDI) Female
Audio Outputs
1x 1/8″ / 3.5 mm TRS Stereo Analog Female
Expansion Slots
No
Format Support
Output Audio Format
LPCM (Linear Pulse-Code Modulation): 48 kHz / 24-Bit
Embedded Audio
HDMI/SDI: 2-Channel
Standards
Video Standard Compliance
SMPTE 259M/292M/424M
HDR Support
No
Hardware
Wireless
No
Power
Power I/O
1x Mini-USB (5 to 16 VDC ) Input
1x Barrel (5 to 16 VDC ) Input
Power Consumption
Device: 2.4 W
Environmental
Operating Temperature
32 to 122°F / 0 to 50°C
General
Dimensions
5.5 x 3 x 1″ / 13.9 x 7.7 x 2.6 cm
