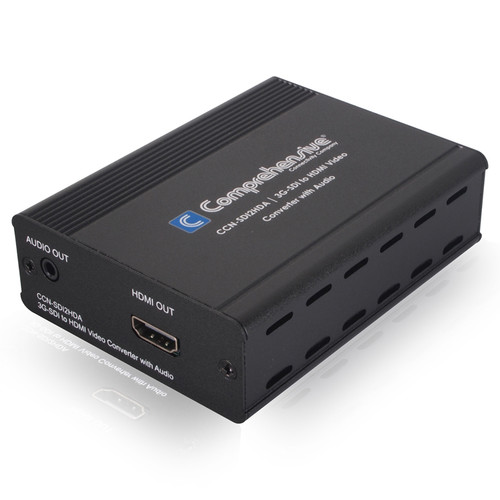

Comprehensive Pro AV/IT 3G-SDI to HDMI Video Converter with Audio Support

Add to Wishlist

AED1,199.00

Add to Wishlist

The black Pro AV/IT 3G-SDI to HDMI Video Converter from Comprehensive allows SD-SDI, HD-SDI, and 3G-SDI signals to be shown on an HDMI display. It features high bitrate of 2.97 Gb/s to give you high-bandwidth lossless signal transmission for up to 1000′. The external audio output allows you to send the audio signal originally embedded in the SDI input to an amplifier or to active speakers.

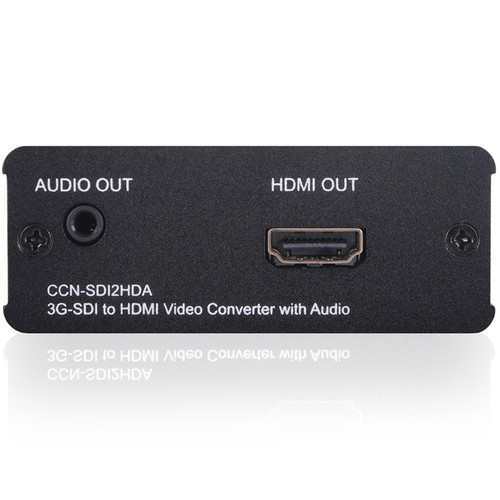

  • Converts SDI source for connection to HDMI display
  • Supports SD-SDI, HD-SDI, and 3G-SDI input signals with auto-detection
  • SDI interface operates at bitrates of 2.970, 2.970/1.001, 1.485, 1.485/1.001 Gb/s, and 270 Mb/s
  • Supports signal input and output distance of up to 1000′ for SD signals, 656′ for HD signals, and 330′ for 3G signals

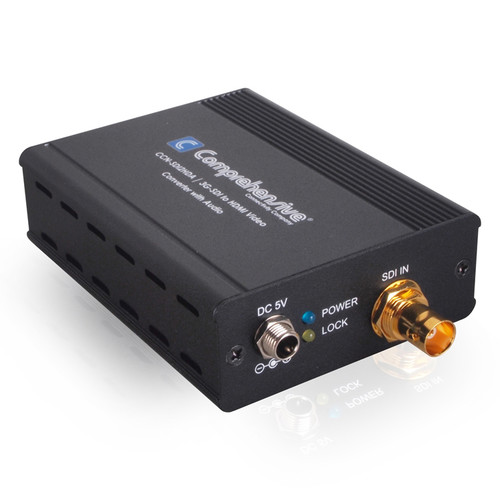

  • Comes with locking PSU
  • Durable metal enclosure
SKU: CCN-SDI2HDA Category: Tag:
Conversion Modes
SD-SDI (SMPTE 259M-C) to 480i / 576i
HD-SDI (SMPTE 292M) to 720p @ 50 / 59.94 / 60, 1080i @ 50 / 59.94 / 60
3G-SDI (SMPTE 424M/425M-AB) to 1080p @ 23.98 / 24 / 25 / 29.97 / 30 / 50 / 59.94 / 60, 1080p sF @ 23.98 / 24 / 25 / 29.97 / 30
Inputs
Connector:
1 x BNC (1 x 3G-SDI)

Modes:
SD-SDI (SMPTE 259M-C @ 270 Mb/s)
HD-SDI (SMPTE 292M @ 1.485 and 1.485/1.001 Gb/s)
3G-SDI (SMPTE 424M/425M-AB @ 2.970 and 2.970/1.001 Gb/s)
Outputs
1 x HDMI (1 x Uncompressed AV and Data)
SDI Transmission Rates
Up to 2.970 Gbit/s and 2.970/1.001 Gbit/s
SMPTE Standards Supported
425M Level A & B, 424M, 292M, 259M-C
Timing
SD-SDI: 480i / 576i
HD-SDI: 720p @ 50/60, 1080i @ 50/60, 1080p @ 24/50/60
3G-SDI: 1080p @ 50/60
HDMI Supported Resolutions
480i / 576i, 720p @ 50/59.94/60, 1080i @ 50/59.94/60, 1080p @ 23.98 / 24 / 25 / 29.97 / 30 / 50 / 59.94 / 60
Audio Output Format
HDMI: PCM 2/5.1/7.1 channel
3.5 mm analog: 2-channel
Cable Distance
3G-SDI up to 330′ (101 m)
HD-SDI up to 656′ (200 m)
SD-SDI up to 1000′ (305 m)
Power Supply
5 VDC; 2.6 A (US/EU standards, CE/FCC/UL certified)
Power Consumption
5 W maximum
ESD Protection
Approximately 8 kV (air-gap discharge)
Approximately 4 kV (contact discharge)
Chassis Material
Aluminum
Dimensions
3.09 x 4.88 x 1.18″ (7.85 x 12.39 x 2.99 cm)
Weight
7.04 oz (200 g)
Packaging Info
Package Weight
1.055 lb
Box Dimensions (LxWxH)
8.25 x 4.85 x 2.5″
