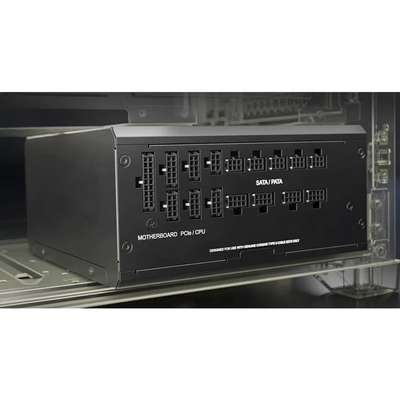

An innovative patent-pending side PSU panel with modular connections lets you comfortably plug cables into the side face of the PSU, making it easier to connect and manage your cables than ever before.
ON THE CUTTING-EDGE | ATX 3.0 CERTIFIED
The ATX 3.0 standard demands a high level of reliability and power efficiency. While many CORSAIR PSUs meet these requirements, RMx SHIFT Series PSUs are formally certified for ATX 3.0 compliance.
PCIe 5.0 12VHPWR GPU cables included for use with modern graphics cards such as the NVIDIA® GeForce RTX™ 40 Series.
FULLY MODULAR | CORSAIR TYPE 5 MICRO-FIT CONNECTORS
Fully modular, CORSAIR Type 5 Gen 1 micro-fit PSU cables, so you only connect the cables your system needs while taking up less space.

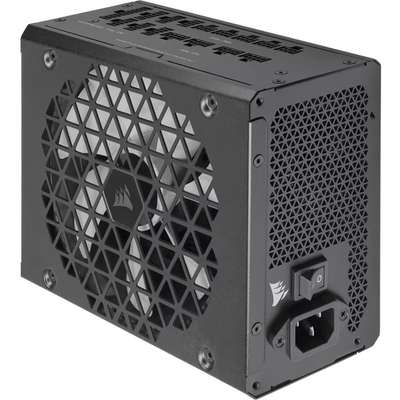

140mm FAN WITH ZERO RPM MODE SUPPORT
A low-friction, fluid dynamic bearing 140mm fan with Zero RPM mode support ensures your PSU runs cool while staying virtually silent when not under high load.
80 PLUS GOLD CERTIFIED
Steady power output at up to 90% efficiency, and Cybenetics- certified for lower power consumption, less noise, and cooler temperatures.
105°C-RATED CAPACITORS
Built with 100% Industrial-grade, 105°C-rated Japanese electrolytic capacitors for unwavering power and reliability.
CASE COMPATIBILITY

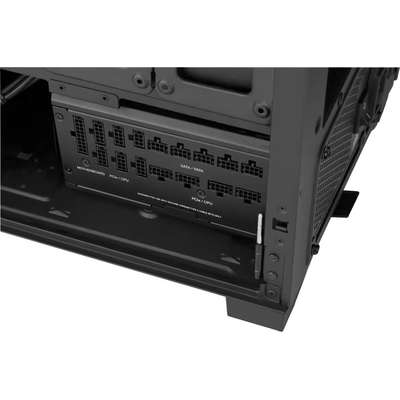

The PSU and cables will fit in any PC case that supports ATX PSU format and is at least 210mm (8.3″) wide. The PSU must also be accessible from the side when mounted in the case.
| Category | Specification |
|---|---|
| General Information | |
| Product Name | Corsair PS CP-9020254-na RM1200X Shift 1200W 80+ Gold Fully Modular ATX |
| Manufacturer Part Number | CP-9020254-NA |
| Product Line | RMx SHIFT |
| Product Model | RPS0162 |
| Product Type | Power Supply |
| Technical Information | |
| Specification Compliance | ATX 3.0, EPS 2.92 |
| Efficiency | 90% |
| Number of Fans | 1 |
| Modular | Yes |
| NVIDIA SLI Supported | Yes |
| Power Description | |
| Number of +12V Rails | 1 |
| Output Voltage | 3.3 V DC, 5 V DC, 12 V DC |
| Output Voltage Detail | 3.3 V DC @ 20 A, 5 V DC @ 20 A, 12 V DC @ 100 A, 5 V DC @ 3 A |
| Output Current | 20 A, 100 A, 3 A |
| Output Power | 1200 W |
| Physical Characteristics | |
| Form Factor | Internal |
| Height | 7.1″ |
| Width | 5.9″ |
| Depth | 5.1″ |
| Miscellaneous | |
| Country of Origin | Vietnam |
| Environmentally Friendly | Yes |
| Energy Efficiency Certification | 80 Plus Gold |
| Other Information | |
| Product Family | RMx SHIFT |
