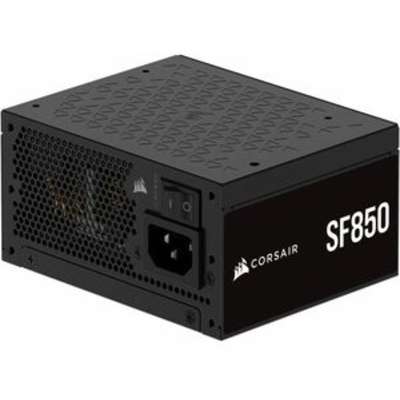

Corsair PS CP-9020256-na SF850 850W 80+ Platinum Fully Modular
- 80 PLUS Platinum rated efficiency
- ATX 3.1 compliant, supporting PCIe 5.1
- Fully modular, Type-5 Micro-Fit PSU connectors
- 92mm PWM cooling fan with Zero RPM mode
AED1,499.00

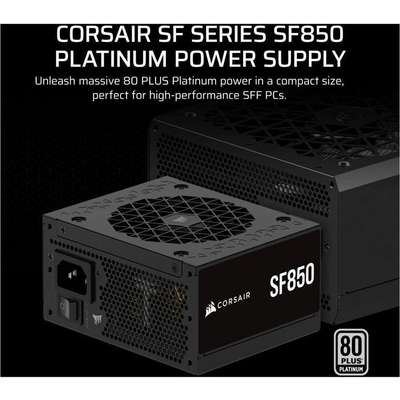

SMALL AND MIGHTY
Don’t let the size fool you – this SFX power supply packs 80 PLUS Platinum-rated power, perfect for the most power-dense small form-factor PCs.
50°C CONTINUOUS OPERATING TEMPERATURE
Ensures reliable power for your SFF PC, even under high-stress conditions.

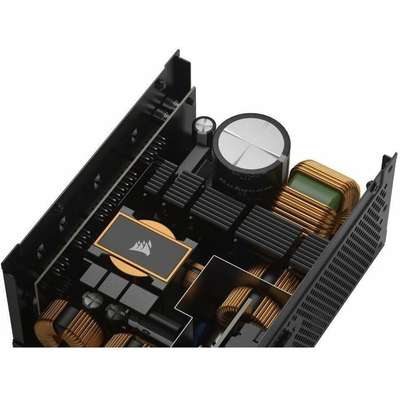

105°C-RATED CAPACITORS
Built with 100% Industrial-grade, 105°C-rated Japanese electrolytic capacitors for unwavering power and reliability.
ATX 3.1 CERTIFIED
The ATX 3.1 standard demands a high level of reliability and power efficiency. While many CORSAIR PSUs meet these requirements, SF Series PSUs are formally certified for ATX 3.1 compliance.
PCIe 5.1 12V-2×6 GPU cable included for use with modern graphics cards such as the NVIDIA® GeForce RTX™ 40 Series.
QUIET OPERATION WITH ZERO RPM MODE
A fluid dynamic bearing cooling fan keeps noise to a minimum, with Zero RPM mode to eliminate fan noise completely at low to medium loads.
FULLY MODULAR TYPE 5 MICRO-FIT CONNECTORS
Connect only what you need, with flexible cabling to take up less space for tidy cable management in small cases.
| Category | Specification |
|---|
| General Information |
| Product Name | Corsair PS CP-9020256-na SF850 850W 80+ Platinum Fully Modular |
| Manufacturer Part Number | CP-9020256-NA |
| Product Series | SF |
| Product Model | RPS0175 |
| Product Type | Power Supply |
| Technical Information |
| Specification Compliance | ATX12V v3.1 |
| Number of Fans | 1 |
| Fan Bearing Type | Fluid Dynamic Bearing |
| Fan Diameter | 92 mm |
| Modular | Yes |
| Modular Type | Fully Modular |
| NVIDIA SLI Supported | Yes |
| Features | Low Noise |
| Interfaces/Ports |
| Number of SATA Power Connectors | 8 |
| PCI Express Connector | Yes |
| PCI Express Version | 5.1 |
| Number of (6+2 pin) PCIe Power Connectors | 3 |
| Number of (4+4 pin) CPU Power Connectors | 2 |
| Power Description |
| Input Voltage | 120 V, 230 V |
| Output Voltage | 3.3 V, 5 V, 12 V, 5 V SB |
| Output Voltage Detail | 3.3 V @ 20 A, 5 V @ 20 A, 12 V @ 70.8 A, 5 V SB @ 3 A |
| Output Current | 20 A, 70.80 A, 3 A |
| Output Power | 850 W |
| Reliability |
| MTBF | 100,000 Hours |
| Physical Characteristics |
| Color Family | Black |
| Product Color | Black |
| Form Factor | SFX, Internal |
| Height | 2.5″ |
| Width | 4.9″ |
| Depth | 3.9″ |
| Miscellaneous |
| Energy Efficiency Certification | 80 Plus Platinum |
| Other Information |
| Product Family | SF |
| Input Frequency | 47~63Hz |
