QUIET, DEPENDABLE, EFFICIENT

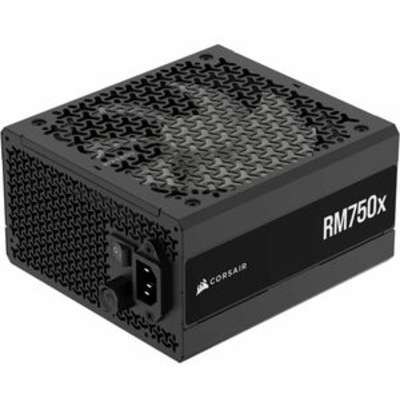

Our best-selling PSU, updated. This fully modular, low noise, Cybenetics Gold-certified power supply is ATX 3.1 compliant and ideal for delivering dependable power to today’s top-performing PCs.
50°C CONTINUOUS OPERATING TEMPERATURE
Ensures reliable power for your PC, even under high-stress conditions.

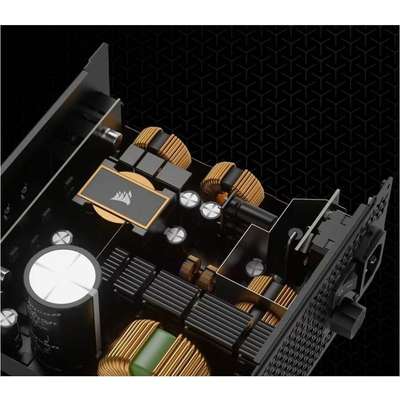

105°C-RATED CAPACITORS
Built with 100% Industrial-grade, 105°C-rated Japanese electrolytic capacitors for unwavering power and reliability.
ATX 3.1 CERTIFIED
Be confident your PSU supports the latest sleep and hibernate modes and modern CPU and GPU requirements. ATX 3.1 compliance ensures full compatibility with modern components and power states.

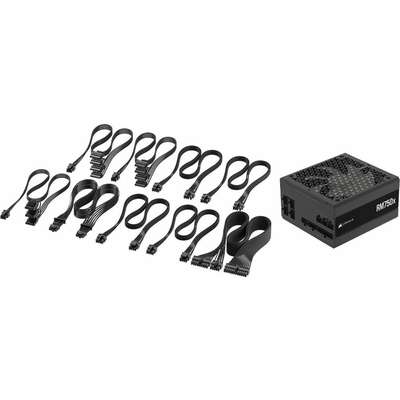

CLEAN CABLING, EVERY TIME | FULLY MODULAR CONNECTORS
Connect only what you need using sleek embossed cables with low-profile combs to make installations a breeze.
Native 12V-2×6 GPU cable included for use with modern graphics cards such as the NVIDIA® GeForce RTX™ 40 Series.
THE STRONG, SILENT TYPE | 140mm LOW-NOISE FAN
A fluid dynamic bearing fan with magnetic dome structure keeps noise to a minimum, with Zero RPM mode to eliminate fan noise completely at low to medium loads.
ENGAGE MANUAL CONTROLS | MANUAL FAN OVERRIDE KNOB
Want to get more air through the PSU or to exhaust some heat from your case? You can override the Zero RPM Mode and low-noise profile of the RMx Series with our manual fan override knob, increasing fan speed and airflow.
| Category | Specification |
|---|---|
| General Information | |
| Product Name | Corsair PS CP-9020285-na RM750X 750W Cybenetics Gold Fully Modular ATX |
| Manufacturer Part Number | CP-9020285-NA |
| Product Series | RMx |
| Product Model | RPS0199 |
| Product Type | Power Supply |
| Technical Information | |
| Specification Compliance | ATX12V v3.1, ATX 3.1 |
| Number of Fans | 1 |
| Fan Bearing Type | Fluid Dynamic Bearing |
| Fan Diameter | 140 mm |
| Modular | Yes |
| NVIDIA SLI Supported | Yes |
| Interfaces/Ports | |
| Number of SATA Power Connectors | 8 |
| PCI Express Connector | Yes |
| Number of (6+2 pin) PCI Express Power Connectors | 4 |
| Number of (4+4 pin) CPU Power Connectors | 2 |
| Power Description | |
| Input Voltage | 120 V AC, 230 V AC |
| Number of +12V Rails | 1 |
| Output Voltage | 3.3 V DC, 5 V DC, 12 V DC, 5 V SB |
| Output Voltage Detail | 3.3 V DC @ 20 A 5 V DC @ 20 A 12 V DC @ 62.5 A 5 V SB @ 3 A |
| Output Power | 750 W |
| Reliability | |
| MTBF | 100000 Hour |
| Physical Characteristics | |
| Form Factor | Internal |
| Other Information | |
| Product Family | RMx |
| Input Frequency | 63 Hz |
