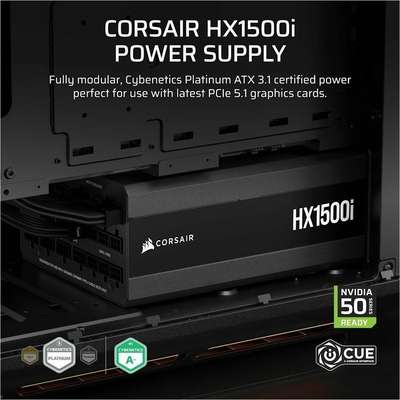

Corsair PS CP-9020309-na HX1500I 1500W 80+Platinum Fully Modular ATX
- Compatible with next-gen GPUs
- Dual 12V-2×6 cables
- Fluid Dynamic Bearing fan with Zero RPM mode
- 105°C rated 100% Japanese electrolytic capacitors
AED2,399.00
With dual 12V-2×6 cables and fully modular cabling, HXi Series platinum power supplies have every connection needed to power today’s most demanding PC upgrades now and into the future, including the latest generation of power-hungry graphics cards and processors.
iCUE SOFTWARE | YOUR SETUP AT YOUR COMMAND
With CORSAIR iCUE software, you can monitor your power supply performance, toggle single rail or multi rail mode, and control fan speed directly from your desktop.
CYBENETICS PLATINUM CERTIFIED
Steady power output at up to 90% efficiency and Cybenetics™ Platinum certified for lower power consumption, less noise, and cooler temperatures.
ON THE CUTTING-EDGE | ATX 3.1 CERTIFIED
The ATX 3.1 standard demands a high level of reliability and power efficiency. While many CORSAIR PSUs meet these requirements, HXi Series PSUs are formally certified for ATX 3.1 compliance.
Every HXi Series PSU is ready for high-end GPUs with two PCIe 5.1 12V-2×6 GPU power cables featuring dual-color connectors for visual confirmation of a secure connection.
QUIET OPERATION WITH ZERO RPM MODE
A fluid dynamic bearing cooling fan keeps noise to a minimum, with Zero RPM mode to eliminate fan noise completely at low to medium loads.
100% JAPANESE CAPACITORS
Sourced from world-renowned Japanese vendors, every HXi power supply features 100% industrial-grade electrolytic capacitors for unwavering reliability and a long lifespan.
| Category | Specification |
|---|---|
| General Information | |
| Product Name | Corsair PS CP-9020309-na HX1500I 1500W 80+Platinum Fully Modular ATX |
| Manufacturer Part Number | CP-9020309-NA |
| Product Series | HXi |
| Product Model | RPS0132 |
| Product Type | Power Supply |
| Technical Information | |
| Specification Compliance | ATX 3.1, ATX12V v3.1 |
| Efficiency | 90% |
| Number of Fans | 1 |
| Fan Bearing Type | Fluid Dynamic Bearing |
| Fan Diameter | 140 mm |
| Modular | Yes |
| Modular Type | Fully Modular |
| NVIDIA SLI Supported | Yes |
| Features | Low Noise |
| Interfaces/Ports | |
| Number of SATA Power Connectors | 8 |
| PCI Express Connector | Yes |
| PCI Express Version | 5.1 |
| Number of (6+2 pin) PCI Express Power Connectors | 5 |
| Number of (4+4 pin) CPU Power Connectors | 2 |
| Power Description | |
| Input Voltage | 120 V, 230 V |
| Output Voltage | 3.3 V, 5 V, 12 V, 5 V SB |
| Output Voltage Detail | 3.3 V @ 20 A 5 V @ 20 A 12 V @ 125 A 5 V SB @ 3 A |
| Output Current | 20 A (3.3 V & 5 V), 125 A (12 V), 3 A (5 V SB) |
| Output Power | 1500 W |
| Reliability | |
| MTBF | 100000 Hour |
| Physical Characteristics | |
| Form Factor | Internal, ATX |
| Miscellaneous | |
| Energy Efficiency Certification | 80 Plus Platinum |
| Other Information | |
| Product Family | HXi |
| Input Frequency | 47~63 Hz |
