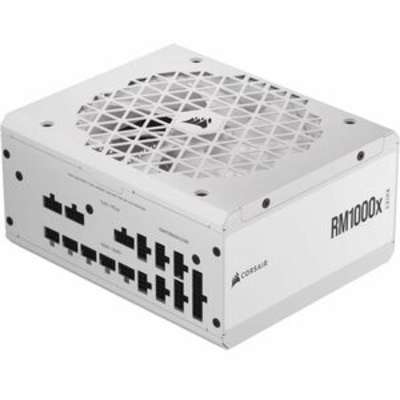

Corsair RMX Shift White Series, RM1000X Shift White, 1000 Watt, 80 Plus Gold, Fully Modular


AED1,699.00

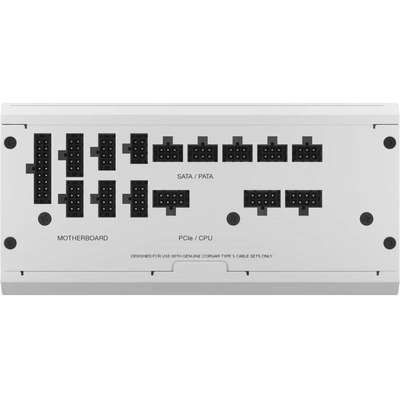

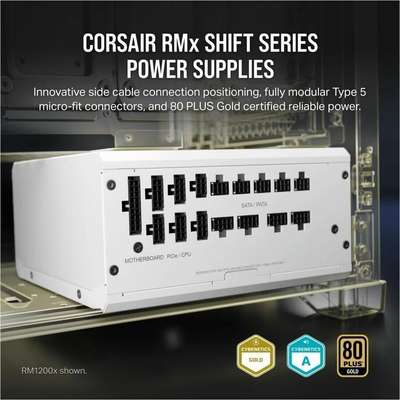

NO MORE FUMBLING AROUND | SIDE MOUNTED CONNECTIONS

An innovative side PSU panel with modular connections lets you comfortably plug cables into the side face of the PSU, making it easier to connect and manage your cables than ever before.

ON THE CUTTING EDGE | ATX 3.1 CERTIFIED

The ATX 3.1 standard demands a high level of reliability and power efficiency. While many CORSAIR PSUs meet these requirements, RMx SHIFT Series PSUs are formally certified for ATX 3.1 compliance.

PCIe 5.1 12V-2×6 GPU cables included for use with modern graphics cards such as the NVIDIAĀ® GeForce RTXā„¢ 40 Series.

FULLY MODULAR | CORSAIR TYPE 5 MICRO-FIT CONNECTORS

Fully modular, CORSAIR Type 5 Gen 1 micro-fit PSU cables, so you only connect the cables your system needs while taking up less space.

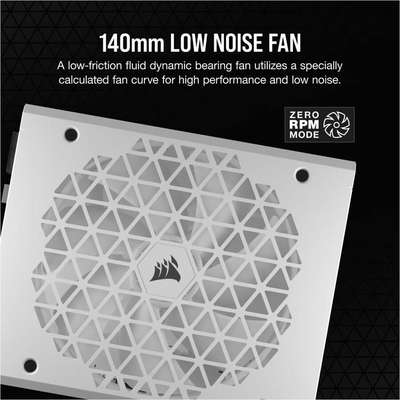

140mm FAN WITH ZERO RPM MODE SUPPORT

A low-friction, fluid dynamic bearing 140mm fan with Zero RPM mode support ensures your PSU runs cool while staying virtually silent when not under high load.

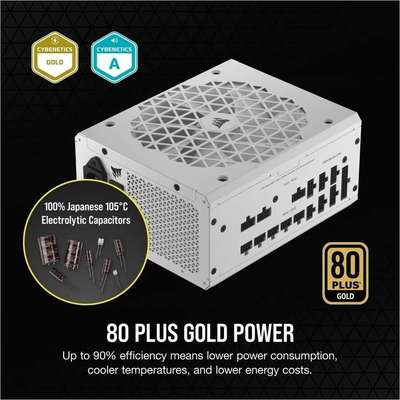

80 PLUS GOLD CERTIFIED

Steady power output at up to 90% efficiency, and Cybenetics- certified for lower power consumption, less noise, and cooler temperatures.

105°C-RATED CAPACITORS

Built with 100% Industrial-grade, 105°C-rated Japanese primary electrolytic capacitors for unwavering power and reliability.

CASE COMPATIBILITY

The PSU and cables will fit in any PC case that supports ATX PSU format and is at least 210mm (8.3″) wide. The PSU must also be accessible from the side when mounted in the case.

SKU: CP-9020275-NA Category: Tag:
Category Specification
General Information
Product Name RMX Shift White Series, RM1000X Shift White, 1000 Watt, 80 Plus Gold, Fully Modular
Manufacturer Part Number CP-9020275-NA
Product Series RMx
Product Model RPS0161
Product Type Power Supply
Technical Information
Specification Compliance ATX12V v3.1, ATX 3.1
Efficiency 90%
Number of Fans 1
Fan Bearing Type Fluid Dynamic Bearing
Fan Diameter 140 mm
Modular Yes
Modular Type Fully Modular
NVIDIA SLI Supported Yes
Features Low Noise
Interfaces/Ports
Number of SATA Power Connectors 16
PCI Express Connector Yes
PCI Express Version 5.1
Number of (6+2 pin) PCI Express Power Connectors 4
Number of (4+4 pin) CPU Power Connectors 2
Power Description
Input Voltage 120 V, 230 V
Output Voltage 3.3 V, 5 V, 12 V, 5 V SB
Output Voltage Detail 3.3 V @ 20 A
5 V @ 20 A
12 V @ 83.3 A
5 V SB @ 3 A
Output Current 20 A (3.3 V & 5 V), 83.3 A (12 V), 3 A (5 V SB)
Output Power 1000 W
Reliability
MTBF 100000 Hour
Physical Characteristics
Color Family White
Product Color White
Form Factor Internal
Miscellaneous
Energy Efficiency Certification 80 Plus Gold
Environmental Compliance Restriction of Hazardous Substances (RoHS)
Other Information
Product Family RMx
Input Frequency 47~63 Hz
