SMALL AND MIGHTY
Don’t let the size fool you – this SFX power supply packs 80 PLUS Platinum-rated power, perfect for the most power-dense small form-factor PCs.
50°C CONTINUOUS OPERATING TEMPERATURE
Ensures reliable power for your SFF PC, even under high-stress conditions.
105°C-RATED CAPACITORS
Built with 100% Industrial-grade, 105°C-rated Japanese electrolytic capacitors for unwavering power and reliability.
ATX 3.1 CERTIFIED
The ATX 3.1 standard demands a high level of reliability and power efficiency. While many CORSAIR PSUs meet these requirements, SF Series PSUs are formally certified for ATX 3.1 compliance.
PCIe 5.1 12VHPWR GPU cable included for use with modern graphics cards such as the NVIDIA® GeForce RTX™ 40 Series.

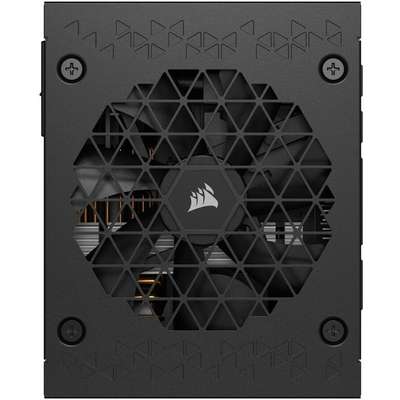

QUIET OPERATION WITH ZERO RPM MODE
A fluid dynamic bearing cooling fan keeps noise to a minimum, with Zero RPM mode to eliminate fan noise completely at low to medium loads.
FULLY MODULAR TYPE 5 MICRO-FIT CONNECTORS
Connect only what you need, with flexible cabling to take up less space for tidy cable management in small cases.
| Category | Specification |
|---|---|
| General Information | |

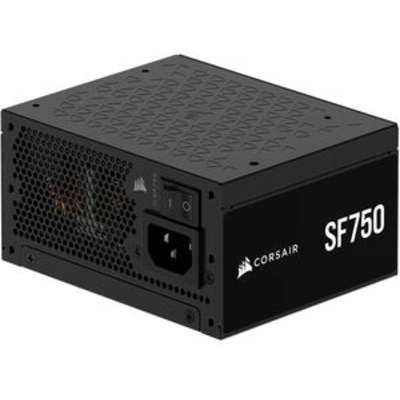

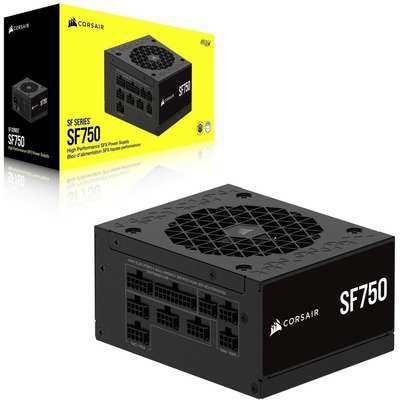

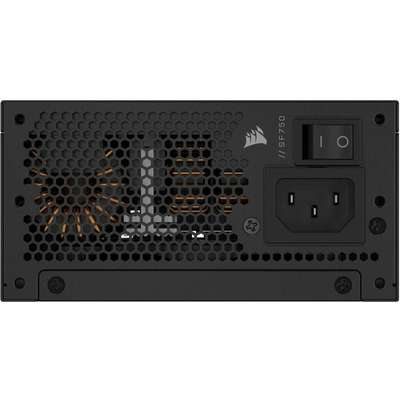

| Product Name | SF Series SF750 80 Plus Platinum Cybenetics Platinum SFX Power Supply |
| Manufacturer Part Number | CP-9020284-NA |
| Product Series | SF |
| Product Model | RPS0205 |
| Product Type | Power Supply |
| Technical Information | |
| Specification Compliance | ATX 3.1, ATX12V v3.1 |
| Number of Fans | 1 |
| Fan Bearing Type | Fluid Dynamic Bearing |
| Fan Diameter | 92 mm |
| Modular | Yes |
| Features | Compact |
| Interfaces/Ports | |
| Number of SATA Power Connectors | 3 |
| PCI Express Connector | Yes |
| Number of (6+2 pin) PCI Express Power Connectors | 2 |
| Number of (4+4 pin) CPU Power Connectors | 2 |
| Power Description | |
| Input Voltage | 120 V AC, 230 V AC |
| Number of +12V Rails | 1 |
| Output Voltage | 3.3 V DC, 5 V DC, 12 V DC, 5 V SB |
| Output Voltage Detail | 3.3 V DC @ 20 A 5 V DC @ 20 A 12 V DC @ 62.5 A 5 V SB @ 3 A |
| Output Power | 750 W |
| Reliability | |
| MTBF | 100000 Hour |
| Physical Characteristics | |
| Color Family | Black |
| Product Color | Black |
| Form Factor | SFX |
| Miscellaneous | |
| Energy Efficiency Certification | 80 Plus Platinum |
| Other Information | |
| Product Family | SF |
| Input Frequency | 63 Hz |
