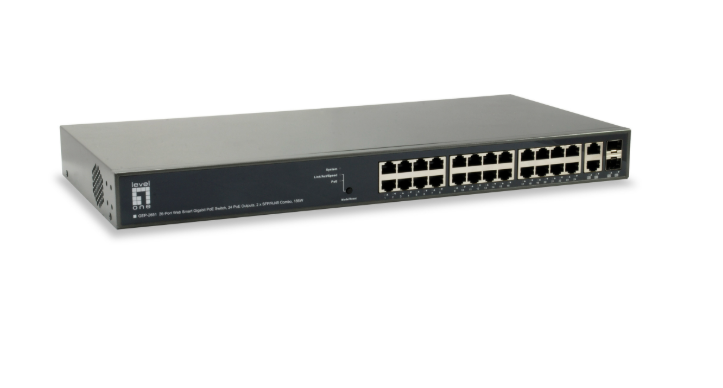

CP Tech / Level One – GEP-2651 – TURING 26-Port Web Smart Gigabit PoE Switch – 24 PoE Outputs/2xSFP/RJ45 Combo – 802.3at/af PoE – 185W

Add to Wishlist

AED3,799.00

Add to Wishlist
  • 4 Gigabit PoE ports and 2 Gigabit RJ45/SFP combo ports
  • IEEE 802.3af/at PoE compliant to simplify deployment and installation
  • Total PoE power budget: 185W, up to 30W per port
  • QoS control for traffic prioritization and bandwidth management
  • DHCP Client/Server
  • Supports IPv4/IPv6 network operation
  • Minimize carbon footprint with advanced energy efficient technology (IEEE 802.3az)
  • IEEE 802.1d/w/s Spanning Tree Protocol (STP) and port mirroring
  • IP Multicast Filtering through IGMP Snooping V1 / V2 / V3
SKU: GEP-2651 Category: Tag:
  • Specifications:
  • Standards: : IEEE 802.3u 100-BASE-TX, Fast Ethernet: IEEE 802.3ab 1000BASE-T, Gigabit Ethernet: IEEE 802.3z 1000BASE-X, Gigabit Ethernet: IEEE 802.1p Quality of Service (QoS): IEEE 802.1X Port-based Network Access Control (PNAC): IEEE 802.1Q Virtual LANs (VLANs): IEEE 802.1D MAC Bridges: IEEE 802.1d Standard Spanning Tree Protocol: IEEE 802.1s Multiple Spanning Tree (MSTP): IEEE 802.1w Rapid Spanning Tree Protocol (RSTP): IEEE 802.3ad Link Aggregation Control Protocol (LACP): IEEE 802.3af Power over Ethernet (PoE): IEEE 802.3at Power over Ethernet Plus (PoE+): IEEE 802.3az Energy-Efficient Ethernet
  • Protocols: Link Layer Discovery Protocol (LLDP)
  • Memory: RAM : 128:MB Flash : 32:MB
  • Buffer Memory: 512 KB
  • Port: 24x 10/100/1000Mbps RJ45 PoE port; 2x Gigabit RJ45/SFP combe port
  • Button/Knob: Mode / Reset Button
  • Indicator: System, Link/Act/Speed, PoE
  • Transmission Method: Store-and-Forward
  • Power Input: 100-240 VAC 50~60 Hz
  • Power Consumption: 18.29W (without PoE)
  • Backplane (Gbps): 52Gbps
  • MAC Address Table: 8K
  • Data Rate: 10/100/1000Mbps
  • Power Saving: IEEE 802.3az Energy Efficient Ethernet: : Automatically turns power off on RJ-45 port when detecting link down or Idle of client: Cable length detection: Adjusts the signal strength based on the cable length: Reduces the power consumption for cables shorter
  • Operating Temp: 0° C to 45° C
  • Storage Temp: -20° C to 70° C
  • Humidity: 10 to 90% (non-condensing)
  • Mount: 19-inch rack-mountable:General:
  • Device Management System (DMS)
  • Virtual Local Area Network (VLAN):
  • 802.1Q tag-based VLAN – up to 256 VLANs and 4096 VLAN IDs
  • Port-based VLAN
  • MAC-based VLAN
  • Q-iN-Q (double tag) VLAN
  • DHCP: DHCP Client
  • IPv6:
  • Native IPv6 and IPv4/IPv6 Dual Stack
  • IPv6 host mode; IPv6 stateless address auto-configuration; Duplicate Address Detection (DAD)
  • ICMP v6;
  • IGMP:
  • IGMP v1/v2/v3 snooping; IGMP Queried; IGMP Proxy
  • IPv6 QoS Prioritize IPv6 packets in hardware
  • Port Mirroring:
  • Many-to-One TX/RX
  • QoS Class of service (CoS)
  • DiffServ (DSCP)
  • Flow Control: PoE:
  • Power Budget: Max. 185W
  • Power Output: Up to 30W per port
  • Protection: Circuit protection to prevent power interference between ports
  • Management: PoE status, PoE on/off scheduling, PoE power delay, PoE Auto checking, Per port power priority setting
  • Pin Assignment: 1/2(+), 3/6(-)
  • Security: ACLs: L2/L3/L4; ACLs: IPv6 Support
  • Port Security (MAC-based)
  • IP Source Guard
  • ARP Inspection
  • Mac Flooding
  • Storm Control
  • RADIUS Authentication 802.1x
  • s and SSL (Secured Web)
  • BPDU Guard
  • STP Root Guard
  • DHCP Snooping
  • Loop Protection: Management:
  • Switch Management:
  • , S
  • DHCP: Client, Option 66, Option 67
  • Event/Error Log: Syslog, SMTP(RFC821)
  • Management Access Filtering: SNMP, Web
  • PoE Management: Scheduling, Auto-Checking, Power DelaySNMP (v1/v2c/v3)
  • RMON (1, 2, 3 & 9 Groups)
  • Software Upgrade
  • Configuration Export/Import
  • Port Mirroring
  • LLDP ( )
  • LLDP-MED ( )
  • CDP Aware
  • IPv6 Management
  • NTP
  • L3: DHCP Server; Static Route
  • 68 Mpps
  • Jumbo Frame (K): 9.6K
  • Switching Capacity: 52 Gbps
  • Dimensions (WxDxH): (442 x 211x 44mm)
  • Weight: 6.83Lbs (3100g)
  • MTBF: 77° F (25° C): 211, 272 (hr) 104° (40° C): 103, 032(hr)
  • Approval and Compliance: EMI/EMS: CE, FCC Part 15 Class A, ROHS
  • Safety: UL 60950-1, 2nd Edition, 2014-10-14 (Information Technology Equipment – Safety – Part 1: General Requirements) CAN/CSA C22.2 No. 60950-1-07, 2nd Edition, 2014-10 (Information Technology Equipment – Safety – Part 1: General Requirements)
