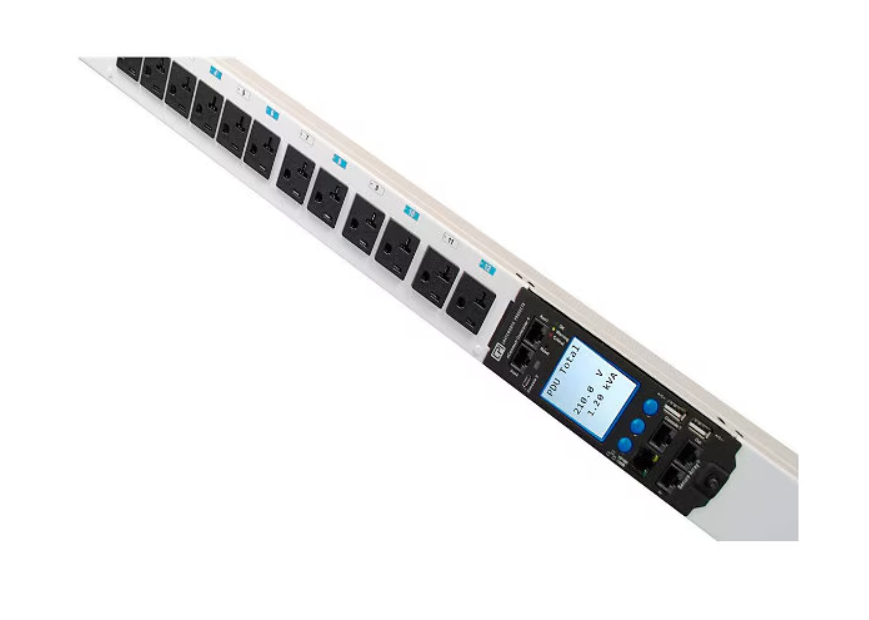

CPI Metered eConnect PDU E1-2002-E – power distribution unit – 2.9 kW – TAA Compliant

Add to Wishlist

Quick tech specs

  • 2002-E
  • AC 120 V
  • 1-phase
  • output connectors: 24 (24 x NEMA 5-20)
  • 10 ft cord
  • TAA Compliant
  • Power distribution unit (rack-mountable)
  • 2.9 kW
  • input: NEMA L5-30P
  • 42U
  • glacier white

AED4,499.00

Add to Wishlist

Know your gear

The CPI Metered eConnect PDU by Chatsworth provides a reliable power distribution solution designed for indoor use. With a robust power capacity of 2.9 kW at 120 V and accommodating a maximum current of 30 A, this unit ensures efficient power management for various equipment. The 3 m power cable length offers flexibility in installation, while the toolless mounting feature allows for quick setup in rack-mountable environments. This power distribution unit performs under diverse conditions, with an operating temperature range from 0°C to 65°C and humidity tolerance from 5% to 95%. It includes features such as an LED display for easy monitoring and a current meter that enhances operational awareness. With 24 output connectors (power NEMA 5-20), users can manage multiple devices while ensuring safety with built-in circuit protection and locking outlets.
SKU: E1-2002-E Category: Tag:
Category Attribute Value
Overview Brand CPI
Product Line CPI Metered eConnect PDU
Model E1-2002-E
Manufacturer cpi
Connectivity Input Connectors 1
Power Emergency Power Off Current meter, LED display, Locking outlets, Vertical orientation
Frequency 50/60 hertz
Frequency Provided 50/60 hertz
Input Connector Type Power NEMA L5-30P
Input Wiring 1-phase
Max Input Current 30 ampere
Output Connector Quantity 24
Output Connector Type 24 x power NEMA 5-20
Power Output Connectors Details 24 x power NEMA 5-20
Power Provided 2.9 kilograms per millimetere
Provided Voltage AC 120 volt
Required Voltage AC 120 volt
Technical Information Form Factor (Power Device) Rack-mountable
Max Operating Temperature 149 degree Fahrenheit
Min Operating Temperature 32 degree Fahrenheit
Operating Humidity 5 – 95% RH (non-condensing)
Protection Type Circuit breaker
Product Information Cord Length 10 ft
Features Indoor use, Low-profile design, Tool-less mounting
Packaged Quantity 1
Product Type Power distribution unit
Subcategory Power distribution devices
Included Items Cables Power cable 10 ft
Dimensions & Weight Height 71.9 inch
Height (Rack Units) 42
Weight 18.08 lbs
Width 2.2 inch
Depth 2.3 inch
Physical Characteristics Color Glacier white
Color Category White
