04 3550600 052 7036860

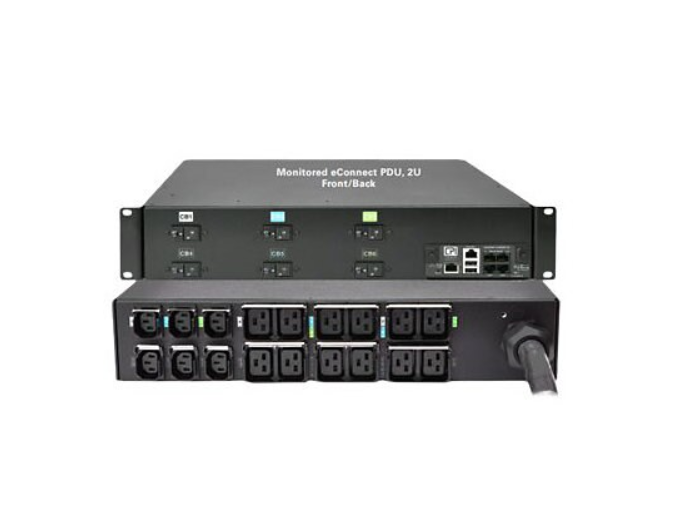

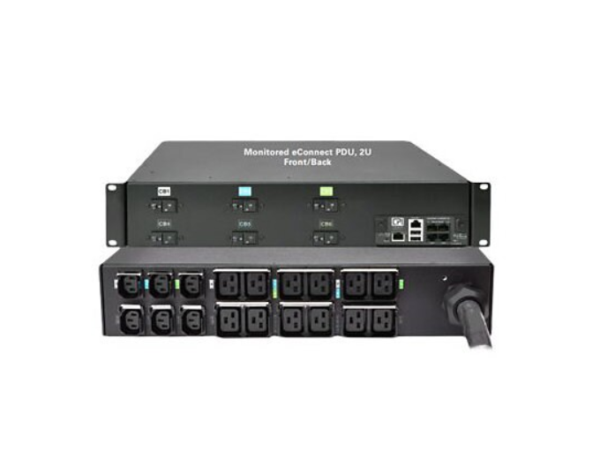

CPI Monitored eConnect EA-3464-CE – power distribution unit – 8.6 kW – TAA Compliant

Add to Wishlist

Quick tech specs

  • 3464-CE
  • AC 120/208 V
  • 3-phase
  • input: NEMA L21-30P
  • 2U
  • North America
  • TAA Compliant
  • Power distribution unit (rack-mountable)
  • 8.6 kW
  • Ethernet 10/100/1000, USB, serial
  • output connectors: 24 (18 x IEC 60320 C13, 6 x IEC 60320 C19)
  • 10 ft cord
  • black

AED16,399.00

Add to Wishlist

Know your gear

The Chatsworth CPI Monitored eConnect power distribution unit provides a reliable solution for managing power distribution. With a robust design that features a length of 3 m, this power cable ensures flexibility in your setup, whether for indoor use or within a rack-mounted environment. It operates seamlessly within a temperature range of 0°C to 65°C and is equipped to handle humidity levels between 5 – 95% RH. The unit includes multiple power output connectors, such as 6 x IEC 60320 C19 and 18 x IEC 60320 C13, allowing for diverse connectivity options to meet your needs. Equipped with circuit breakers and LED indicators, it provides safe operation and easy monitoring in any environment.
SKU: EA-3464-CE Category: Tag:
Overview
Attribute
Details
Brand CPI
Product Line CPI Monitored eConnect
Model EA-3464-CE
Manufacturer cpi
Network & Communication
Attribute Details
Remote Management CLI, HTTP, HTTPS, LDAP, RADIUS, SNMP 1, SNMP 2, SNMP 3, SSH
Remote Management Interface Ethernet 10/100/1000, Serial, USB
Connectivity
Attribute Details
Input Connectors 1
Interface Provided 1 x management (Gigabit Ethernet) – RJ-45
2 x AUX – RJ-45
2 x console – 4 pin USB Type A
2 x Secure Array – RJ-45
2 x USB – 4 pin USB Type A
Power
Attribute Details
Emergency Power Off Hydraulic-Magnetic breakers, LED indicators, Locking outlets, Monitored
Frequency 50/60 Hz
Input Connector Type Power NEMA L21-30P
Input Wiring 3-phase
Max Input Current 30 A
Output Connector Quantity 24
Output Connector Type 18 x IEC 60320 C13
6 x IEC 60320 C19
Power Output Connectors 18 x IEC 60320 C13
6 x IEC 60320 C19
Power Provided 8.6 kilograms per millimetre (Note: likely a unit error — confirm)
Required Voltage AC 120/208 V
Technical Information
Attribute Details
Form Factor Rack-mountable
Max Operating Temperature 149°F
Min Operating Temperature 32°F
Operating Humidity 5 – 95% RH (non-condensing)
Protection Type Circuit breaker
Product Information
Attribute Details
Cord Length 10 ft
Country North America
Features For indoor use, Horizontal orientation
Packaged Quantity 1
Product Type Power distribution unit
Subcategory Power distribution devices
Included Items
Attribute Details
Cables Power cable – 10 ft
Dimensions & Weight
Attribute Details
Height (Rack Units) 2U
Physical Characteristics
Attribute Details
Color Black
Color Category Black
