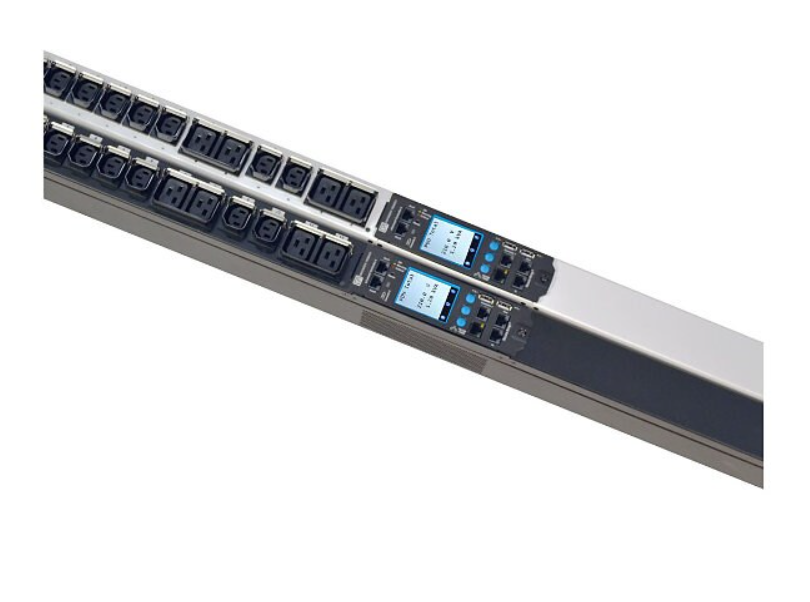

CPI Switched eConnect PDU EA-5002-CE – Redundancy Pack – power distribution unit – 2.9 kW – TAA Compliant

Add to Wishlist

Quick tech specs

  • 5002-CE
  • power distribution unit (rack-mountable)
  • 2.9 kW
  • Ethernet 10/100/1000
  • output connectors: 24 (24 x NEMA 5-20)
  • 10 ft cord
  • TAA Compliant (pack of 2)
  • Redundancy Pack
  • AC 120 V
  • 1-phase
  • input: NEMA L5-30
  • 42U
  • black, glacier white

AED18,099.00

Add to Wishlist

Know your gear

Switched eConnect PDUs provide remote monitoring of power at the rack level and individual outlet control, making it possible to remotely turn power on or off at each outlet.
SKU: EA-5002-CE Category: Tag:
Category Attribute Value
Overview Brand CPI
Product Line CPI Switched eConnect PDU
Model EA-5002-CE
Manufacturer cpi
Network & Communication Remote Management CLI, HTTP, HTTPS, LDAP, RADIUS, RESTful API, SNMP 1, SNMP 2, SNMP 3, SSH, Web GUI
Remote Management Interface Ethernet 10/100/1000
Connectivity Input Connectors 1
Interface Provided 1 x console – RJ-45, 1 x management (Gigabit Ethernet) – RJ-45, 1 x management (USB) – mini-USB Type B, 2 x Secure Array – RJ-45, 2 x USB – 4 pin USB Type A
Power Emergency Power Off Bistable latching relays, Branch Circuit Monitoring System (BCMS), Color-coded labels, Current meter, Electronic lock integration, Energy meter, Environmental sensor ready, Firmware upgradable, Individually switchable sockets, Input metered, LCD display, LED indicator, Locking outlets, Outlet grouping, Power cable IP20 compliant, Power factor meter, Power measuring, Replaceable controller, SD-card transfers PDU identity, Secure Array technology, Simplified load balancing, Voltage meter, Zero Touch Provisioning (ZTP)
Frequency 50/60 hertz
Frequency Provided 50/60 hertz
Input Connector Type Power NEMA L5-30
Input Wiring 1-phase
Max Input Current 30 ampere
Output Connector Quantity 24
Output Connector Type 24 x power NEMA 5-20
Power Output Connectors Details 24 x power NEMA 5-20 16 A
Power Provided 2.9 kilograms per millimetere (āš  Unit appears incorrect)
Provided Voltage AC 120 volt
Required Voltage AC 120 volt
Technical Information Form Factor (Power Device) Rack-mountable
Max Operating Temperature 149Ā°F
Min Operating Temperature -13Ā°F
Operating Humidity 5 – 95% (non-condensing)
Protection Type Circuit breaker
Product Information Cord Length 10 ft
Features Indoor use, Low-profile design, Password security, Power LED status, Vertical orientation
Kit Redundancy Pack
Packaged Quantity 2
Product Type Power distribution unit
Subcategory Power distribution devices
Included Items Cables Power cable 10 ft
Included Accessories 2 x toolless mounting buttons, Grounding kit cable
Dimensions & Weight Height 71.9 inch
Height (Rack Units) 42
Weight 18.08 lbs
Width 2.2 inch
Depth 2.8 inch
Physical Characteristics Color Black, Glacier white
Color Category Black, White
