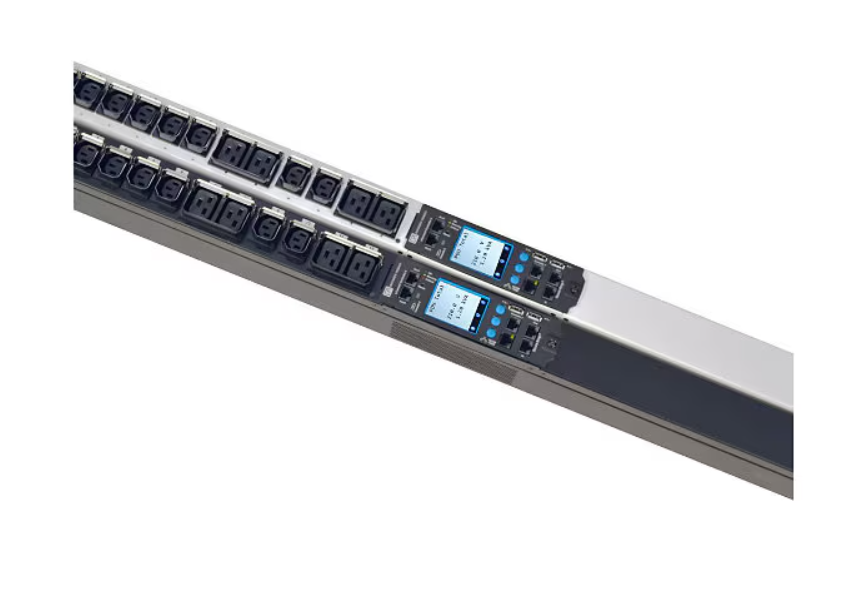

CPI Switched eConnect PDU EA-5004-CE – Redundancy Pack – power distribution unit – 5 kW – TAA Compliant

Add to Wishlist

Quick tech specs

  • 5004-CE
  • power distribution unit (rack-mountable)
  • 5 kW
  • Ethernet 10/100/1000, serial, USB
  • output connectors: 24 (24 x IEC 60320 C13)
  • 10 ft cord
  • TAA Compliant (pack of 2)
  • Redundancy Pack
  • AC 208 V
  • 1-phase
  • input: NEMA L6-30P
  • 42U
  • black, glacier white

AED17,299.00

Add to Wishlist

Know your gear

Enhance power management with the CPI Switched eConnect PDU from Chatsworth, designed for optimal performance in demanding environments. This rack-mountable power distribution unit features a robust 42 rack unit height and provides reliable power input at AC 208 V, making it suitable for various applications. With a power capacity of 5 kW and 24 output connectors, it ensures that all your devices are powered efficiently and safely.
The product includes multiple management interfaces, including Gigabit Ethernet and USB connections, allowing for seamless remote monitoring and control. Designed for indoor use, it supports a wide range of environmental conditions with an operating temperature of 0°C to 65°C and a humidity range of 5 – 95%. Additional features include password security and a low-profile design for easier organization and accessibility, providing a versatile solution for any server room setup.
SKU: EA-5004-CE Category: Tag:
Category Attribute Value
Overview Brand CPI
Product Line CPI Switched eConnect PDU
Model EA-5004-CE
Manufacturer cpi
Network & Communication Remote Management CLI, HTTP, HTTPS, LDAP, RADIUS, RESTful API, SNMP 1, SNMP 2, SNMP 3, SSH, Web GUI
Remote Management Interface Ethernet 10/100/1000, Serial, USB
Connectivity Input Connectors 1
Interface Provided 1 x console – RJ-45, 1 x management (Gigabit Ethernet) – RJ-45, 1 x management (USB) – mini-USB Type B, 2 x Secure Array – RJ-45, 2 x USB – 4 pin USB Type A
Power Emergency Power Off Bistable latching relays, Branch Circuit Monitoring System (BCMS), Color-coded labels, Current meter, Electronic lock integration, Energy meter, Environmental sensor ready, Firmware upgradable, Individually switchable sockets, Input metered, LCD display, LED indicator, Locking outlets, Outlet grouping, Power cable IP20 compliant, Power factor meter, Power measuring, Replaceable controller, SD-card transfers PDU identity, Secure Array technology, Simplified load balancing, Voltage meter, Zero Touch Provisioning (ZTP)
Frequency 50/60 hertz
Frequency Provided 50/60 hertz
Input Connector Type Power NEMA L6-30P
Input Wiring 1-phase
Max Input Current 30 ampere
Output Connector Quantity 24
Output Connector Type 24 x power IEC 60320 C13
Power Output Connectors Details 24 x power IEC 60320 C13 10 A
Power Provided 5 kilograms per millimetere
Provided Voltage AC 208 volt
Required Voltage AC 208 volt
Technical Information Form Factor (Power Device) Rack-mountable
Max Operating Temperature 149°F
Min Operating Temperature 32°F
Operating Humidity 5 – 95% (non-condensing)
Protection Type Circuit breaker
Product Information Cord Length 10 ft
Features Indoor use, Low-profile design, Password security, Power LED status, Vertical orientation
Kit Redundancy Pack
Packaged Quantity 2
Product Type Power distribution unit
Subcategory Power distribution devices
Included Items Cables Power cable 10 ft
Included Accessories 2 x toolless mounting buttons, Grounding kit cable
Dimensions & Weight Height 71.9 inch
Height (Rack Units) 42
Weight 18.08 lbs
Width 2.2 inch
Depth 2.8 inch
Physical Characteristics Color Black, Glacier white
Color Category Black, White
