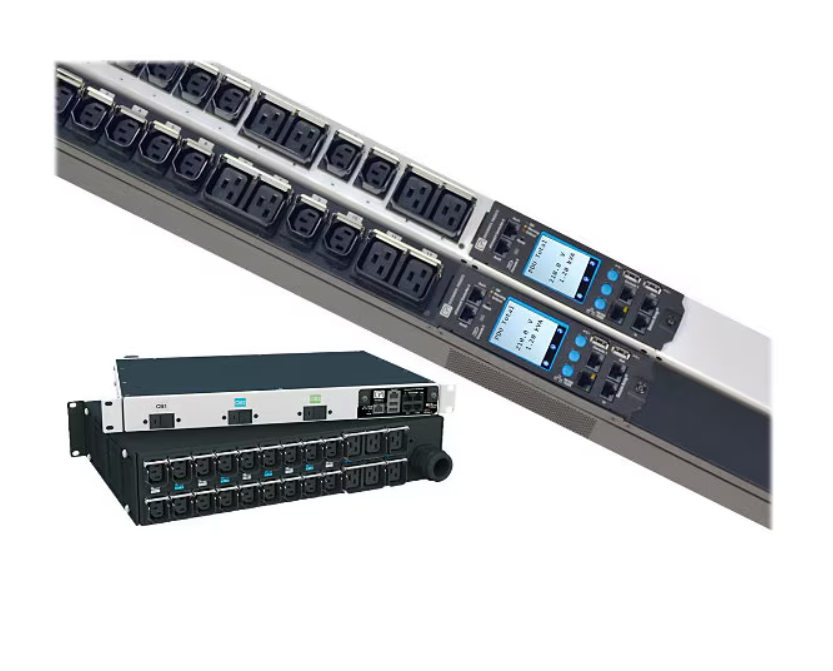

CPI Switched Pro eConnect PDU EA-6275-E – power distribution unit – 2.9 kW – TAA Compliant

Add to Wishlist

Quick tech specs

  • 6275-E
  • AC 120 V
  • 1-phase
  • input: NEMA L5-30P
  • 1U
  • North America
  • TAA Compliant
  • Power distribution unit (rack-mountable)
  • 2.9 kW
  • Ethernet 10/100/1000, USB, serial
  • output connectors: 12 (12 x NEMA 5-20)
  • 10 ft cord
  • glacier white

AED8,499.00

Add to Wishlist

Know your gear

The CPI Switched Pro eConnect PDU by Chatsworth offers a solution for power distribution in a rack-mounted format. Designed for indoor use, this power distribution unit features a power cable of 3 m length and maintains operational temperatures ranging from 0°C to 65°C with a humidity tolerance of 5 – 95% RH (non-condensing). The unit is equipped with 12 NEMA 5-20 output connectors for versatile power management and includes circuit protection through a circuit breaker to ensure safety and reliability in electrical distribution.
With multiple remote management protocols like SNMP and HTTPS, the PDU enables effective monitoring and control of power supply via a range of interfaces including USB and Ethernet. Password security enhances the product’s integrity, while thermal and voltage monitoring features provide critical data at a glance. The low-profile design, along with its inclusion of a rack mounting kit, supports integration into existing systems, making it a valuable addition to any server environment.
SKU: EA-6275-E Category: Tag:
Category Attribute Value
Overview Brand CPI
Product Line CPI Switched Pro eConnect PDU
Model EA-6275-E
Manufacturer cpi
Network & Communication Remote Management CLI, HTTPS, LDAP, RADIUS, SNMP 1, SNMP 2, SNMP 3
Remote Management Interface Ethernet 10/100/1000, Serial, USB
Connectivity Input Connectors 1
Interface Provided 1 x management (Gigabit Ethernet) – RJ-45, 1 x management (USB) – mini-USB Type B, 1 x serial – RJ-45, 2 x AUX – RJ-45, 2 x Secure Array – RJ-45, 2 x USB – 4 pin USB Type A
Power Emergency Power Off Bistable latching relays, Current meter, Firmware upgradable, Grounded, Humidity monitoring, Individually switchable sockets, LCD display, Locking outlets, Power factor meter, Power measuring, Secure Array technology, Thermal monitoring, Thermal protection, Vertical orientation, Voltage monitoring
Frequency 50/60 hertz
Frequency Provided 50/60 hertz
Input Connector Type Power NEMA L5-30P
Input Wiring 1-phase
Max Input Current 30 ampere
Output Connector Quantity 12
Output Connector Type 12 x power NEMA 5-20
Power Output Connectors Details 12 x power NEMA 5-20
Power Provided 2.9 kilograms per millimetere
Provided Voltage AC 120 volt
Required Voltage AC 120 volt
Technical Information Form Factor (Power Device) Rack-mountable
Max Operating Temperature 149 degree Fahrenheit
Min Operating Temperature 32 degree Fahrenheit
Operating Humidity 5 – 95% RH (non-condensing)
Protection Type Circuit breaker
Product Information Cord Length 10 ft
Country North America
Features Horizontal orientation, Indoor use, LDAP support, Low-profile design, Password security, Power LED status, RADIUS support
Packaged Quantity 1
Product Type Power distribution unit
Rack Mounting Kit Included
Subcategory Power distribution devices
Included Items Cables Power cable 10 ft
Included Accessories 2 x toolless mounting buttons, Grounding kit cable
Dimensions & Weight Height 1.7 inch
Height (Rack Units) 1
Weight 18.08 lbs
Width 17 inch
Depth 12 inch
Physical Characteristics Color Glacier white
Color Category White
