Tech overview
AED19,899.00

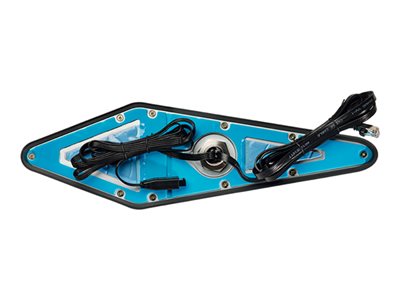

The R2100 Series is a high-bandwidth, exterior-mounted solution that provides mass transit, public safety, and other organizations with the latest in 5G performance. Integrating the modem, antennas, and router into a single aerodynamic, ruggedized casing, this simplified form factor reduces installation complexity and cost.
| Specifications |
|---|
| General |
| Device Type | Router |
| Bundled Services | 5 years NetCloud Mobile Performance Essentials + Advanced Plan |
| Enclosure Type | Desktop |
| Connectivity Technology | Wireless, wired |
| Data Link Protocol | IEEE 802.11b, IEEE 802.11a, IEEE 802.11g, IEEE 802.11n, IEEE 802.11ac, 2.5 Gigabit Ethernet, 802.11ax |
| Frequency Band | 2.4 GHz / 5 GHz |
| Performance |
| Stateful firewall throughput | 900 Mbps |
| IPS throughput | 650 Mbps |
| VPN throughput (IPSec) | 300 Mbps |
| Downlink bandwidth | 4.14 Gbps |
| Uplink bandwidth | 660 Mbps |
| Capacity |
| Concurrent VPN tunnels | 10 |
| Concurrent TCP sessions | 32000 |
| Typical client count | 100 |
| Encryption Algorithm |
| FIPS 140-3 Level 1 |
| Features |
| DFS support |
| PoE powered |
| 4×4 MIMO technology |
| Ignition Sense |
| Passive GNSS |
| Compliant Standards |
| IEEE 802.3at |
| IC, FCC, RoHS |
| MIL-STD 810G |
| WEEE, E Mark, REACH |
| IP67 |
| GCF, RCM, CP65 |
| IK09 |
| SAE J1455 |
| IEC/EN 62368-1 |
| CB Scheme |
| Line Properties |
| Line Coding Format | 256 QAM |
| Communications |
| Type | Wireless cellular modem |
| Cellular Protocol | UMTS, WCDMA, HSPA+, 5G NR |
| Generation | 4G, 5G |
| Cellular Band | LTE B13, LTE B2, LTE B4, LTE B12, LTE B3, LTE B7, LTE B20, LTE B1, LTE B25, LTE B26, LTE B5, LTE B39, LTE B28, LTE B29, LTE B8, LTE B66, LTE B30, LTE B40, LTE B41, LTE B38, LTE B18, LTE B19, LTE B46, LTE B14, LTE B32, LTE B42, LTE B43, LTE B48, LTE B71, 5G n78, 5G n1, 5G n2, 5G n3, 5G n5, 5G n7, 5G n8, 5G n12, 5G n20, 5G n25, 5G n28, 5G n40, 5G n41, 5G n66, 5G n71, 5G n77, 5G n79, LTE B34, DC-HSPA+ B1, DC-HSPA+ B2, DC-HSPA+ B4, DC-HSPA+ B5, DC-HSPA+ B6, DC-HSPA+ B8, DC-HSPA+ B9, DC-HSPA+ B19, 5G n38 |
| Max Transfer Rate | 4.14 Gbps |
| Internet of Things (IoT) |
| Internet of Things (IoT) Compatible | Yes |
| Communications Technology | LTE Cat 20 |
| Expansion / Connectivity |
| Expansion Slots | 2 (total) / 2 (free) x Nano-SIM |
| Antenna |
| Antenna | Internal |
| Antenna Qty | 4 |
| Power |
| Voltage Required | DC 9 – 36 V |
| Power Consumption Operational | 14.5 Watt |
| Miscellaneous |
| Cables Included | 1 x network cable – 5.5 ft |
| Localization | Worldwide |
| Dimensions & Weight |
| Width | 4.5 in |
| Depth | 15.2 in |
| Height | 3.2 in |
| Weight | 3.22 lbs |
