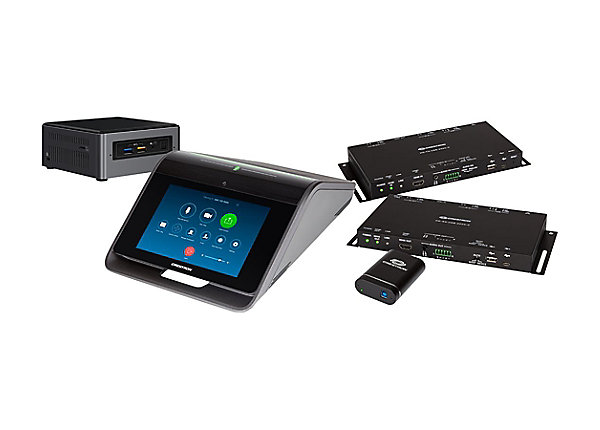

Crestron Zoom Rooms Expanded Package, No Camera CCS-UC-ZOOM-NC – video conf CCS-UC-ZOOM-NC
Availability:
10 in stock
28,899.00 د.إ
10 in stock
Crestron Zoom Rooms Expanded Package, No Camera CCS-UC-ZOOM-NC – video conf
Main Features
- Video conferencing kit
- with Intel NUC Kit NUC5i7RYH
- wireless keyboard with touchpad (CCS-UCA-KB-USB)
- HDMI & USB over HDBaseT transmitter (HD-TX-USB-2000-C)
- HDMI & USB over HDBaseT receiver (HD-RX-USB-2000-C)
- HD to USB video converter (HD-CONV-USB-100)
- Universal power pack (PW-2)
The Crestron Zoom Rooms Expanded Package includes an Intel NUC mini PC, which installs behind the room display(s) and comes preloaded with Zoom Rooms software. A set of installation cables is also included to accommodate a typical conference room application. Easy setup is accomplished using the included USB flash drive and wireless keyboard with touchpad.
This “expanded, no-camera” package includes three enhancements that differentiate it from the “basic” package (CCS-UC-ZOOM BASIC KIT).
An HDMI input is provided to enable video presentation using a laptop computer or other BYOD content source.
A signal extender is included to support larger rooms where the camera and display(s) are located many feet (meters) from the conference table. Just one CAT type cable is required between the table and display locations.
No camera is included, allowing any Zoom Rooms compliant USB camera to be used.
Technical Specifications
-
Audio Input
- Array microphone
- Integrated
-
Audio Output
- Speaker(s)
- 90 – 22000 Hz
- 11 Watt
-
Cabinet
- 7″ touch screen display
-
Cable
- HDMI cable
- 6 ft
- HDMI-DVI cable
- 3 ft
- Mini DisplayPort-HDMI cable
- 5.9 in
- Mini HDMI-HDMI adapter
- Network cable
- 5 ft
- USB cable
- USB extension cable
- 15 ft
- 12 ft
-
Cable Details
- 1
- 2
-
Display
- TFT active matrix
- 16:9
- Touch screen
- 17.8 cm
-
Display (Projector)
- 7 in
- 1280 x 720
-
Header
- Creston Solutions
- 1
- Crestron Zoom Rooms Expanded Package, No Camera
- CCS-UC-ZOOM-NC
- Intel NUC Kit NUC5i7RYH, wireless keyboard with touchpad (CCS-UCA-KB-USB), HDMI & USB over HDBaseT transmitter (HD-TX-USB-2000-C), HDMI & USB over HDBaseT receiver (HD-RX-USB-2000-C), HD to USB video converter (HD-CONV-USB-100), Universal power pack (PW-2
- Zoom
-
Input Device
- Touchscreen
- Wired
-
Interface Provided
- Audio / video
- DisplayPort output
- Mini DisplayPort
- Microphone
- 2
- RJ-9
- Network
- Ethernet 1000Base-T
- Network / power
- Ethernet 10Base-T/100Base-TX (PoE)
- 1
- RJ-45
- SuperSpeed USB 3.0
- 4
- 9 pin USB Type A
- USB 2.0
- 5 pin Micro-USB Type B
- USB host
- 4 pin USB Type A
- HDMI output
- 19 pin mini HDMI Type C
-
Miscellaneous
- Included
-
Networking
- Network adapter
- Wired, Wireless
- Bluetooth 4.0, Ethernet, Fast Ethernet, Gigabit Ethernet, IEEE 802.11ac
- Bluetooth 4.0, IEEE 802.11ac, IEEE 802.1x, IEEE 802.3at
- Auto-negotiation, Full duplex mode, Half duplex mode, SSH support
- DHCP, SFTP, TCP/IP, UDP/IP
-
Power Device
- Power adapter
- External
- 50/60 Hz
- 20 Watt
- AC 120/230 V
-
Software
- Crestron Zoom Rooms
-
System
- Video conferencing kit
-
Video Input
- None
