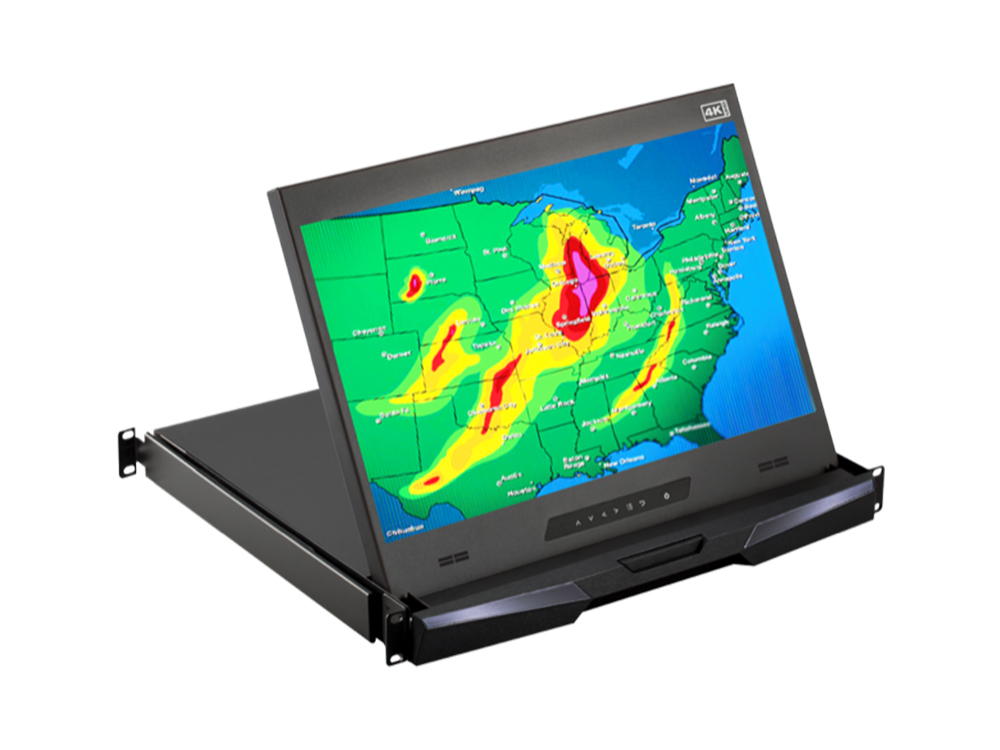

Cyber view RP-F1417 1U 17″ Ultra Short Depth FHD / 1080P Rack Monitor RP-F1417

Add to Wishlist

Features and Benefits

  • Ultra short depth 400mm / 15.7″
  • Ideal for open rack / short depth rack
  • 1U 17″ LCD display drawer
  • 1920 x 1080 native resolution / 16.7M colors ( 8-bit )
  • DVI-D + VGA video input
  • One Man installation design
  • Enhanced aesthetics with molded front panel and two point lock
  • 2-year standard warranty ( upgradable up to 5 years )

6,999.00 د.إ

Add to Wishlist

The CyberView F1417 Ultra Short Depth rack console features a 17″ FHD LED-backlit LCD capable of 1920 x 1080 video.
The new CyberView RP-F1417 is a Ultra Short Depth 1U 17″ FHD (1080P) Rack Mount Monitor Drawer. RP-F1417 features such as a flip-up design, adjustable brackets and built in LCD OSD that provides a space saving, cost effective alternative to lugging around a crash cart.

Benefits

  • 1U 17″ FHD LED-backlit LCD console drawer
  • 1920 x 1080 native resolution / 16.7M colors ( 8-bit )
  • HDMI + VGA ( speakers excluded ) + USB K/B & MS
  • Ideal for open rack / short depth rack
  • 104-key keyboard with either touchpad or trackball
  • One Man installation design
  • Enhanced aesthetics with 2-point lock
  • 2-year standard warranty ( upgradable up to 5 years )

Options

  • Dual stereo speakers for HDMI ( HS4.4 )
  • DP 1.0 + Speakers ( DP )
  • DVI-D + Speakers ( DVI )
  • Composite + Audio IN + Speakers ( BNC )
  • 3G-SDI Broadcast-grade input + Speakers ( SDI )
  • Front USB hub port for device access ( USB )
  • DC power : 12V / 24V / 48V / 125V / 250V
  • Keyboard available in 9 languages
  • SUN Micro keyboard options available
  • Projected Capacitive 10-pt touchscreen
  • Resistive 1-pt touchscreen
  • Integrated KVM Switch options
SKU: cyber view RP-F1417 Categories: , Tags: , , ,

RP-F1417 Specifications

Mechanical
Product Dimensions (H x W x D) 1.73 x 17.4 x 15.7 in
( 44 x 442 x 400 mm )
Package Dimensions (H x W x D) 4.7 x 23.1 x 29.8 in
( 120 x 588 x 758 mm )
Net Weight 24.2 lb ( 11 kg )
Gross Weight 33 lb ( 15 kg )
Mounting
Rack Mounting 1U
Mounting Depth 16.1 to 25.2 inch (410 to 640 mm)
Console Ports
Video Input VGA + DVI-D single link
Video Option HDMI 1.3 with HDCP 1.1
LCD Screen
LCD panel size ( diagonal ) 17.3″
Backlight type LED
Native resolution 1920 x 1080
Brightness (cd/m2) 400
Colors 16.7 M, 8-bit
Contrast Ratio (typ) 600 : 1
Viewing angle ( L/R/U/D ) 80/80/60/80
Response time ( ms ) 40
Dot pitch ( mm ) 0.1989
Display area ( mm ) 381.888H x 214.812V
Surface treatment Anti-glare, Hard-coating
Surface hardness 3H
MTBF (hrs) 50,000
Power
Power Input Auto-sensing 100 to 240VAC, 50 / 60Hz
Power Consumption
Screen on Max. 25W
Power saving mode Max. 4W
Power button on Max. 1W
Environmental
Operating Temperature 0 to 55°C Degree
Storage Temperature -20 to 60°C Degree
Operating Humidity 20~90%, non-condensing
Relative Humidity 5~90%, non-condensing
Operating Altitude 16,000 ft
Non-operating Altitude 40,000 ft
Shock 10G acceleration (11ms duration)
Vibration 10~300Hz 0.5G RMS random vibration
Regulatory Compliance
EMC FCC & CE certified
Safety CE / LVD certified
Environment RoHS2 & REACH compliant

The RP-F1417 is also known as the RPF1417.
