Power distribution unit

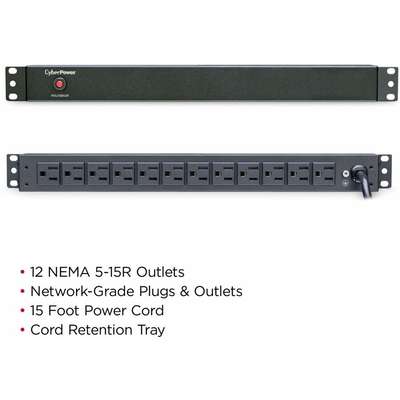

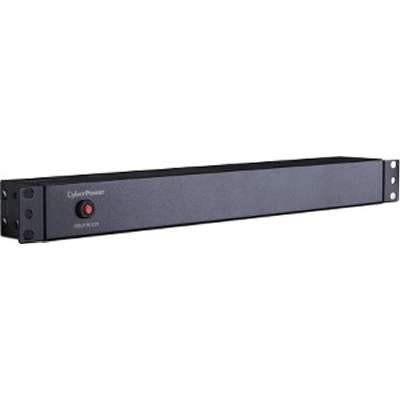

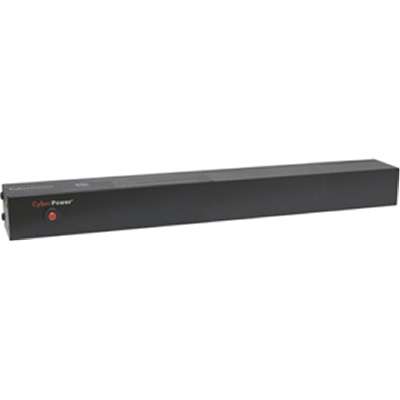

CyberPower 15A Basic PDU 1U 12 Out 5-15R 120V 12R Out 5-15P 15FT Cord
- Basic PDU

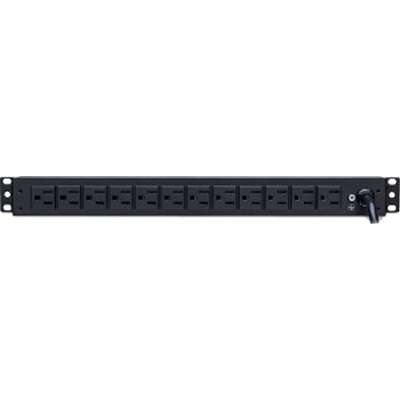

- 12 NEMA 5-15R output receptacles (12 Rear)
- 120V AC – 50/60Hz – 15-amp electrical capacity with circuit breaker
- 1U Rack Mount – Rugged industrial-grade metal housing
AED1,099.00
The CyberPower PDU15B12R, a 12-outlet (rear) rackmount basic power distribution unit (PDU), provides 100 – 125 V 15A output. It distributes power to 12 NEMA 5-15R receptacles from a single NEMA 5-15P input with unfiltered electrical pass-through. Designed for datacenters and other electrically demanding applications, the PDU15B12R has rugged, industrial-grade metal housing and a 15-foot AC power cord. It can be mounted either horizontally or vertically, includes a cord retention tray, and is ETL/RoHS certified. A limited lifetime warranty covers defects in materials and workmanship in the product under normal use and conditions. Power Distribution
Delivers AC power to servers, equipment, and connected devices via a power distribution unit.
| Category | Attribute | Details |
|---|
| General Information | Product Name | 15A Basic PDU 1U 12 Out 5-15R 120V 12R Out 5-15P 15FT Cord |
| Product Series | Basic PDU |
| Product Model | PDU15B12R |
| Product Type | PDU |
| Technical Information | PDU Type | Basic |
| Phase | Single Phase |
| Plug / Connector Type | NEMA 5-15P |
| Receptacle Type | NEMA 5-15R |
| Receptacle Detail | 12 x NEMA 5-15R |
| Protection Type | Overload Protection |
| Power Description | Input Voltage | 120 V AC |
| Input Voltage Range | 100 V AC – 125 V AC |
| Output Voltage Range | 100 V AC – 125 V AC |
| Physical Characteristics | Mounting Orientation | Vertical |
| Mount Type | Rack-mountable |
| Rack Height | 1U |
| Height | 1.8″ |
| Width | 17.5″ |
| Length | 1.5″ |
| Miscellaneous | Package Contents | Basic PDU15B12R 12-Outlets PDU Cord Retention Tray User Manual Screw Kit Cord Clip Kit Horizontal Mounting Brackets Vertical Mounting Brackets Product Registration Card |
| Energy Star | No |
| Environmentally Friendly | Yes |
| Environmental Compliance | Restriction of Hazardous Substances (RoHS) |
| Other Information | Product Family | Basic PDU |
Based on 0 reviews
