Power distribution unit

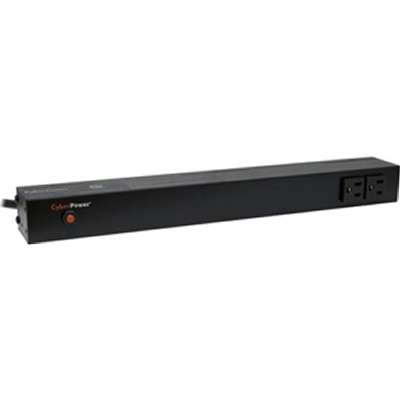

CyberPower 15A Basic PDU 1U 12 Out 5-15R 120V 2F / 10R Out 5-15P 15FT Cord
- Basic PDU

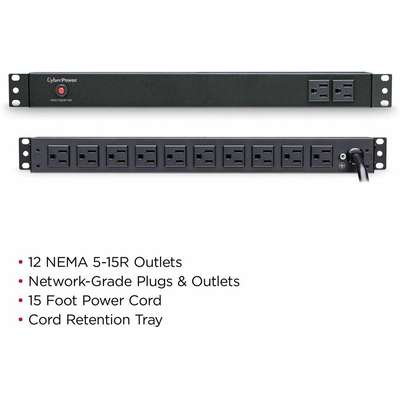

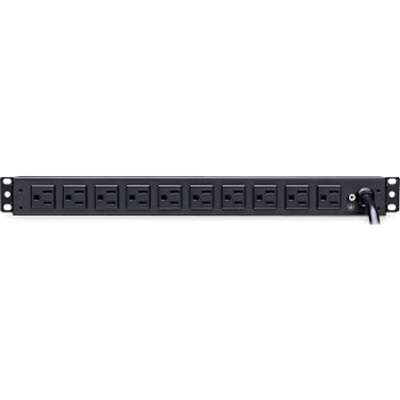

- 12 NEMA 5-15R output receptacles (2 Front/10 Rear)
- 120V AC – 50/60Hz – 15-amp electrical capacity with circuit breaker
- 1U Rack Mount – Rugged industrial-grade metal housing
AED1,099.00
The CyberPower PDU15B2F10R, a 12-outlet (2 front, 10 rear) rackmount basic power distribution unit (PDU), provides 120V 15A output. It distributes power to 12 NEMA 5-15R receptacles from a single NEMA 5-15P input with unfiltered electrical pass-through. Designed for datacenters and other electrically demanding applications, the PDU15B2F10R has rugged, industrial-grade metal housing and a 15-foot AC power cord. It can be mounted either horizontally or vertically, includes a cord retention tray, and is ETL/RoHS certified.
General Information
| Attribute | Details |
|---|---|
| Product Name | 15A Basic PDU 1U 12 Out 5-15R 120V 2F / 10R Out 5-15P 15FT Cord |
| Product Series | Basic PDU |
| Product Model | PDU15B2F10R |
| Product Type | PDU |
Technical Information
| Attribute | Details |
|---|---|
| PDU Type | Basic |
| Phase | Single Phase |
| Plug / Connector Type | NEMA 5-15P |
| Receptacle Type | NEMA 5-15R |
| Receptacle Detail | 12 x NEMA 5-15R |
| Protection Type | Overload Protection |
Power Description
| Attribute | Details |
|---|---|
| Input Voltage | 120 V AC |
| Input Voltage Range | 100 V AC – 125 V AC |
| Output Voltage Range | 100 V AC – 125 V AC |
| Input Current | 15 A |
Physical Characteristics
| Attribute | Details |
|---|---|
| Mounting Orientation | Vertical |
| Mount Type | Rack-mountable |
| Rack Height | 1U |

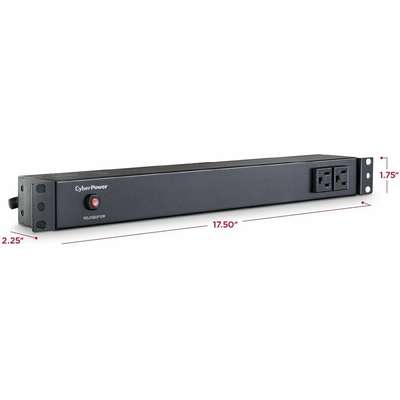

| Height | 1.8″ |
| Width | 17.5″ |
| Depth | 2.3″ |
