CyberPower 15A Metered PDU 0U 20 Out 5-15R 120V 20F Out 5-15P 10FT Cord

Add to Wishlist
  • Metered PDU ; Enclosure Construction: Steel
  • 20 NEMA 5-15R (20 Front) output receptacles
  • 120V AC – 50/60Hz – 15-amp electrical capacity with circuit breaker
  • 48 inch 0U Vertical Rack Mount – Rugged industrial metal housing

AED1,399.00

Add to Wishlist

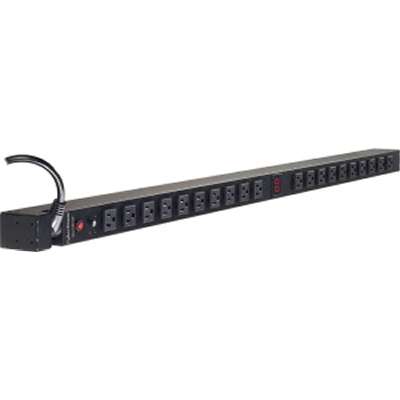

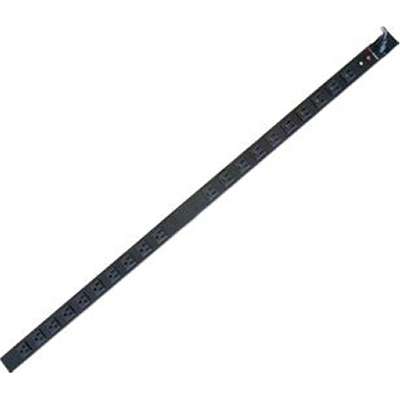

The CyberPower PDU15MV20F, a 20-outlet (front), 0U vertical rackmount metered power distribution unit (PDU), provides 100 – 125 V 15A output. It distributes power to 20 NEMA 5-15R receptacles from a single NEMA 5-15P plug with unfiltered electrical pass-through. The current draw for connected equipment is displayed in amps on the front LCD for real-time load monitoring. Designed for datacenters and other electrically demanding applications, the PDU15MV20F has rugged, industrial-grade metal housing, and a 10-foot AC power cord. It supports vertical, horizontal, and wall mount installation. The PDU15MV20F comes with a cord retention tray and is ETL/RoHS certified.

SKU: PDU15MV20F Category: Tag:

General Information

Attribute Details
Product Name 15A Metered PDU 0U 20 Out 5-15R 120V 20F Out 5-15P 10FT Cord
Product Series Metered PDU
Product Model PDU15MV20F
Product Type PDU

Technical Information

Attribute Details
PDU Type Metered
Phase Single Phase
Plug / Connector Type NEMA 5-15P
Receptacle Type NEMA 5-15R
Receptacle Detail 20 x NEMA 5-15R
Protection Type Overload Protection

Power Description

Attribute Details
Input Voltage 120 V AC
Input Voltage Range 100 V AC – 125 V AC
Output Voltage Range 100 V AC – 125 V AC
Input Current 15 A

Physical Characteristics

Attribute Details
Mounting Orientation Vertical
Mount Type Rack-mountable
Height 48″
Width 17.5″
Depth 2.3″
