CyberPower 20A Basic PDU 1U 8 Out C19/C13 208V 8R Out L6-20P 10FT Cord

Add to Wishlist
  • Basic PDU
  • 8 IEC-320 (2-C19/6-C13) output receptacles
  • 200/230V AC – 50/60Hz – 20-amp electrical capacity with circuit breaker
  • 1U Rack Mount – Rugged industrial-grade metal housing

AED1,099.00

Add to Wishlist

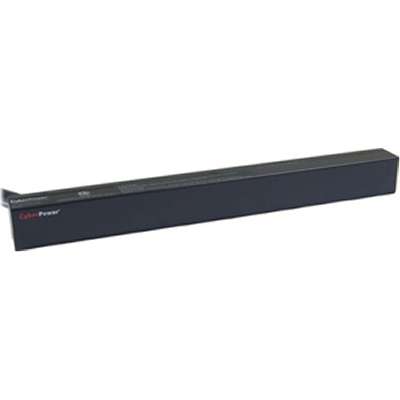

The CyberPower Basic PDU20BHVT8R 8-Outlets PDU provides 208V/230V 20A output. It distributes power to 8 IEC receptacles from a single NEMA L6-20P twist lock plug, with unfiltered electrical pass-through. Designed for datacenters and other electrically demanding applications, this unit has a rugged, industrial-grade metal housing and a 10-foot AC power cord. It can be mounted either horizontally or vertically, includes a cord retention tray and is ETL/RoHS certified.

SKU: PDU20BHVT8R Category: Tag:
Category Attribute Details
General Information Product Name 20A Basic PDU 1U 8 Out C19/C13 208V 8R Out L6-20P 10FT Cord
Product Series Basic PDU
Product Model PDU20BHVT8R
Product Type PDU
Technical Information PDU Type Basic
Plug / Connector Type NEMA L6-20P
Receptacle Type IEC 60320 C19, IEC 60320 C13
Receptacle Detail 2 x IEC 60320 C19
6 x IEC 60320 C13
Protection Type Overload Protection
Power Description Input Voltage 230 V AC
Input Voltage Range 200 V AC – 230 V AC
Output Voltage 200 V DC, 208 V AC, 230 V AC
Physical Characteristics Mounting Orientation Vertical
Mount Type Rack-mountable
Rack Height 1U
Height 1.8″
Width 17.5″
Length 1.5″
