CyberPower 20A Metered PDU 0U 208V L6-20P 30 C13 8 C19 38F Outlets 10FT Cord


  • Metered PDU
  • 38 IEC-320 (8-C19 and 30-C13) output receptacles
  • 200/230V AC – 50/60Hz – 20-amp electrical capacity with circuit breaker
  • 70 inch 0U Vertical Rack Mount – Rugged industrial metal housing

AED1,999.00

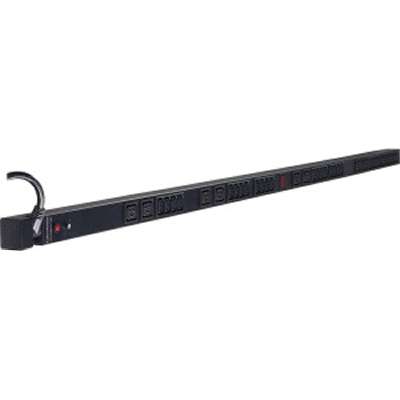

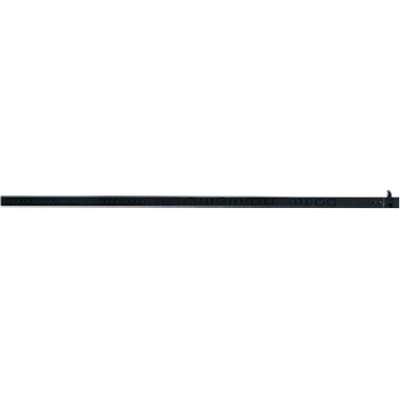

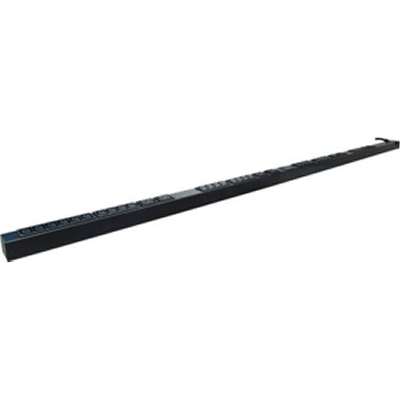

The CyberPower 38-outlet (38 Front) 0U vertical rack mount metered power distribution unit (PDU20MVHVT38F) provides 200/230V 20A output. It distributes power to 38 IEC-320 (8-C19 and 30-C13) receptacles from a single NEMA L6-20P twist lock plug, with unfiltered electrical pass-through. The current draw for connected equipment is displayed in amps on the front LCD for real-time load monitoring. Designed for datacenters and other electrically demanding applications, this unit has a rugged, industrial-grade metal housing and a 10-foot AC power cord. It supports vertical, horizontal and wall mount installation, includes a cord retention tray and is ETL/RoHS certified.

SKU: PDU20MVHVT38F Category: Tag:
Category Attribute Value
General Information Product Name 20A Metered PDU 0U 208V L6-20P 30 C13 8 C19 38F Outlets 10FT Cord
Product Series Metered PDU
Product Model PDU20MVHVT38F
Product Type PDU
Technical Information Plug / Connector Type NEMA L6-20P
Receptacle Type IEC 60320 C19, IEC 60320 C13
Receptacle Detail 8 x IEC 60320 C19, 30 x IEC 60320 C13
Protection Type Overload Protection
Power Description Input Voltage 230 V AC
Output Voltage 230 V AC
Physical Characteristics Mounting Orientation Vertical
Mount Type Rack-mountable
Height 70″
Width 1.8″
Depth 2.3″
