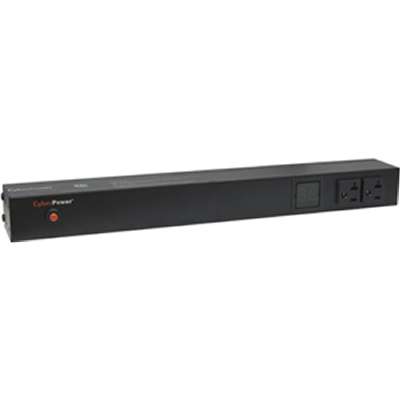

CyberPower 20A Metered PDU 1U 12 Out 5-20R 120V 2F / 10R Out L5-20P 15FT Cord


  • Metered PDU

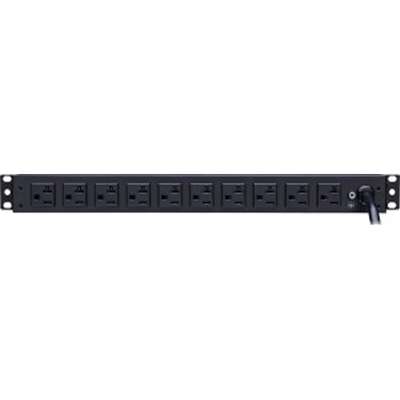

  • 12 NEMA 5-20R (2 Front/10 Rear) output receptacles
  • 120V AC – 50/60Hz – 20-amp electrical capacity with circuit breaker
  • 1U Rack Mount – Rugged industrial-grade metal housing

AED1,499.00

The CyberPower Metered PDU20MT2F10R 12-Outlets PDU provides 120V 20A output. It distributes power to 12 NEMA 5-20R receptacles from a single NEMA L5-20P twist lock plug, with unfiltered electrical pass-through. The current draw for connected equipment is displayed in amps on the front LCD for real-time load monitoring. Designed for datacenters and other electrically demanding applications, this unit has a rugged, industrial-grade metal housing and a 15-foot AC power cord. It can be mounted either horizontally or vertically, includes a cord retention tray and is ETL/RoHS certified.

SKU: PDU20MT2F10R Category: Tag:
Category Attribute Value
General Information Product Name 20A Metered PDU 1U 12 Out 5-20R 120V 2F / 10R Out L5-20P 15FT Cord
Product Series Metered PDU
Product Model PDU20MT2F10R
Product Type PDU
Technical Information Plug / Connector Type NEMA L5-20P
Receptacle Type NEMA 5-20R
Receptacle Detail 10 x NEMA 5-20R
Protection Type Overload Protection
Power Description Input Voltage 120 V AC
Output Voltage 120 V AC
Physical Characteristics Mounting Orientation Vertical
Mount Type Rack-mountable
Rack Height 1U
Height 1.8″
Width 17.5″
Length 2.3″
Miscellaneous Energy Star No
Country of Origin China
Environmentally Friendly Yes
Environmental Compliance Restriction of Hazardous Substances (RoHS)
Other Information Product Family Metered PDU
