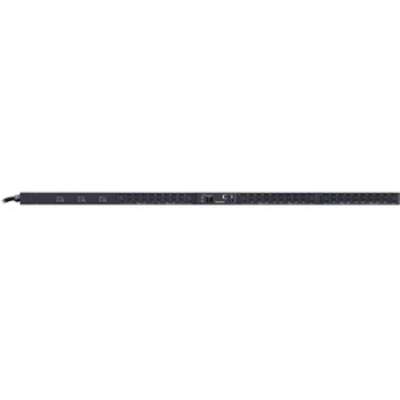

Streamline capacity planning and power management with the CyberPower PDU83106 switched metered-by-outlet 3-Phase PDU. Ideal for data centers and network closets, this unit provides outlet-level power monitoring in real time, along with individual outlet control for remote reboots, load shedding, controlled power-cycling, and more. The PDU83106 supports inputs between 200-240V and includes 30 IEC-320 outlets. Other features include ultra-low power consumption, multi-color outlet LEDs, an interactive digital display with selectable background color, high operating temperature range, built-in web interface, and power event notifications. |
Power distribution unit
CyberPower 3-Phase Switched Mbo PDU 30A 208V 24XC13/6XC19 30A Blue 3P+E
- Monitoring Level: Metered-by-Outlet
- Phase: 3-Phase
- Notifications: Email, SMS Text, and SNMP Trap
- Amps: 30A (Derated to 24A)
- Volts: 200-240V
- Frequency: 50/60Hz
- Input plug type: IEC-309 30A Blue (3P+E)
- Outlets: (24) IEC-320 C13 + (6) IEC-320 C19
- Size: 0U Rackmount
- Cord Length (ft): 10
AED13,899.00
General Information | |
Product Name | 3-Phase Switched Mbo PDU 30A 208V 24XC13/6XC19 30A Blue 3P+E |
Product Series | Switched Metered-by-Outlet PDU |
Product Model | PDU83106 |
Product Condition | New |
Product Type | PDU |
Technical Information | |
PDU Type | Switched with Metered-by-Outlet |
Phase | Three Phase |
Plug / Connector Type | IEC 60309 30A BLUE (3P+E) |
Receptacle Type | IEC 60320 C13IEC 60320 C19 |
Receptacle Detail | 24 x IEC 60320 C136 x IEC 60320 C19 |
Protection Type | Overload Protection |
Interfaces/Ports | |
Network (RJ-45) | Yes |
Management | |
Remote Outlet Switching | Yes |
Power Description | |
Input Voltage | 230 V AC |
Input Voltage Range | 200 V AC – 240 V AC |
Output Voltage Range | 200 V AC – 240 V AC |
Input Current | 30 A |
Physical Characteristics | |
Color Family | Black |
Product Color | Black |
Mounting Orientation | Vertical |
Mount Type | Rack-mountable |
Rack Height | 0U |
Cord Length | 10 ft |
Height | 70.5″ |
Width | 2.2″ |
Depth | 2.2″ |
