Power distribution unit

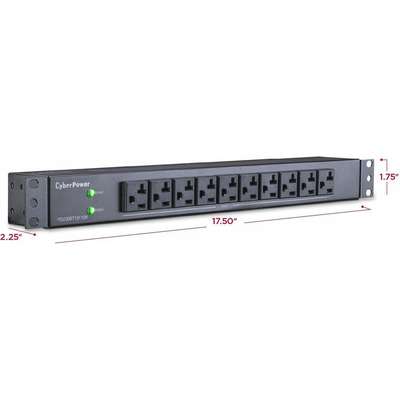

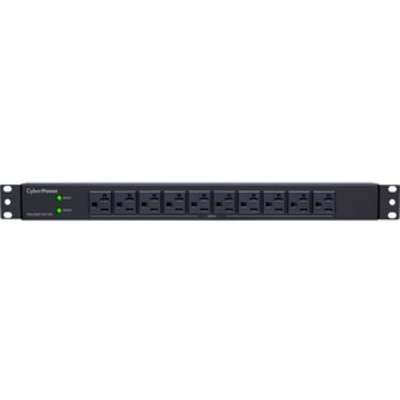

CyberPower 30A Basic PDU 1U 20 Out 5-20R 120V 10F/10R Out L5-30P 12FT Cord
- Basic PDU
- 20 NEMA 5-20R output receptacles (10 Front/10 Rear)
- 120V AC – 50/60Hz – 30-amp electrical capacity with circuit breaker
- 1U Rack Mount – Rugged industrial-grade metal housing
AED2,199.00
The CyberPower Basic PDU30BT10F10R 20-Outlets PDU provides 120V 30A output. It distributes power to 20 NEMA 5-20R receptacles from a single NEMA L5-30P twist lock plug, with unfiltered electrical pass-through. Designed for datacenters and other electrically demanding applications, this unit has a rugged, industrial-grade metal housing and a 15-foot AC power cord. It can be mounted either horizontally or vertically, includes a cord retention tray and is ETL/RoHS certified.
| Category | Attribute | Value |
|---|
| General Information | Product Name | 30A Basic PDU 1U 20 Out 5-20R 120V 10F/10R Out L5-30P 12FT Cord |
| Manufacturer Part Number | PDU30BT10F10R |
| Product Series | Basic PDU |
| Product Type | PDU |
| Technical Information | PDU Type | Basic |
| Plug / Connector Type | NEMA L5-30P |
| Receptacle Type | NEMA 5-20R |
| Receptacle Detail | 20 x NEMA 5-20R |
| Protection Type | Overload Protection |
| Power Description | Input Voltage | 120 V AC |
| Output Voltage | 120 V AC |
| Physical Characteristics | Mounting Orientation | Vertical |
| Mount Type | Rack-mountable |
| Rack Height | 1U |
| Height | 1.8″ |
| Width | 17.5″ |
| Length | 2.3″ |
| Miscellaneous | Energy Star | No |
| Environmentally Friendly | Yes |
| Environmental Compliance | Restriction of Hazardous Substances (RoHS) |
| Other Information | Product Family | Basic PDU |
