Power distribution unit
CyberPower 30A Metered PDU 0U 208V L6-30P 16 C13 4 C19 20F Outlets 10FT Cord
- Metered PDU
- 20 IEC-320 (4-C19 and 16-C13) output receptacles
- 200/230V AC – 50/60Hz – 30-amp electrical capacity with circuit breaker
- 48 inch 0U Vertical Rack Mount – Rugged industrial metal housing
AED3,099.00

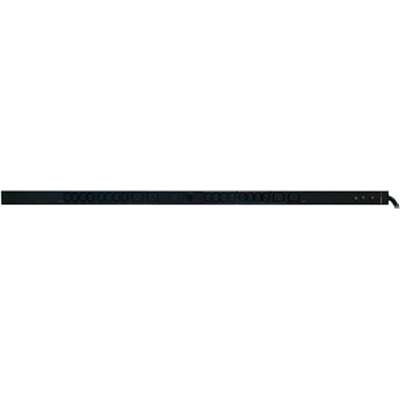

The CyberPower 20-outlet (20 Front) 0U vertical rack mount metered power distribution unit (PDU30MVHVT20F) provides 200/230V 30A output. It distributes power to 20 IEC-320 (4-C19 and 16-C13) receptacles from a single NEMA L6-20P twist lock plug, with unfiltered electrical pass-through. The current draw for connected equipment is displayed in amps on the front of two LCDs for real-time load monitoring. Designed for datacenters and other electrically demanding applications, this unit has a rugged, industrial-grade metal housing and a 10-foot AC power cord. It supports vertical, horizontal and wall mount installation, includes a cord retention tray and is ETL/RoHS certified.
| Category | Attribute | Value |
|---|---|---|
| General Information | Product Name | 30A Metered PDU 0U 208V L6-30P 16 C13 4 C19 20F Outlets 10FT Cord |
| Product Series | Metered PDU | |
| Product Model | PDU30MVHVT20F | |
| Product Type | PDU | |
| Technical Information | Plug / Connector Type | NEMA L6-30P |
| Receptacle Type | IEC 60320 C13, IEC 60320 C19 | |
| Receptacle Detail | 16 x IEC 60320 C13, 4 x IEC 60320 C19 | |
| Protection Type | Overload Protection | |
| Power Description | Input Voltage | 230 V AC |
| Output Voltage | 230 V AC | |
| Physical Characteristics | Mounting Orientation | Vertical |
| Mount Type | Rack-mountable | |
| Height | 48″ | |
| Width | 1.8″ | |
| Length | 2.3″ | |
| Miscellaneous | Energy Star | No |
| Environmentally Friendly | Yes | |
| Environmental Compliance | Restriction of Hazardous Substances (RoHS) | |
| Other Information | Product Family | Metered PDU |
