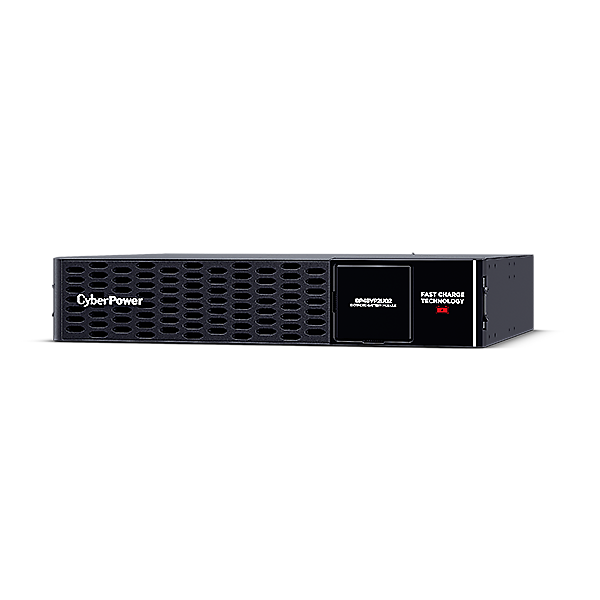

CyberPower BP48VP2U02 Extended Battery Module


U Height:Ā 2U

Voltage:Ā 48V

Color:Ā Black

AED3,199.00

CyberPower BP48VP2U02
An Extended Battery Module (EBM) which can be used in conjunction with compatible UPS systems to provide prolonged system runtime during power interruption. The battery module comes with DC plug-and-play power connectors to allow for adding multiple EBMs. With the built-in charger design, the EBMs can charge directly from utility without resorting to UPS, significantly saving total charging time when charging multiple EBMs.

The product features hot-swappable battery packs, allowing users to safely replace battery module without interrupting connected loads. The sealed lead-acid battery used within the EBM is stable and safe, which ensures the power system’s reliable performance. Designed with industrial-grade metal enclosure, the product is suitable for data center and critical applications.

FEATURES

  • Rack/Tower Convertible Configurations
  • Sealed Lead-acid Batteries
  • Built-in charger for Extended Battery Module (EBM)
  • Hot-swappable Batteries
  • EBM Expansion Capability
  • Metal Housingrfyt
SKU: BP48VP2U02 Category:
CyberPower BP48VP2U02 Extended Battery Modules
Modelt# BP48VP2U02
Specifications
Output 48V/70A
Recharge time 6 hours
Battery type & quantity 12V/9AH (8)
Weight 66.2 lbs
Form Factor Rack/Tower
Hot Swappable Yes
General
Voltage 48V
Amperage 70A
Battery
Battery Type

  • Sealed Lead Acid

Size

  • 12V/9Ah

Quantity

  • 8
Hot-Swappable Yes
User Replaceable Yes
Built-in Charger Yes
Typical Recharge Time 6 hours
Replacement Battery RB1290X4J
Replacement Battery Cartridge Quantity 2
Physical
Color Black
Rack Size 2U
Dimensions – WƗHƗD 17.1 x 3.4 x 19.7 in
Weight 66.2 lbs
Environmental
Operating Temperature

  • 32 – 95 °F
  • 0 – 35 °C

Humidity

  • 0 – 95% (non-condensing)
Storage Temperature
  • 5 – 113 °F
  • -15 – 45 °C
Storage Relative Humidity 0 – 95% (non-condensing)
Maximum Operating Elevation
  • 10,000 ft
  • 3,000 m
Maximum Storage Elevation
  • 50,000 ft
  • 15,000 m
Certifications
Safety
  • CE
  • RCM
  • UL1778
  • cUL
  • FCC Class B
  • VCCI
Environmental RoHS Compliant
