CyberPower Metered ATS Series PDU24006 – power distribution unit

Add to Wishlist

Quick tech specs

  • Power distribution unit (rack-mountable)
  • 1-phase
  • input: 2 x NEMA L6-20P
  • 1U
  • black
  • AC 200-240 V
  • serial
  • output connectors: 10 (8 x IEC 60320 C13, 2 x IEC 60320 C19)
  • 10 ft cord

AED3,199.00

Add to Wishlist

Know your gear

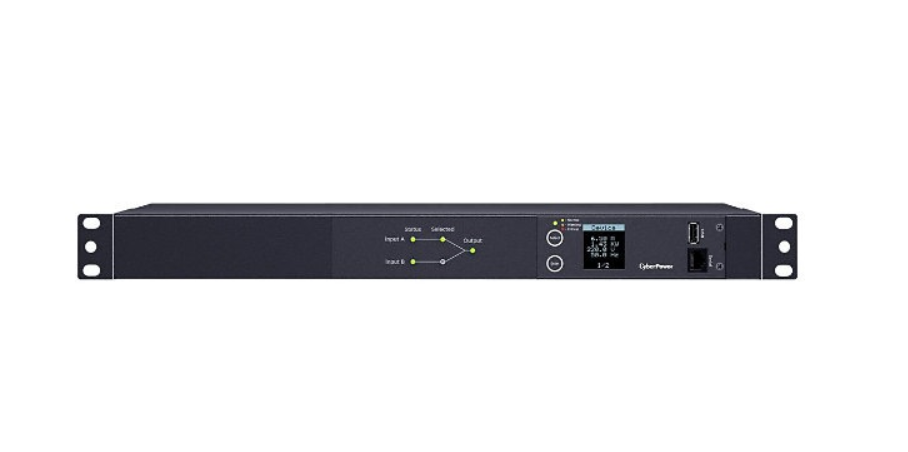

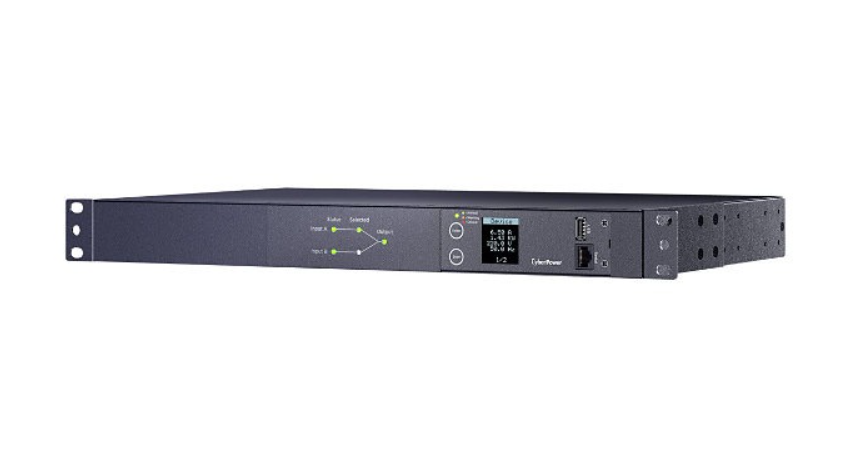

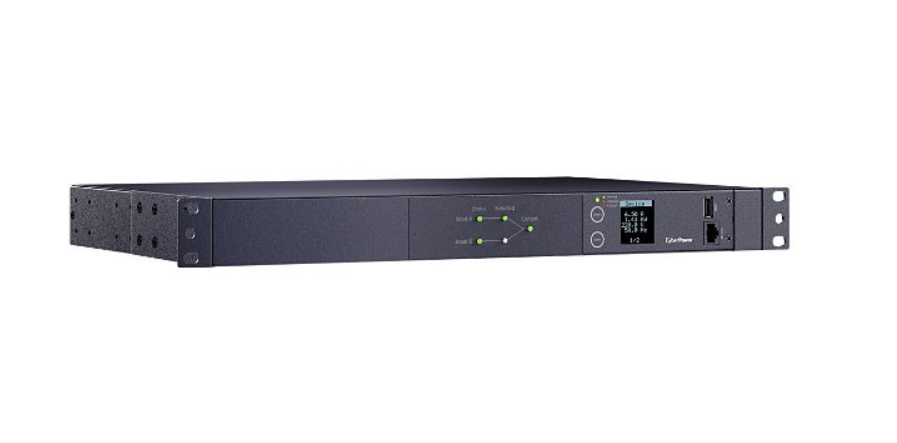

Ensure continued operation of critical devices with the CyberPower PDU24006 Metered ATS PDU. Ideal for data centers and network closets, this unit provides power redundancy to single-corded connected equipment. If power for the primary source exceeds the lower or upper thresholds, or if power fails, the PDU will switch to the secondary power source to ensure continuous operation. The PDU will switch back to the primary power source when incoming power becomes stable.

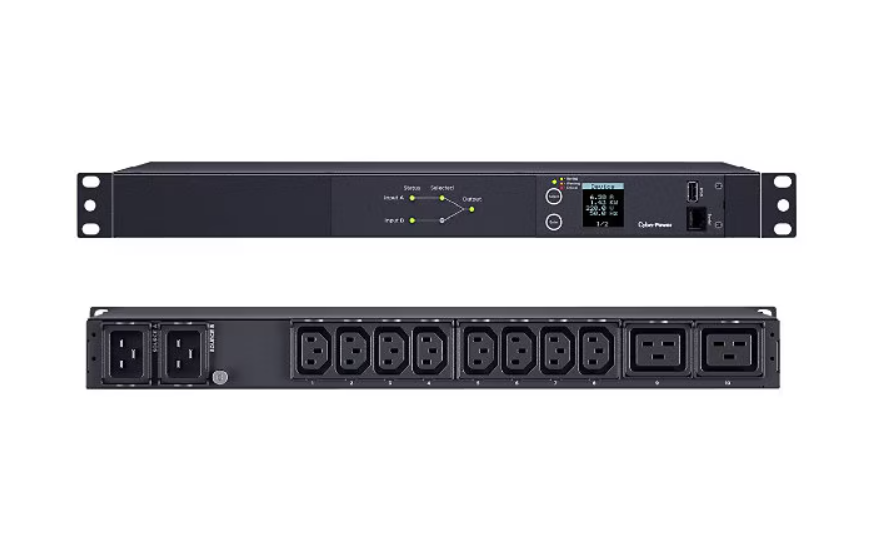

The PDU24006 supports inputs between 200-240V and includes (8) IEC C13 and (2) IEC C19 outlets. Dual NEMA L6-20P power cords are plugged into separate power sources (A and B), and information about each power source is provided via LED indicator lights on the front of the unit. Other features include an LCD with selectable background color, ugradeable firmware, and network-grade plugs and outlets.
SKU: PDU24006 Category: Tag:
Overview
Attribute Value
Brand CyberPower
Product Line CyberPower Metered ATS Series
Model PDU24006
Manufacturer Cyber Power
Network & Communication
Attribute Value
Remote Management Interface Serial
Connectivity
Attribute Value
Input Connectors 2
Interface Provided 1 x serial – RJ-45
Power
Attribute Value
Emergency Power Off Automatic Transfer Switch (ATS), Built-in maintenance bypass, Firmware upgradable, LCD display, LED indicators
Frequency 50/60 hertz
Input Connector Type 2 x power NEMA L6-20P
Input Wiring 1-phase
Max Input Current 16 ampere
Output Connector Quantity 10
Output Connector Type 2 x IEC 60320 C19, 8 x IEC 60320 C13
Power Output Connectors Details 2 x IEC 60320 C19 16 A, 8 x IEC 60320 C13 10 A
Provided Voltage AC 200–240 volt
Required Voltage AC 200–240 volt
Switching Capacity 10 millisecond
Technical Information
Attribute Value
Form Factor (Power Device) Rack-mountable
Max Operating Temperature 113°F
Min Operating Temperature 32°F
Operating Humidity 0 – 95% (non-condensing)
Product Information
Attribute Value
Cord Length 10 ft
Features Metal housing
Packaged Quantity 1
Product Type Power distribution unit
Subcategory Power distribution devices
Included Items
Attribute Value
Cables Power cable 10 ft
Included Accessories Cord retention tray
Dimensions & Weight
Attribute Value
Height 1.8 inch
Height (Rack Units) 1U
Weight 11 lbs
Width 17.1 inch
Depth 8.4 inch
Physical Characteristics
Attribute Value
Color Black
Color Category Black
