CyberPower Switched Ats PDU 208V 1U 8 C13 2 C19

Add to Wishlist
  • 200V – 240V 20A Switched ATS PDU with 8 IEC-320 C13 outlets, 2 IEC-320 C19 outlets and dual NEMA L6-20P 20A high-voltage input connections
  • Switched Automatic Transfer Switching (ATS) PDU to provide a redundant input power option
  • Digital Display (Load, Voltage, and KW) for on-site monitoring of total PDU load
  • SNMP/HTTP Network Interface for real-time outlet control, monitoring and event logging of the Switched ATS PDU

AED4,799.00

Add to Wishlist

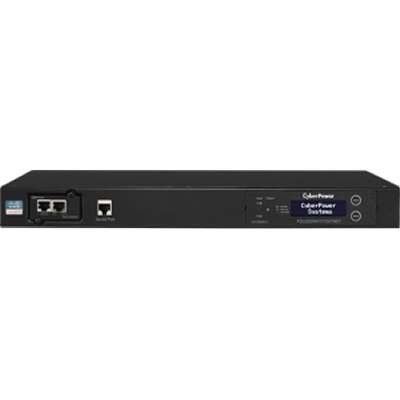

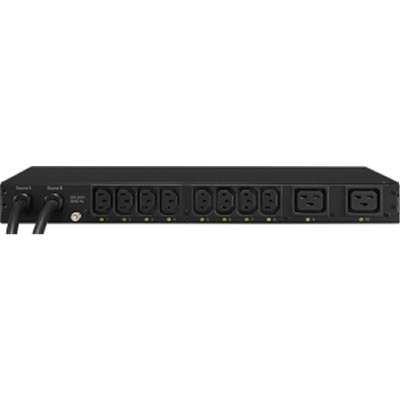

The CyberPower PDU20SWHVT10ATNET, 10-outlet 1U rack mount switched auto transfer switch (ATS) PDU, provides 200-240V / 20A output. The PDU distributes power to 10 IEC-320 8-C13 / 2-C14 receptacles from redundant L5-20P plugs. Dual power cords can be plugged into separate power sources to provide redundancy to single-corded equipment. If there is a power failure or an under/over voltage, the PDU will switch to the secondary power source to insure continuous operation.

The PDU includes a RMCARD203 SNMP card. With the SNMP card and an IP address on the network interface, users have real-time monitoring and outlet control of the ATS PDU including event notifications.

The LCD provides local monitoring of voltage and amperage of the PDU and on/off control of the outlets.

The unit has a rugged, industrial-grade metal housing and 10-foot AC power cords. It can be mounted horizontally, includes a cord retention tray and is UL60950_1 & FCC Class A certified.

  • 200V – 240V 20A Switched ATS PDU with 8 IEC-320 C13 outlets, 2 IEC-320 C19 outlets and dual NEMA L6-20P 20A high-voltage input connections
  • Switched Automatic Transfer Switching (ATS) PDU to provide a redundant input power option
  • Digital Display (Load, Voltage, and KW) for on-site monitoring of total PDU load
  • SNMP/HTTP Network Interface for real-time outlet control, monitoring and event logging of the Switched ATS PDU



Management



  • Automatic Transfer Switch (ATS)
  • SNMP/HTTP



Certifications & Standards



  • UL60950-1 Certified by ETL (USA)
  • CSA C22.2(Canada)
  • FCC Class A



Miscellaneous



  • Phase: Single Phase
  • Frequency: 50/60 Hz
  • LCD Displays: Amperage, Voltage, KW, Network Information, and Hardware/LCD Firmware
  • LED Indicators: Input, Output Load, Tx/Rx, LINK, Outlets
  • Upgradeable Firmware: Yes – SNMP, HW, and LCD
SKU: PDU20SWHVT10ATNET Category: Tag:
General Information
Product Name Switched Ats PDU 208V 1U 8 C13 2 C19 3-Year
Product Series Switched ATS PDU
Product Model PDU20SWHVT10ATNET
Product Type PDU
Technical Information
PDU Type Switched
Plug / Connector Type NEMA L6-20P
Plug / Connector Detail 2 x NEMA L6-20P
Receptacle Type IEC 60320 C13IEC 60320 C19
Receptacle Detail 8 x IEC 60320 C132 x IEC 60320 C19
Power Description
Input Voltage 230 V AC
Output Voltage 230 V AC
Input Current 20 A
Physical Characteristics
Mount Type Rack-mountable
Rack Height 1U
Cord Length 10 ft
Height 1.8″
Width 17.1″
Length 9.3″
