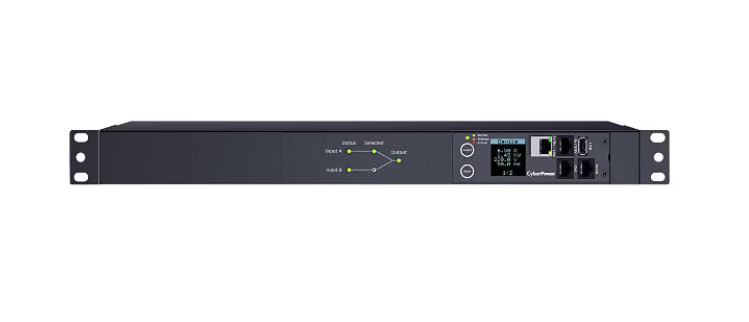

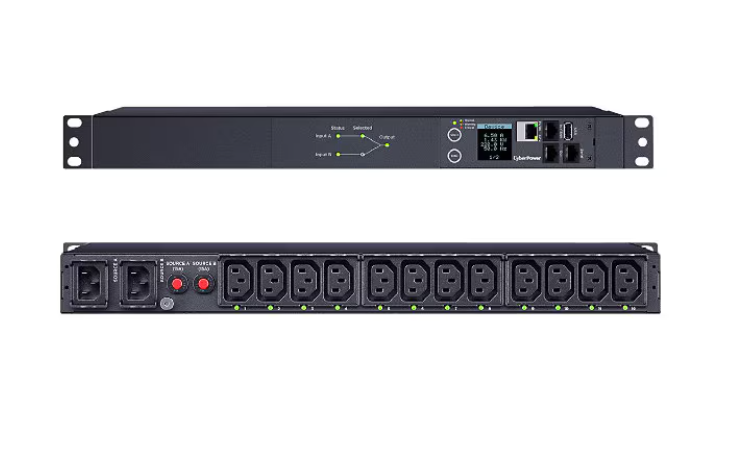

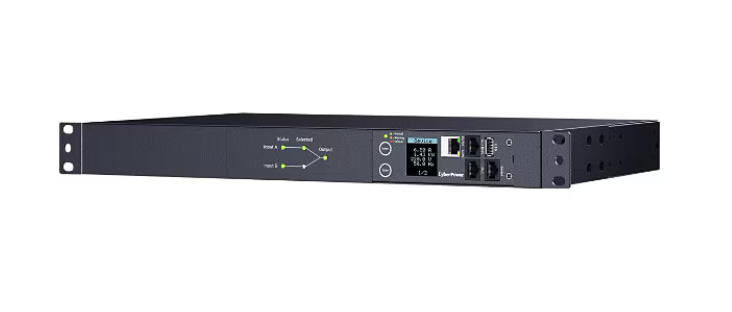

CyberPower Switched ATS PDU44004 – power distribution unit

Add to Wishlist

Quick tech specs

  • Power distribution unit (rack-mountable)
  • 1-phase
  • input: 2 x IEC 60320 C14
  • 1U
  • black
  • AC 200-240 V
  • Ethernet, serial
  • output connectors: 12 (12 x IEC 60320 C13)
  • 10 ft cord

AED6,099.00

Add to Wishlist

Know your gear

Ensure continued operation of critical devices with the CyberPower PDU44004 Switched ATS PDU. Ideal for data centers and network closets, this unit provides power redundancy to single-corded connected equipment. If power for the primary source exceeds the lower or upper thresholds, or if power fails, the PDU will switch to the secondary power source to ensure continuous operation. The PDU will switch back to the primary power source when incoming power becomes stable. Additionally, this unit offers real time remote and local monitoring and outlet management.

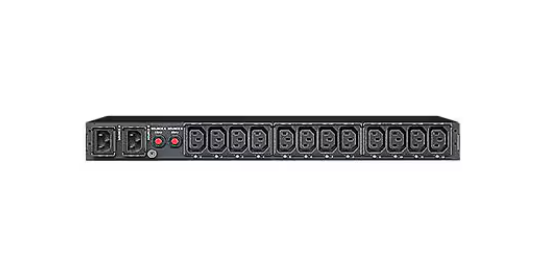

The PDU44004 supports inputs between 200-240V and includes (12) IEC C13 outlets. Dual IEC C14 power cords are plugged into separate power sources (A and B), and information about each power source is clearly displayed on the front panel LED indicator lights. Other features include an LCD with selectable background color, built-in web interface, and power event notifications.

SKU: PDU44004 Category: Tag:
Category Specification
Overview
Brand CyberPower
Product Line CyberPower Switched ATS
Model PDU44004
Manufacturer Cyber Power
Network & Communication
Remote Management DHCP, HTTP, HTTPS, IPv4, IPv6, LDAP, NTP, RADIUS, SMTP, SNMP 1, SNMP 3, SSH, Telnet, TFTP
Remote Management Interface Ethernet, Serial
Connectivity
Input Connectors 2
Interface Provided 1 x cascading – RJ-45, 1 x management (Ethernet) – RJ-45, 1 x sensor – RJ-45, 1 x serial – RJ-45, 1 x USB – 4 pin USB Type A
Power
Emergency Power Off Automatic Transfer Switch (ATS), Firmware upgradable, LCD display, LED indicators
Frequency 50/60 Hz
Input Connector Type 2 x power IEC 60320 C14
Input Wiring 1-phase
Max Input Current 12 A
Output Connector Quantity 12
Output Connector Type 12 x power IEC 60320 C13
Power Output Connectors Details 12 x power IEC 60320 C13
Required Voltage AC 200-240 V
Software
Software Type PowerPanel Business, PowerPanel Enterprise
Technical Information
Form Factor (Power Device) Rack-mountable
Max Operating Temperature 113°F
Min Operating Temperature 32°F
Operating Humidity 0 – 95% (non-condensing)
Protection Type Circuit breaker
Product Information
Cord Length 10 ft
Packaged Quantity 1
Product Type Power distribution unit
Rack Mounting Kit Included
Subcategory Power distribution devices
Included Items
Cables 2 x power cable – external – 10 ft, Serial cable – external
Included Accessories Cable ties, Cord retention tray, Rack mount brackets, Screws
Dimensions & Weight
Height 1.7 in
Height (Rack Units) 1U
Weight 8.16 lbs
Width 17 in
Depth 8.5 in
Physical Characteristics
Color Black
Color Category Black
