power management

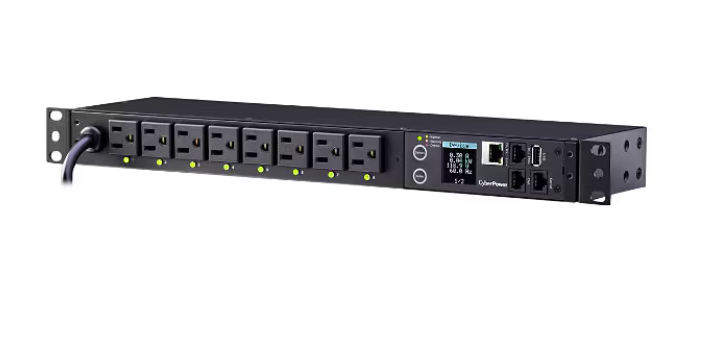

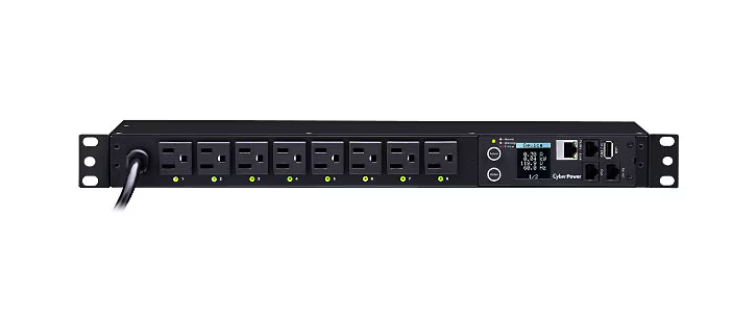

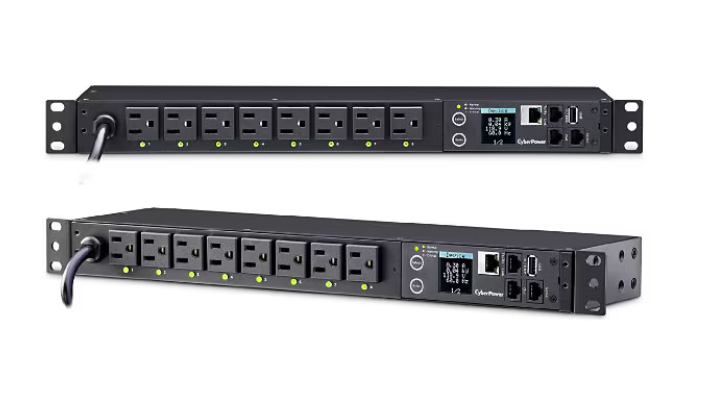

CyberPower Switched Metered-by-Outlet PDU81001 – power distribution unit
Quick tech specs
- by-Outlet PDU81001
- AC 100-120 V
- input: NEMA 5-15
- 1U
- Power distribution unit (rack-mountable)
- Ethernet, USB, serial
- output connectors: 8 (NEMA 5-15)
- 12 ft cord
AED6,599.00
Know your gear

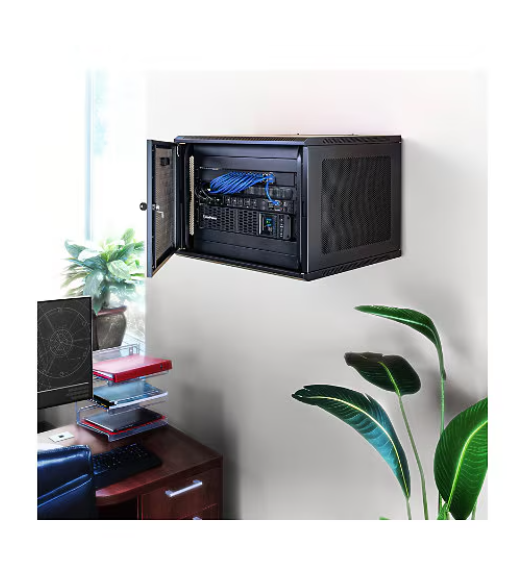

Streamline capacity planning and power management with the CyberPower PDU81001 switched metered-by-outlet PDU. Ideal for data centers and network closets, this unit provides outlet-level power monitoring in real time, along with individual outlet control for remote reboots, load shedding, controlled power-cycling and more.
The PDU81001 supports inputs between 100-120V and includes eight (8) NEMA 5-15R outlets. Other features include a rack mount design (1U), built-in web interface (RJ-45 ethernet connection), interactive digital display and power event notifications.
| Category | Specification |
|---|---|
| Overview | |
| Brand | CyberPower |
| Product Line | CyberPower Switched Metered-by-Outlet |
| Model | PDU81001 |
| Manufacturer | Cyber Power |
| Network & Communication | |
| Remote Management | CLI, HTTP, HTTPS, SNMP 1, SNMP 3, SSH, Telnet |
| Remote Management Interface | Ethernet, Serial, USB |
| Connectivity | |
| Input Connectors | 1 |
| Interface Provided | 1 x cascading – RJ-45, 1 x management (Ethernet) – RJ-45, 1 x sensor – RJ-45, 1 x serial – RJ-45, 1 x USB – 4 pin USB Type A |
| Power | |
| Emergency Power Off | Current meter, Email alerts support, LCD display, Voltage monitoring |
| Frequency | 50/60 Hz |
| Input Connector Type | Power NEMA 5-15 |
| Max Input Current | 15 A |
| Output Connector Quantity | 8 |
| Output Connector Type | Power NEMA 5-15 |
| Power Output Connectors | 8 x power NEMA 5-15 |
| Provided Voltage | AC 100-120 V |
| Required Voltage | AC 100-120 V |
| Technical Information | |
| Form Factor | Rack-mountable |
| Max Operating Temperature | 131 °F |
| Min Operating Temperature | 32 °F |
| Operating Humidity | 0 – 95% (non-condensing) |
| Protection Type | Circuit breaker |
| Product Information | |
| Cord Length | 12 ft |
| Packaged Quantity | 1 |
| Product Type | Power distribution unit |
| Rack Mounting Kit | Included |
| Subcategory | Power distribution devices |
| Included Items | |
| Cables | Power cable 12 ft |
| Dimensions & Weight | |
| Height | 1.7 in |
| Height (Rack Units) | 1U |
| Width | 17 in |
| Depth | 4.4 in |
| Weight | 5.73 lbs |
| Physical Characteristics | |
| Color Category | Black |
| Certifications & Listings | |
| Compliant Standards | FCC Class A certified, RoHS, UL 60950-1 |
