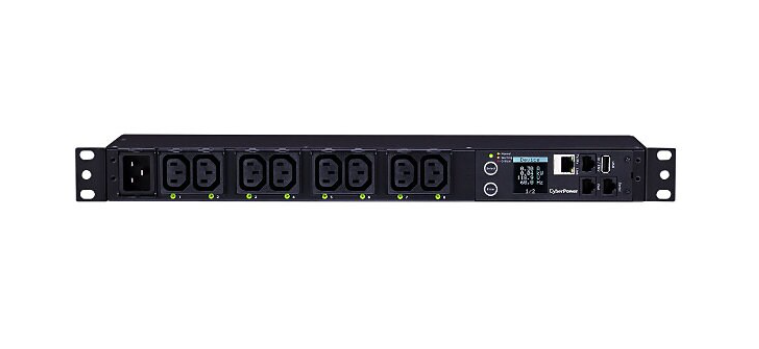

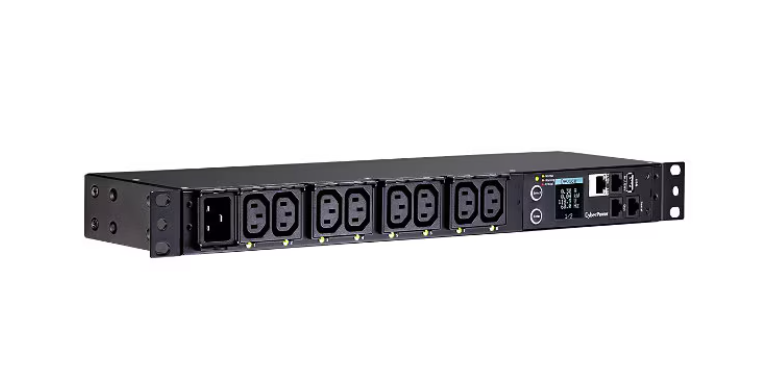

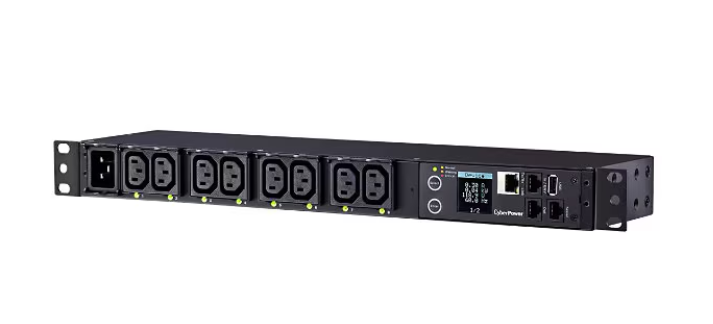

CyberPower Switched Metered-by-Outlet PDU81005 – power distribution unit

Add to Wishlist

Quick tech specs

  • by-Outlet PDU81005
  • AC 100-120 V
  • input: IEC 60320 C20
  • 1U
  • Power distribution unit (rack-mountable)
  • Ethernet, USB, serial
  • output connectors: 8 (power IEC 60320 C13)
  • 10 ft cord

AED5,599.00

Add to Wishlist

Know your gear

Streamline capacity planning and power management with the CyberPower PDU81005 switched metered-by-outlet PDU. Ideal for data centers and network closets, this unit provides outlet-level power monitoring in real time, along with individual outlet control for remote reboots, load shedding, controlled power-cycling and more.

The PDU81005 supports inputs between 100-240V and includes eight (8) IEC-320 C13 outlets and a single IEC-320 C20 input power plug. Other features include a rack mount design (1U), built-in web interface (RJ-45 ethernet connection), interactive digital display and power event notifications.

SKU: PDU81005 Category: Tag:
Category Specification
Overview
Brand CyberPower
Product Line CyberPower Switched Metered-by-Outlet
Model PDU81005
Manufacturer Cyber Power
Network & Communication
Remote Management CLI, HTTP, HTTPS, SNMP 1, SNMP 3, SSH, Telnet
Remote Management Interface Ethernet, Serial, USB
Connectivity
Input Connectors 1
Interface Provided 1 x cascading – RJ-45, 1 x management (Ethernet) – RJ-45, 1 x sensor – RJ-45, 1 x serial – RJ-45, 1 x USB – 4 pin USB Type A
Power
Emergency Power Off Current meter, Email alerts support, LCD display, Voltage monitoring
Frequency 50/60 Hz
Input Connector Type Power IEC 60320 C20
Max Input Current 20 A
Output Connector Quantity 8
Output Connector Type Power IEC 60320 C13
Power Output Connectors Details 8 x power IEC 60320 C13
Provided Voltage AC 100-120 V
Required Voltage AC 100-120 V
Technical Information
Form Factor (Power Device) Rack-mountable
Max Operating Temperature 131°F
Min Operating Temperature 32°F
Operating Humidity 0 – 95% (non-condensing)
Protection Type Circuit breaker
Product Information
Cord Length 10 ft
Packaged Quantity 1
Product Type Power distribution unit
Rack Mounting Kit Included
Subcategory Power distribution devices
Included Items
Cables Power cable – 10 ft
Dimensions & Weight
Height 1.7 in
Height (Rack Units) 1U
Weight 4.63 lbs
Width 17 in
Depth 4.4 in
Physical Characteristics
Color Category Black
Certifications & Listings
Compliant Standards FCC Class A certified, RoHS, UL 60950-1
