CyberPower Switched Series PDU41002 – power distribution unit

Add to Wishlist

Quick tech specs

  • Power distribution unit (rack-mountable)
  • 1-phase
  • input: NEMA 5-20P
  • 1U
  • AC 100-120 V
  • Ethernet, serial
  • output connectors: 8 (NEMA 5-20R)
  • 12 ft cord

AED4,099.00

Add to Wishlist

Know your gear

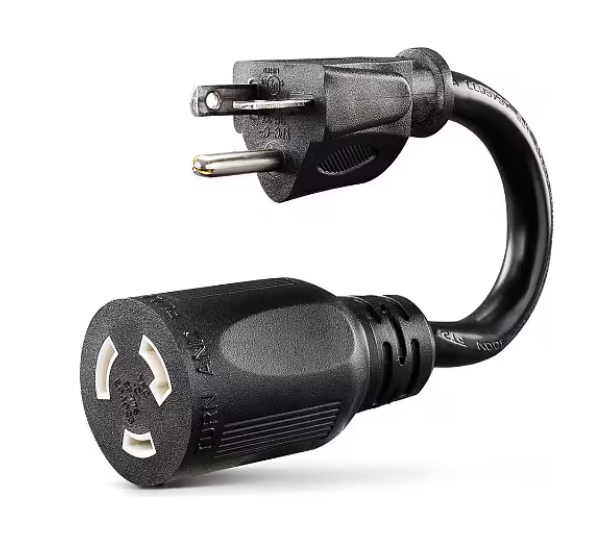

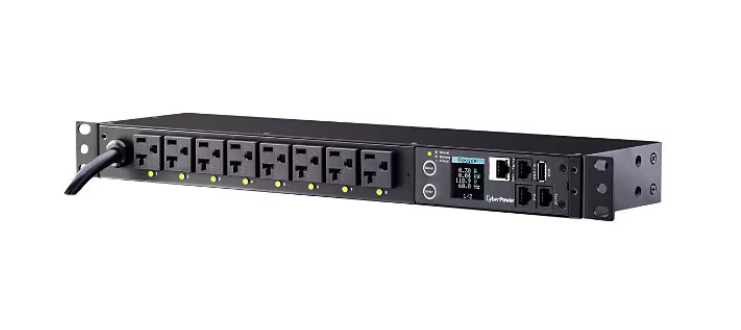

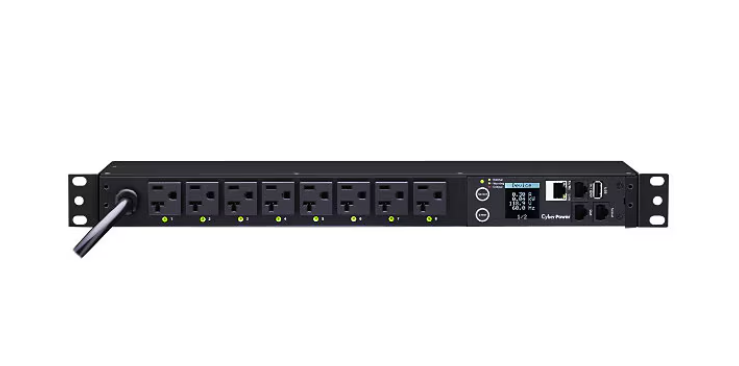

The CyberPower PDU41002, an 8-outlet (front), 1U rackmount switched power distribution unit (PDU), provides 120V 20A output. It distributes power to 8 NEMA 5-20R receptacles from a single NEMA 5-20 or L5-20 (with adaptor) plug with unfiltered electrical pass-through. The switched outlet receptacles can be managed individually or collectively over the network, using the CyberPower Management Console, a web browser, and the RJ45 Ethernet port for network connection, or locally by using the LCD controls.
SKU: PDU41002 Category: Tag:
Overview
Specification Details
Brand CyberPower
Product Line CyberPower Switched Series
Model PDU41002
Manufacturer Cyber Power
Network & Communication
Specification Details
Remote Management HTTP, HTTPS, SNMP 1, SNMP 3, SSH, Telnet
Remote Management Interface Ethernet, Serial
Connectivity
Specification Details
Input Connectors 1
Interface Provided 1 x LAN – RJ-45, 1 x USB (4 pin Type A), 1 x monitoring – RJ-45, 1 x serial – RJ-45
Power
Specification Details
Emergency Power Off AC frequency monitoring, Current meter, Digital power meter, Firmware upgradable, LCD display, Voltage monitoring
Frequency 50/60 hertz
Input Connector Type Power NEMA 5-20P
Input Wiring 1-phase
Max Input Current 20 ampere
Output Connector Quantity 8
Output Connector Type Power NEMA 5-20R
Power Output Connectors Details 8 x power NEMA 5-20R
Provided Voltage AC 100-120 volt
Required Voltage AC 100-120 volt
Technical Information
Specification Details
Form Factor (Power Device) Rack-mountable
Max Operating Temperature 131°F
Min Operating Temperature 32°F
Operating Humidity 0 – 95% (non-condensing)
Product Information
Specification Details
Cord Length 12 ft
Packaged Quantity 1
Product Type Power distribution unit
Rack Mounting Kit Included
Subcategory Power distribution devices
Included Items
Specification Details
Cables Power cable 12 ft, Serial cable – external
Included Accessories 10 cable ties, 10 M4x8 screws, 6 M3x6 screws, 6 M5x12 screws, 6 washers, Cable retention tray
Dimensions & Weight
Specification Details
Height 1.8 inch
Height (Rack Units) 1
Weight 7.3 lbs
Width 17 inch
Depth 4.4 inch
Physical Characteristics
Specification Details
Color Category Black
