CyberPower Switched Series PDU41101 – power distribution unit

Add to Wishlist

Quick tech specs

  • Power distribution unit (rack-mountable)
  • 1-phase
  • input: NEMA L5-20P
  • 0U
  • AC 100-120 V
  • Ethernet, serial
  • output connectors: 24 (NEMA 5-20R)
  • 10 ft cord

AED5,899.00

Add to Wishlist

Know your gear

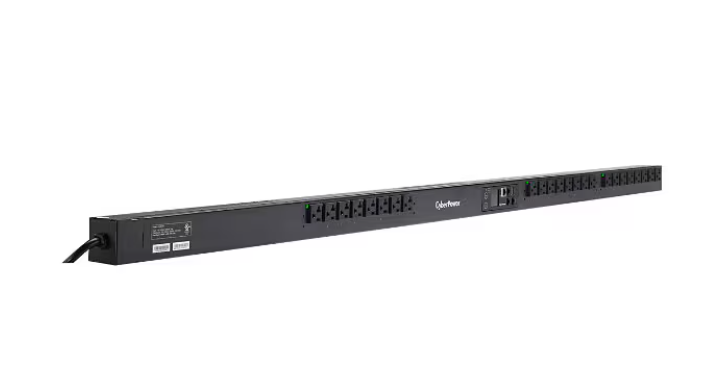

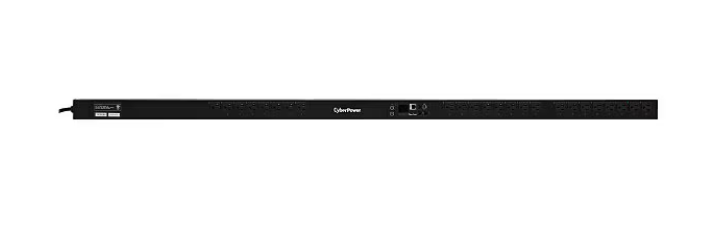

The CyberPower PDU41101 is a 0U rackmount switched power distribution unit or PDU that has 24 outlets and provides 120V 20A output. This PDU distributes power to 24 NEMA 5-20R receptacles from a single NEMA (L)5-20P plug with unfiltered electrical pass-through.
Using the CyberPower Management Console, a web browser, and the RJ45 Ethernet port for network connection, the user can manage the switched outlet receptacles individually or collectively over the network. In addition, the user can manage the switched outlet receptacles locally by using the LCD controls. Outlets can be turned on, turned off, or cycled on demand. The user can also schedule outlets to address a number of needs: remote rebooting of locked equipment, load shedding, power sequencing, and locking out unauthorized loads.
The PDU41101 comes with a three-year limited warranty that covers defects in materials and workmanship in the product under normal use and conditions within three years of the purchase date.
Power Distribution
Delivers AC power to servers, equipment, and connected devices via a power distribution unit.
Switch-Free Design
Safeguards against accidental power shutdown.
Switchable Outlets
Provides local and remote control for individual and multiple outlets. Local control: turn on/turn off outlets and disable unused outlets. Remote control: restart outlets and devices, turn on/turn off, schedule power on/off sequencing, and disable unused outlets.
CyberPower Management Console
CyberPower Management Console is a hardware interface built into switched PDUs. Users can remotely switch individual PDU.
Remote and Local Monitoring
The user is able to track PDU vitals both offsite and onsite. It also provides control to turn on/off individual outlets or circuits.
Automatic Event Notifications
Provide immediate updates about power events via email, SMS text, or SNMP traps.
Upgradeable Firmware
Downloadable firmware updates that provide improvements to programs that run the PDU.
Power Control Display
Provides easy-to-read information about amperage, voltage, KW, IP address, and other PDU information.
Network-Grade Plugs and Outlets
Highly durable construction ensures the efficient distribution of power in demanding IT or industrial environments to servers, equipment, and connected devices.
Twist-Lock Plug
The user can secure the plug into an outlet by twisting and locking into place to prevent accidental disconnection.
Long Input Power Cord
Allows the user to place the PDU where it’s needed because the power cord reaches distant power sources.
Cord Retention Tray
Secures power cords. Keeps cord organized and accessible by securing power cord. The cord-retention tray also helps cords stay plugged in.
Configurable Mounting Brackets
Allows for installation of the PDU in the following configurations: 0U (vertical, under counter, and wall mount), 1U (horizontal, vertical, under counter, and wall mount), and 2U (horizontal and wall mount).
SKU: PDU41101 Category: Tag:
Overview
Specification Details
Brand CyberPower
Product Line CyberPower Switched Series
Model PDU41101
Manufacturer Cyber Power
Network & Communication
Specification Details
Remote Management HTTP, HTTPS, NTP, SMTP, SNMP 1, SNMP 3, SSH, Telnet
Remote Management Interface Ethernet, Serial
Connectivity
Specification Details
Input Connectors 1
Interface Provided 1 x LAN – RJ-45, 1 x monitoring – RJ-45, 1 x serial – RJ-45
Power
Specification Details
Emergency Power Off Current meter, Email alerts support, Firmware upgradable, Frequency meter, LCD display, LED indicators, SMS notification, Voltage monitoring
Frequency 50/60 hertz
Frequency Provided 50/60 hertz
Input Connector Type Power NEMA L5-20P
Input Wiring 1-phase
Max Input Current 20 ampere
Output Connector Quantity 24
Output Connector Type Power NEMA 5-20R
Power Output Connectors Details 24 x power NEMA 5-20R
Provided Voltage AC 100-120 volt
Required Voltage AC 100-120 volt
Technical Information
Specification Details
Form Factor (Power Device) Rack-mountable
Max Operating Temperature 140 degree Fahrenheit
Min Operating Temperature 32 degree Fahrenheit
Operating Humidity 0 – 95% (non-condensing)
Product Information
Specification Details
Cord Length 10 ft
Packaged Quantity 1
Product Type Power distribution unit
Subcategory Power distribution devices
Included Items
Specification Details
Cables Power cable 10 ft
Dimensions & Weight
Specification Details
Height 65.4 inch
Height (Rack Units) 0
Weight 15.43 lbs
Width 2.2 inch
Depth 1.9 inch
Physical Characteristics
Specification Details
Color Category Black
