D.A.S. Audio INTEGRAL-M26X Rackmount 2×6 Digital Signal Processor (1 RU)

Add to Wishlist
Key Features
  • For Live and Installed PA Systems
  • Digital Signal-Processing Matrix
  • Two XLR Balanced Analog Inputs
  • Six XLR Balanced Analog Outputs
  • 24-Bit / 48 kHz Conversion, 1ms Latency
  • OLED Display and Control Buttons
  • Remote Control and Monitoring via ALMA
  • RJ45 Ethernet Port, GPIO I/O Connectors

5,799.00 د.إ

Add to Wishlist

D.A.S. Audio INTEGRAL-M26X Overview

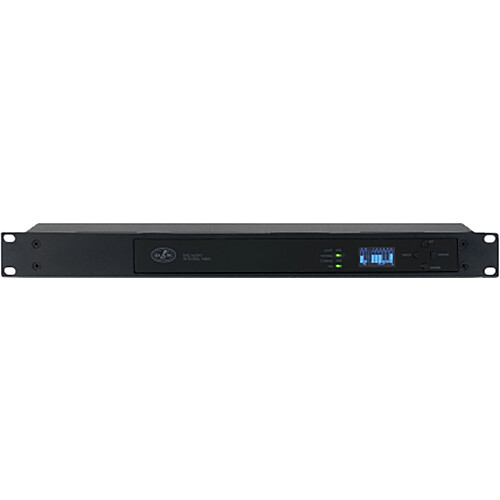

A versatile choice for live and installed PA systems, the D.A.S. Audio INTEGRAL-M26X is a 1 RU rackmount digital signal processor with two analog inputs and six analog outputs on balanced XLR connectors. It offers a variety of powerful DSP functions including routing, gain and delay adjustments, equalization, and limiting. The unit can store over 100 global presets and also has 200+ output-channel presets, including specific presets for all DAS Audio speakers.

INTEGRAL-M26X can be controlled and monitored remotely over IP using the company’s ALMA software or via external controllers using OSC messages. Basic adjustments can be made on the unit itself with the 1.54″ OLED display and control buttons.

For installation purposes, two General-Purpose Input/Output (GPIO) connectors with 8 configurable pins each provide external 3.3V and GND signal.

SKU: INTEGRAL-M26X Category: Tag:
General
Electronics and Audio
Frequency Response: 20 Hz to 30 kHz
Max Input Level: +22 dBu
Max. Output Level: +22 dBu
Controls: Power On/Off, Navigation Buttons
Sampling Rate: 48 kHz
Display: OLED, 1.54″ / 3.9 cm
Cooling: Side-Right-to-Left
LED Indicators:On, Comms, Signal, Limit
DSP
Analog Input Channels: 2
Analog Output Channels: 6
A/D Converters:24-Bit at 48 kHz, 118 dBA Dynamic Range
D/A Converters:24-Bit at 48 kHz, 118 dBA Dynamic Range
Internal Precision: 32-Bit, 64-Bit Double Precision
Latency: 1 ms

Delay: 50ms per Input / 135ms per Output Equalizer: Bell, Lo/Hi-Shelving
Crossover: Linkwitz-Riley, Butterworth, Bessel
High- and Low-Pass Filters: Up to 48 dB/Oct
Limiters: RMS
Display
Panel Type
OLED
Display Size
1.54″
Touchscreen
No

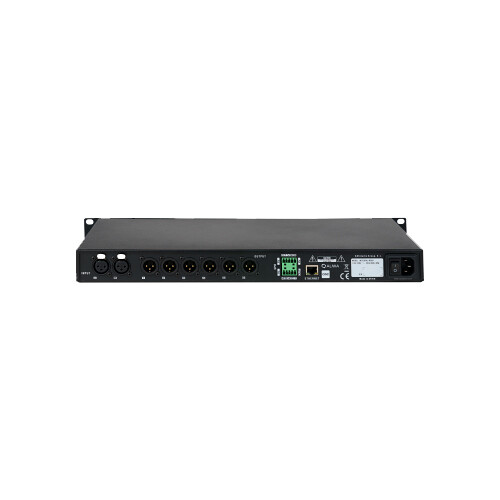

Inputs / Outputs
Audio I/O
2x XLR 3-Pin Line Input (Balanced)
6x XLR 3-Pin Line Output (Balanced)
Network I/O
1 x RJ45 Connector for Control via ALMA software
Other I/O
2 x GPIO Connectors for External Control (8 Configurable Pins)
Wireless
Mobile App Compatible
No
Power
Power Source
AC Input
AC Input Power
90 to 250 VAC, 50 / 60 Hz
Physical
Mounting
2x Rack Ears
Color
Black
Dimensions
19 x 8.3 x 1.7″ / 48.3 x 21.1 x 4.3 cm
Weight
5.5 lb / 2495 g
