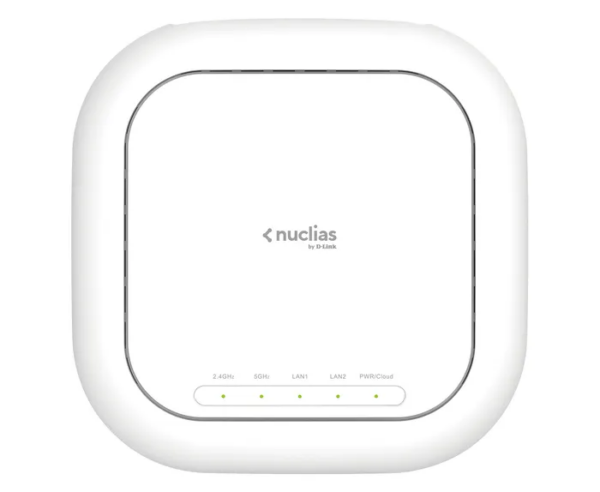

D-Link DBA-2820P wireless access point 2600 Mbit/s White Power over Ethernet (PoE)


DBA-2820P, IEEE 802.11a/b/g/n/ac, 800 Mbps 2.4 GHz, 1733 Mbps 5 GHz, MU-MIMO, 26dBm, 2x 1G RJ-45 LAN, 224.5×223.85×50 mm

2,899.00 د.إ

Cloud Networking, Refreshed The DBA-2820P Access Point (AP) is part of the Nuclias Cloud solution – D-Link’s complete Cloud-Managed Networking solution for Small-to-Medium Businesses (SMBs), designed to make the ownership and administration of IT infrastructure as simple and hassle-free as possible. Built for Heavy Workloads The DBA-2820P is a workhorse solution built to handle bandwidth-intensive applications involving numerous clients. It delivers high-speed wireless AC (Wave 2) connection reliably, with maximum wireless signal rates of up to 2.6Gbps, and 4 x 4 MU-MIMO (four spatial streams). Performance is further optimized via the Nuclias Cloud platform which adjusts the DBA-2820P’s channel selection, transmission power, and maximum number of client connections. Advanced Management & Security The Nuclias Cloud interface lets admins easily manage Layer-2 features, such as VLANs, Spanning Tree Protocol (STP), and 802.3ad Link Aggregation (static). With SSID isolation, MAC address filtering, and end-to-end encryption, this is a versatile solution for those seeking easy configuration, without added complexities. Full PoE Support The DBA-2820P Access Point supports Power over Ethernet (IEEE 802.3at standard) for its Gigabit LAN port. Power over Ethernet greatly simplifies the installation of compatible devices such as VoIP phones and IP cameras in remote locations that lack easy access to a power outlet.

SKU: DBA-2820P Categories: , Tag:
Feature Specification
2.4 GHz Y
5 GHz Y
Maximum data transfer rate 2600 Mbit/s
Maximum data transfer rate (2.4 GHz) 800 Mbit/s
Maximum data transfer rate (5 GHz) 1733 Mbit/s
Ethernet LAN data rates 10, 100, 1000 Mbit/s
Networking standards IEEE 802.11a, IEEE 802.11ac, IEEE 802.11b, IEEE 802.11g, IEEE 802.11h, IEEE 802.3ab, IEEE 802.3at, IEEE 802.3az, IEEE 802.3i, IEEE 802.3u, IEEE 802.3x
MIMO Y
MIMO type Multi User MIMO
Flow control support Y
Transmitting power 26 dBmW
Security algorithms WPA-Enterprise, WPA-PSK, WPA2-Enterprise, WPA2-PSK
MAC address filtering Y
Number of SSID supported 16
DHCP server Y
Ethernet LAN (RJ-45) ports 2
DC-in jack Y
Power over Ethernet (PoE) Y
AC input voltage 100 – 240 V
AC input frequency 50/60 Hz
Output voltage 12 V
Power consumption (max) 21.65 W
Power supply 19.2 W
Placement Ceiling, Table, Wall
Product colour White
Cable lock slot Y
Cable lock slot type Kensington
On/off switch Y
Reset button Y
LED indicators Y
Certification CE B, FCC B, UL, IC B
Antenna type Internal
Antenna direction type Omni-directional
Antenna gain level (max) 4 dBi
Operating relative humidity (H-H) 10 – 90%
Operating temperature (T-T) 0 – 40 °C
Storage temperature (T-T) -20 – 65 °C
Storage relative humidity (H-H) 5 – 95%
Shipping (inner) case length 41.9 cm
Shipping (inner) case width 31.2 cm
Shipping (inner) case height 32.8 cm
Shipping (inner) case net weight 6.92 kg
Products per shipping (inner) case 5 pc(s)
Pallet gross weight (air) 206.4 kg
Master (outer) cases per pallet (air) 24 pc(s)
Products per pallet (air) 120 pc(s)
Pallet gross length 110 cm
Pallet gross width 120 cm
Pallet height (air) 144.7 cm
Pallet gross weight (sea) 253.7 kg
Master (outer) cases per pallet (sea) 30 pc(s)
Products per pallet (sea) 150 pc(s)
Pallet height (sea) 177.5 cm
Shipping (inner) case gross weight 7.79 kg
Harmonized System (HS) code 85176990
Width 224.5 mm
Depth 223.8 mm
Height 50 mm
Weight 810 g
Package width 294 mm
Package depth 291 mm
Package height 94 mm
Package weight 1.39 kg
