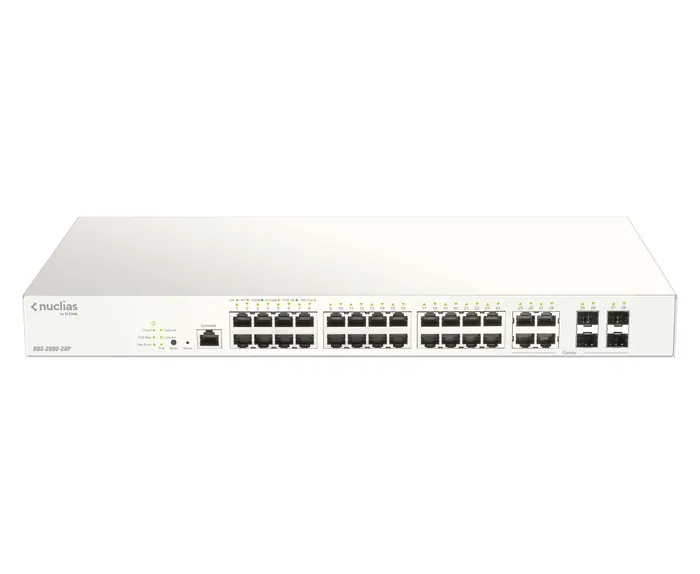

D-Link DBS-2000-28P network switch Power over Ethernet (PoE) Grey


DBS-2000-28P, 56 Gbps, 41.7 Mpps, 24x 1G PoE RJ-45, 4x 1G SFP/RJ-45, 500MHz, 256MB DDR3, 440x250x44 mm

3,399.00 د.إ

Cloud Networking, Refreshed The DBS-2000 series of switches is part of the Nuclias Cloud solution – D-Link’s complete Cloud-Managed Networking solution for Small-to-Medium Businesses (SMBs), designed to make the ownership and administration of your IT infrastructure as simple and hassle-free as possible. Management Over the Cloud DBS-2000 is a series of Smart Managed Switches, manageable via the Nuclias Cloud Web Portal through any compatible online PC or Tablet. Connectivity with the Nuclias Cloud platform is guaranteed, with a 99.9% Service-Level-Agreement (SLA), and operation will continue even if the Cloud connection fails. Easy Troubleshooting The DBS-2000 Series features Cable Diagnostics and Per Port Traffic Packet Counters to help network admins find & solve network problems. Cable Diagnostics enables quick examination of cable quality, recognition of cable type, and detection of cable errors, with the Per-Port Traffic Packet Counter helping to further isolate problems. Advanced Security Features The DBS-2000 series utilizes the Nuclias Cloud Web Portal interface, giving administrators an easy way to manage Layer-2 features, such as VLANs, Spanning Tree Protocol (STP), and 802.3ad Link Aggregation (static). With powerful security features, including IGMP snooping, Static MAC, and end-to-end encryption (WPA/WPA2/WPA3), these Cloud switches are a versatile solution for deployments that require easy configuration, without added complexities. Full PoE Support Select models in the DBS-2000 Series support Power over Ethernet (PoE) for copper access ports. Power over Ethernet greatly simplifies the installation of PoE-enabled devices such as VoIP phones and IP cameras in remote locations with no immediate access to a power outlet.

SKU: DBS-2000-28P Categories: , Tag:
Feature Specification
Basic switching RJ-45 Ethernet ports quantity 24
Combo SFP ports quantity 4
Networking standards IEEE 802.3ad, IEEE 802.3at
10G support N
Copper ethernet cabling technology 10BASE-T, 100BASE-TX, 1000BASE-T
Link aggregation Y
Auto MDI/MDI-X Y
Spanning tree protocol Y
Switching capacity 56 Gbit/s
Forwarding rate 41.7 Mpps
Packet buffer memory 4.1 MB
IGMP snooping Y
Security algorithms WPA, WPA2
Product colour Grey
LED indicators Y
Built-in processor Y
Processor frequency 500 MHz
Memory type DDR3-SDRAM
Internal memory 256 MB
Flash memory 32 MB
Mean time between failures (MTBF) 469262 h
Harmonized System (HS) code 85176990
Shipping (inner) case height 39.3 cm
Shipping (inner) case width 29.5 cm
Shipping (inner) case length 53.9 cm
Shipping (inner) case net weight 15.1 kg
Products per shipping (inner) case 3 pc(s)
Pallet gross weight (air) 403.5 kg
Master (outer) cases per pallet (air) 24 pc(s)
Products per pallet (air) 72 pc(s)
Pallet gross length 110 cm
Pallet gross width 120 cm
Pallet height (air) 131.4 cm
Pallet gross weight (sea) 660 kg
Master (outer) cases per pallet (sea) 40 pc(s)
Products per pallet (sea) 120 pc(s)
Pallet height (sea) 2.1 m
Shipping (inner) case gross weight 16 kg
AC input voltage 100 – 240 V
Power consumption (max) 263.9 W
Power over Ethernet (PoE) Y
Power over Ethernet (PoE) ports quantity 24
Power over Ethernet (PoE) power per port 30 W
Total Power over Ethernet (PoE) budget 193 W
Operating temperature (T-T) -5 – 50 °C
Storage temperature (T-T) -20 – 70 °C
Operating relative humidity (H-H) 0 – 95%
Storage relative humidity (H-H) 0 – 95%
Operating altitude 0 – 1500 m
Heat dissipation 900.36 BTU/h
Width 440 mm
Depth 250 mm
Height 44 mm
Weight 3.75 kg
Package width 365 mm
Package depth 521 mm
Package height 92 mm
Package weight 5.04 kg
