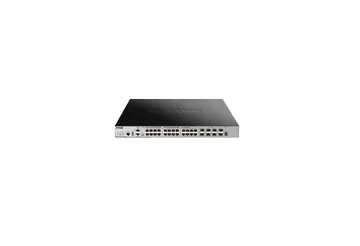

D-Link DGS-3630-28PC/SI network switch Managed L3 Gigabit Ethernet (10/100/1000) Power over Ethernet (PoE) Black, Grey


20x 1G RJ-45, 4x 1000BASE-T SFP, 4x 10G SFP+, 128 Gbps, PoE, VLAN, 441 x 380 x 44 mm

17,199.00 د.إ

Outperforming the competition The DGS-3630-28TC was benchmarked against a market leading competitor’s device. It matched or exceeded the competitor’s performance across all tests despite being significantly lower in price with a much lower power consumption. Versatile Management The DGS-3630 Series provides: – Network Assistant Utility – Industry-standard CLI – Intuitive web-based management interface Support for SNMP allows centralized management of a large number of devices and out-of-band management is available via a dedicated console port. A mini-USB console port allows the DGS-3630 Series to be managed without any extra connectors, and a USB Type A port can be used to store logs, configuration, and firmware images. High Availability and Flexibility Includes stacking technology, which allows multiple switches to be combined to form a single physical or virtual stack. Scale your network using just a stacking cable and without the need for stacking modules. Increased redundancy over multiple physical units, simplifies management and provides a single IP address to manage all members in the stack. Security, Performance & Availability Robust set of QoS features helps ensure that critical network services such as Voice over IP and video conferencing are given high priority through the network. The D-Link Safeguard Engine increases the switch’s reliability, serviceability, and availability by preventing malicious flooding traffic caused by worms or virus attacks.

SKU: DGS-3630-28PC/SI Categories: , Tag:
Feature Details
Switch type Managed
Switch layer L3
Quality of Service (QoS) support Yes
Web-based management Yes
Basic switching RJ-45 Ethernet ports quantity 20
Basic switching RJ-45 Ethernet ports type Gigabit Ethernet (10/100/1000)
Combo SFP ports quantity 4
SFP+ module slots quantity 4
Fiber optic connector SFP+
Console port RJ-45/Mini-USB
USB 2.0 ports quantity 1
Networking standards IEEE 802.1AX, IEEE 802.1D, IEEE 802.1Qbb, IEEE 802.1ag, IEEE 802.1p, IEEE 802.1s, IEEE 802.1w, IEEE 802.1x, IEEE 802.3ad, IEEE 802.3af, IEEE 802.3ah, IEEE 802.3at
10G support Yes
Copper ethernet cabling technology 10BASE-T, 100BASE-TX, 1000BASE-T
Port mirroring Yes
Full duplex Yes
IP routing Yes
Routing entries 16000
Flow control support Yes
Link aggregation Yes
Head-of-line (HOL) blocking Yes
Auto-negotiation Yes
Ethernet Ring Protection Switching (ERPS) Yes
VLAN support Yes
Virtual LAN features Private VLAN, Voice VLAN, Protocol-based VLAN, MAC address-based VLAN, Port-based VLAN
Number of VLANs 4000
MAC address table 68000 entries
Switching capacity 128 Gbit/s
Forwarding rate 95.24 Mpps
Store-and-forward Yes
Static route Yes
Number of static routes 512
Jumbo frames support Yes
Jumbo frames 12000
Packet buffer memory 4 MB
DHCP features DHCP server, DHCP client
Access Control List (ACL) Yes
IGMP snooping Yes
Security algorithms 802.1x RADIUS, SNMP, SNMPv3, SSH, SSL/TLS
SSH/SSL support Yes
Loop protection Yes
BPDU filtering/protection Yes
IP-MAC-Port binding Yes
Multicast support Yes
Multicast Listener Discovery (MLD) snooping MLD v1, MLD v2
Stackable Yes
Product colour Black, Grey
Number of fans 4 fan(s)
Safety cUL, CB, CE, CCC, BSMI
Electromagnetic compatibility CE, FCC A, C-Tick, VCCI, BSMI, CCC
Physical stacking (units) 9
Virtual stacking (units) 32
Built-in processor Yes
Harmonized System (HS) code 85176990
Shipping (inner) case height 57.2 cm
Shipping (inner) case width 36.2 cm
Shipping (inner) case length 57.9 cm
Shipping (inner) case net weight 12.9 kg
Products per shipping (inner) case 2 pc(s)
Pallet gross weight (air) 342.4 kg
Master (outer) cases per pallet (air) 18 pc(s)
Products per pallet (air) 36 pc(s)
Pallet gross length 110 cm
Pallet gross width 120 cm
Pallet height (air) 185.1 cm
Pallet gross weight (sea) 342.4 kg
Master (outer) cases per pallet (sea) 18 pc(s)
Products per pallet (sea) 36 pc(s)
Pallet height (sea) 185.1 cm
Shipping (inner) case gross weight 18 kg
Redundant power supply (RPS) support Yes
AC input voltage 100 – 240 V
AC input frequency 50 – 60 Hz
Power over Ethernet (PoE) Yes
Power over Ethernet plus (PoE+) ports quantity 24
Power over Ethernet (PoE) power per port 30 W
Total Power over Ethernet (PoE) budget 370 W
Operating temperature (T-T) -5 – 50 °C
Storage temperature (T-T) -40 – 70 °C
Operating relative humidity (H-H) 10 – 95%
Storage relative humidity (H-H) 5 – 95%
Width 441 mm
Depth 380 mm
Height 44 mm
Package width 538 mm
Package depth 560 mm
Package height 170 mm
Package weight 8.24 kg
