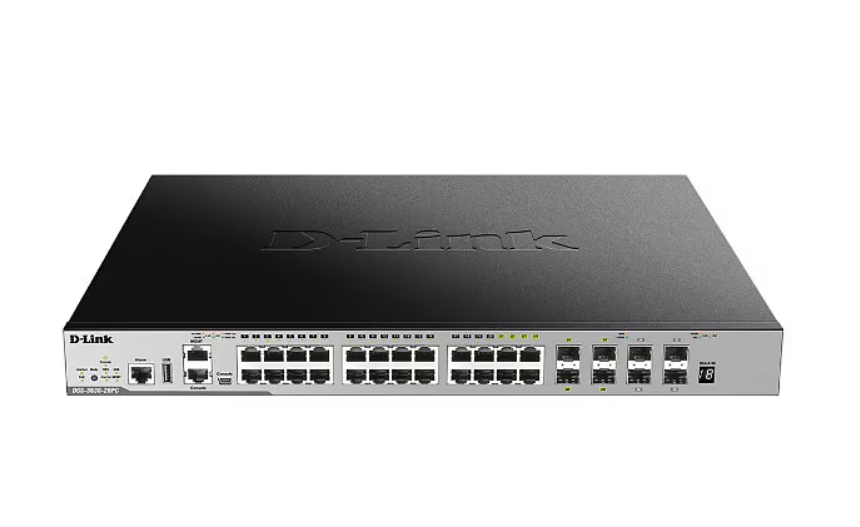

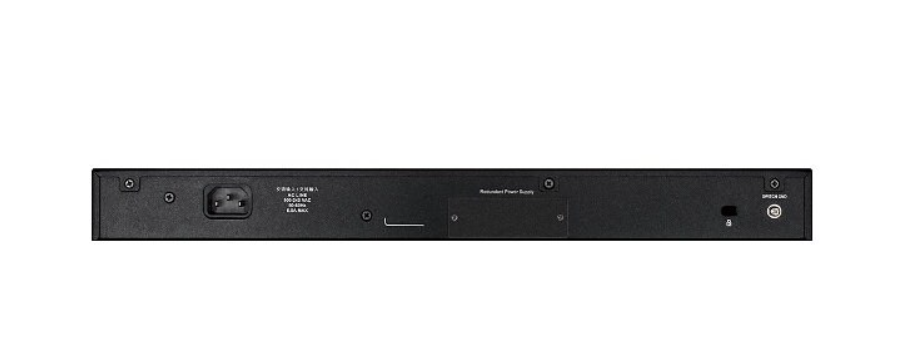

D-Link DGS 3630-28PC – switch – 20 ports – managed – rack-mountable

Add to Wishlist

Quick tech specs

  • L3
  • 20 x 10/100/1000 (PoE+) + 4 x combo Gigabit SFP + 4 x 10 Gigabit SFP+
  • PoE+ (370 W)
  • managed
  • rack-mountable

AED11,899.00

Add to Wishlist

Know your gear

The 28-Port Layer 3 PoE Switch from D-Link comes equipped with advanced security features, enabling the PoE-powered devices to be securely powered by the switch via a standard Ethernet cable. This stackable fully managed Gigabit PoE switch lends support to the IEEE 802.3af PoE and IEEE 802.3at PoE+ standards, rendering up to 30W of power per port.

Category: Tag:
Category Details
Overview
Brand D-Link
Product Line D-Link DGS
Model 3630-28PC
Manufacturer D-Link
Network & Communication
Advanced Switching Layer 3
Compliant Standards IEEE 802.1ab (LLDP), IEEE 802.1ag, IEEE 802.1AX, IEEE 802.1D, IEEE 802.1p, IEEE 802.1Q, IEEE 802.1Qbb, IEEE 802.1s, IEEE 802.1v, IEEE 802.1w, IEEE 802.1x, IEEE 802.3af, IEEE 802.3ah, IEEE 802.3at, IEEE 802.3x
Features 2 fans, 4MB packet buffer, 802.1x authentication, Access Control List (ACL) support, ARP support, Authentication, Authorization and Accounting (AAA), Bandwidth control, Bridge protocol data unit (BPDU), Broadcast Storm Control, Cable Diagnostics Function, DHCP client, DHCP server, DHCP snooping, DiffServ Code Point (DSCP) support, Digital Diagnostics Monitoring (DDM), DoS attack prevention, Duplicated Address Detection, Dying Gasp support, Dynamic ARP Inspection (DAI), Dynamic VLAN Support (GVRP), Energy Efficient Ethernet, Ethernet Ring Protection Switching (ERPS) v2, Head of Line Blocking Prevention, Host based access control, IGMP filtering, IGMP snooping, IP Precedence, IP source guard, Link Aggregation, LLDP support, Loop Guard, Loopback, Management Information Base (MIB) II, MLD filtering, MLD snooping, Multicast Storm Control, Network Timing Protocol (NTP), Packet filtering, PIM snooping, Port mirroring, Port Security, Precision Time Protocol (PTP), Priority-Based Flow Control (PFC), Quality of Service (QoS), Remote Switch Port Analyzer (RSPAN), Safeguard Engine, sFlow, Single Rate Three Color Marking (SRTCM), SNMP trap, Source-Specific Multicast (SSM), Strict Priority (SP), Switch Resource Management (SRM), TFTP client, Tunneling, Two Rate Three Color Marking (TRTCM), Type of Service (ToS), Unicast Storm Control, Virtual Route Forwarding-Lite (VRF-Lite), VLAN Double Tagging (Q-in-Q), VLAN mirroring, VLAN Trunking Protocol (VTP), Web-based Access Control (WAC), Weighted Round Robin (WRR) queuing
Form Factor Rack-mountable
Jumbo Frame Support 12KB
MAC Address Table Size 68K entries
Manageable Yes
Max Units In A Stack 9
PoE Budget 370 watt
Ports 20
Power Over Ethernet (PoE) PoE+
Product Type Switch
Remote Management CLI, HTTPS, RMON 1, RMON 2, RMON 3, RMON 9, SNMP 1, SNMP 2c, SNMP 3, Telnet, TFTP
Routing Protocol BGP-4, BGP-4+, Bidirectional Forwarding Detection (BFD), DVMRPv3, IGMP, IGMPv2, IGMPv3, MLD, MLDv2, MPLS, MSDP, OSPFv2, OSPFv3, PIM-DM, PIM-SM, PIM-SSM, Policy-based routing (PBR), RIP-1, RIP-2, RIPng, Static IPv4 routing, Static IPv6 routing, URPF, VRRP, VRRPv2, VRRPv3
Stackable Stackable
Status Indicators Status
Subcategory Network hubs and switches
Expansion Slots
QSFP Slots 10 Gigabit SFP+
Connectivity
Interface Provided 1 x alarm RJ-45, 1 x console (mini-USB), 1 x console RJ-45 management, 1 x management (Gigabit LAN) RJ-45, 1 x USB 2.0 Type A, 24 x 1000Base-T RJ-45 PoE+, 4 x 1000Base-X SFP, 4 x 10GBase-X SFP+
Port Quantity 20
Port Type 10/100/1000 (PoE+)
Ports Type (2nd) Combo Gigabit SFP
Power
Frequency 50/60 hertz
Power Consumption Operational 44.3 watt
Software
Software Type Standard Image (SI) Software
Technical Information
Encryption MD5, SSL, TLS 1.0, TLS 1.1
Humidity Range Storage 5 – 95%
Max Operating Temperature 122 degree Fahrenheit
Max Storage Temperature 158 degree Fahrenheit
Min Operating Temperature 23 degree Fahrenheit
Min Storage Temperature -40 degree Fahrenheit
MTBF 259,222.76 Hours
Operating Humidity 10 – 95%
Product Information
Authentication Method RADIUS, Secure Shell v.2 (SSH2), TACACS+
Capacity ACL entries (egress): 4000, ACL entries (ingress): 1000, Dynamic VLAN entries: 4000, IPv4 forwarding table entries: 32000, IPv4 routes (static): 512, IPv4 routing table entries: 16000, IPv6 forwarding table entries: 16000, IPv6 routes (static): 256, IPv6 routing table entries: 7000, QoS hardware queues per port: 8, Static ARP entries: 512, VLAN groups: 4000
Packaged Quantity 1
Performance Forwarding performance: 95.24 Mpps, Stacking bandwidth: 80 Gbps, Switching capacity: 128 Gbps
Ports (2nd) Quantity 4
Ports (3rd) Quantity 4
Dimensions & Weight
Height 1.7 inch
Weight 12.96 lbs
Width 17.4 inch
Depth 15 inch
Physical Characteristics
Color Category Black, Gray
Certifications & Listings
Compliant Standards BSMI, CB, CCC, C-Tick, cUL, FCC Class A certified, ITU Y.1731, VCCI
ENERGY STAR Certified No
EPEAT Compliant No
TCO Certified No
